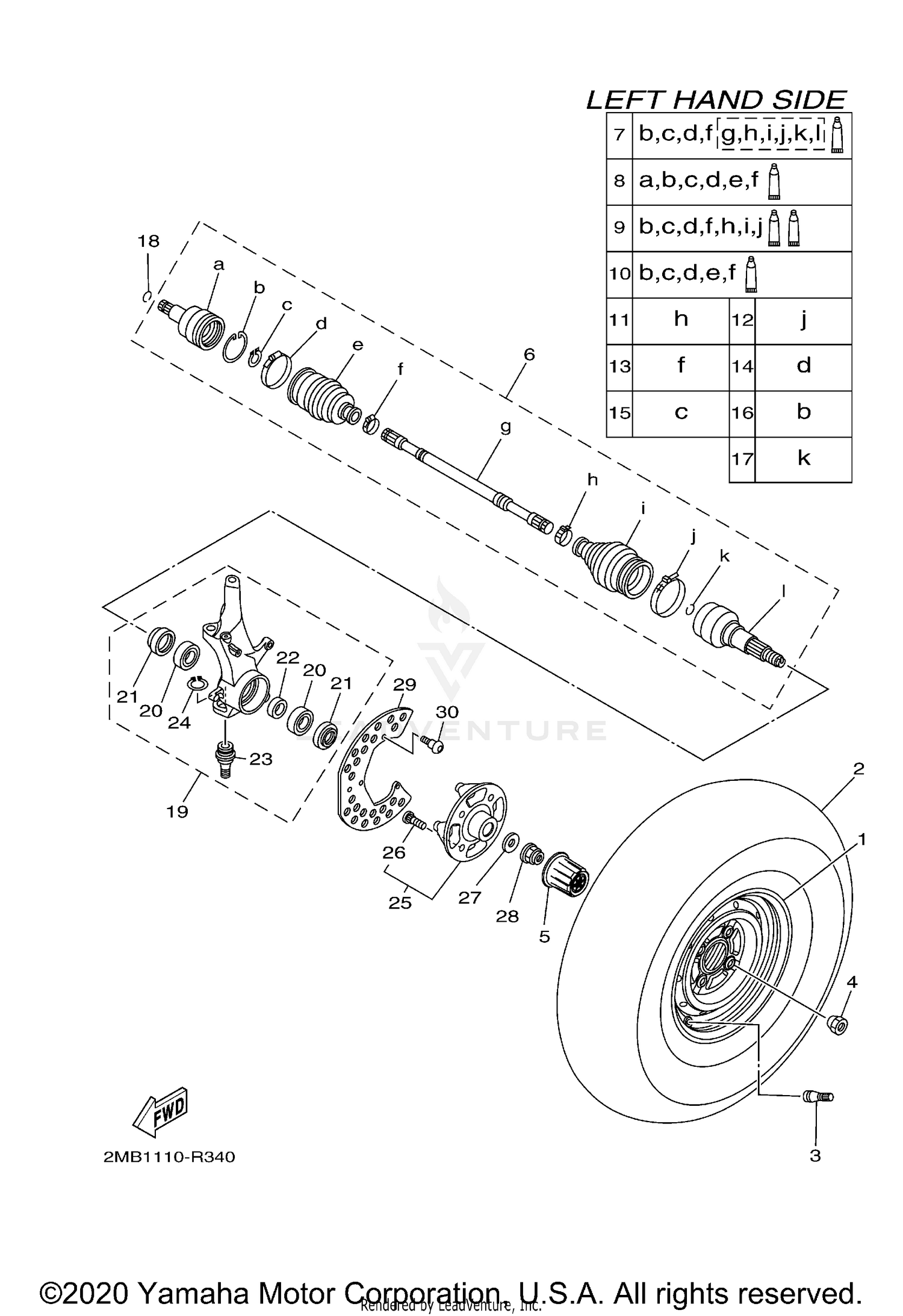

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
1XD-F5180-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (25X8.00-12 MU09 2PR TL)
94108-12820-00
|
$362.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-12262-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
2MB-F512A-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRIVE SHAFT ASSY
1XD-F518F-00-00
Superseded by 1XD-F518F-01-00
|
$254.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT SET
1XD-F530T-10-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOUBLE OFF SET JOINT
1XD-F530V-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT SET (BALL JOINT)
1XD-F530X-10-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT SET(DOUBLE OFFSET JOINT
1XD-F530Y-10-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT BAND(DOUBLE OFFSET JOIN
1XD-F511H-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT BAND (BALL JOINT)
1XD-F511G-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT BAND (SMALL)
5UG-F510U-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT BAND (SMALL)
1XD-F512G-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SNAP RING
3B4-2512J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
3B4-25182-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
5UG-F512H-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP
93450-22119-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
STEERING KNUCKLE ASSY (LEFT)
1XD-F3501-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-20725-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93106-50002-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-35007-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL JOINT 2
1XD-23579-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HUB ASSY 2
2MB-F510D-02-00
Superseded by 2MB-F510D-04-00
|
$100.99 | ||
|
Unavailable |
|||
|
#26
BOLT, SERRATION
90114-12005-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-25023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-24006-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RING, WHEEL 1
1XD-F514A-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
