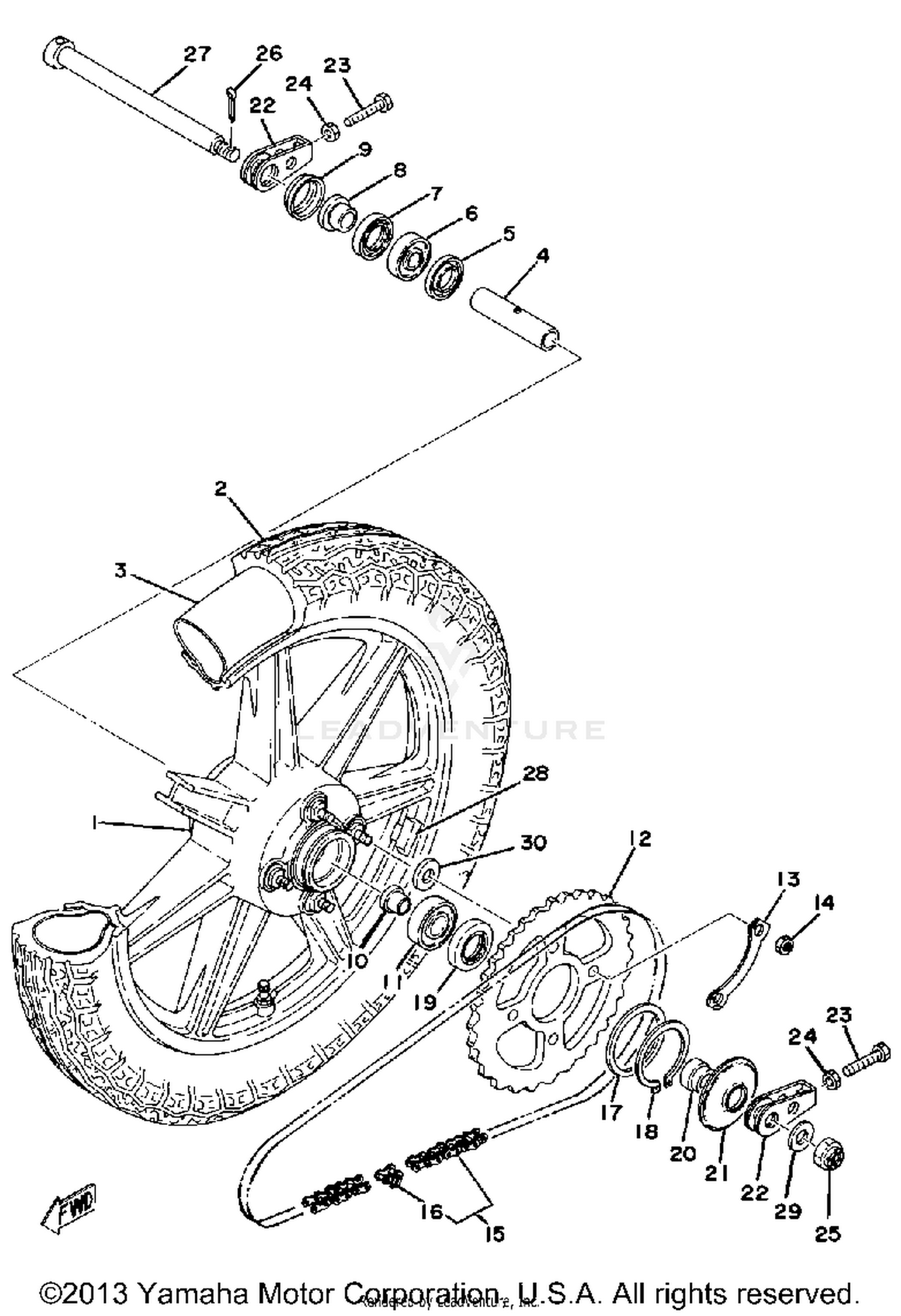

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
1J3-W2533-20-00
|
$316.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
1J3-W2533-30-00
|
|||
|
Unavailable |
|||
|
#2
TIRE 400H18 Y987 YOKO
94140-18340-00
|
$57.99 | ||
|
Unavailable |
|||
|
#3
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, BEARING
1J3-25317-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#5
FLANGE, SPACER
146-25315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
OIL SEAL
93102-28022-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-17536-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
COVER, HUB DUST
1J3-25118-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#10
COLLAR, WHEEL
1A1-25377-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVN 42T
1J3-25442-20-00
|
$44.99 | ||
|
Unavailable |
|||
|
#13
WASHER
1J3-25412-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN 50HDS-106L (94575-30106)
94580-05106-00
|
$127.99 | ||
|
Unavailable |
|||
|
#16
CHAIN JOINT
94680-05011-00
|
$3.60 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-66585-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
CIRCLIP, S-TYPE
93410-65040-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-28023-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-17551-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
COVER, HUB DUST
1L9-25367-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#22
PULLER, CHAIN 2
168-25389-00-00
Superseded by 12R-25389-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#23
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, HEXAGON
90170-08158-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
AXLE, WHEEL
1J3-25381-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
UNAVAILABLE IN PRICE BOOK
1A1-25398-00-
|
|||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#29
WASHER, PLAIN
92990-14200-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-20565-00
|
$2.95 | ||
|
Unavailable |
|||
