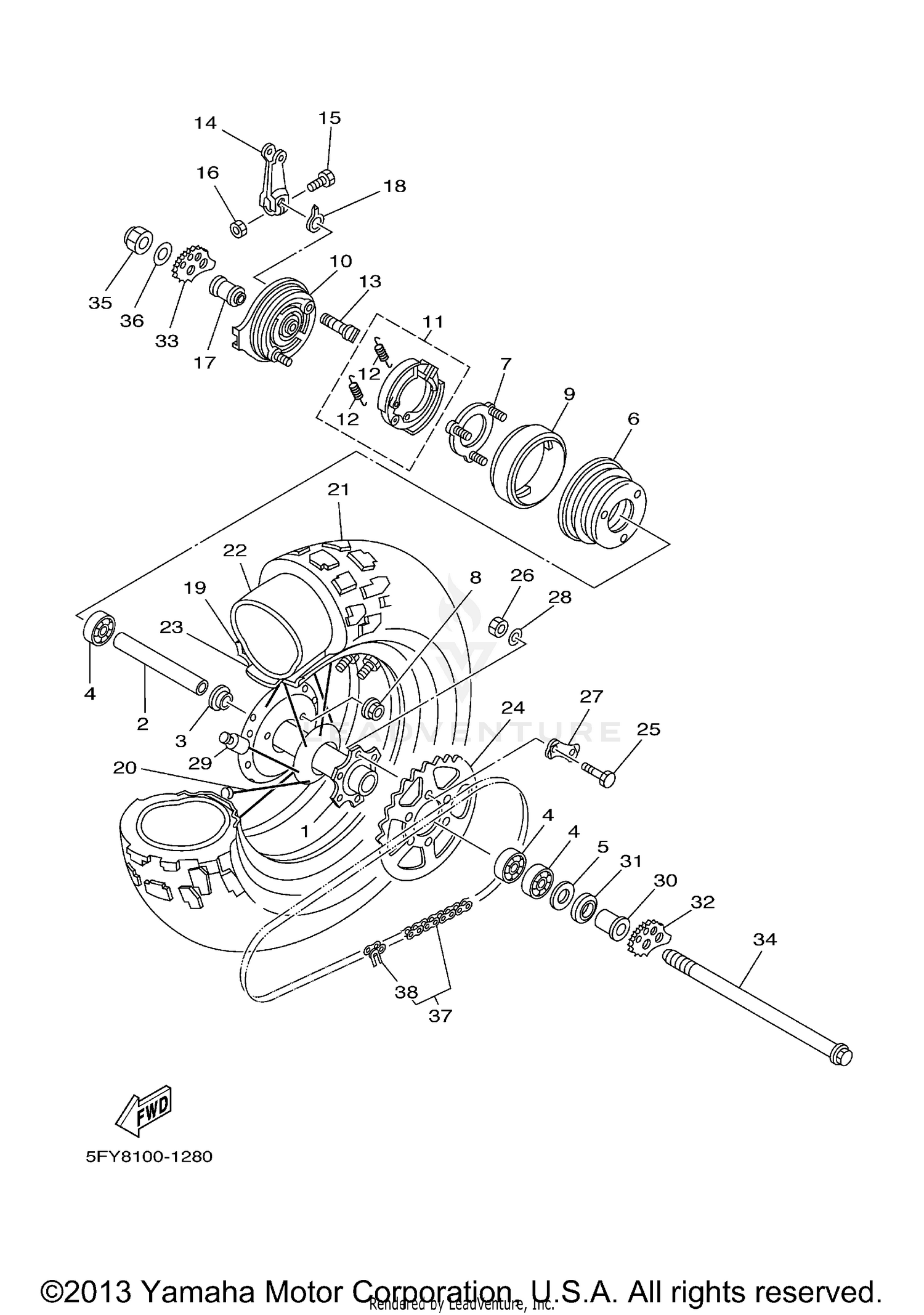

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
2JX-25311-00-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-17305-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
152-25115-00-00
Superseded by 146-25315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20348-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (FPJ 25-44-8 TS)
93102-25311-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, BRAKE
5V7-2511E-00-35
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING 1
54G-25185-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-08410-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RING 2
2JX-25336-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, BRAKE SHOE
2JX-25321-02-35
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
4KN-W253E-11-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-15260-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, CAMSHAFT 1
2N3-25155-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-06278-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-171T1-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, INDICATOR
2JX-2533A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RIM (MT4.50-14 M/C)
94445-14605-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPOKE SET, REAR
2JX-25304-21-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE (180/80-14 M/C 78P TW34)
94118-145U1-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE (180/80-14 M/C TR4)
94218-14251-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, RIM (4.50-14)
94318-14149-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVEN (50T)
15A-25450-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-08618-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90215-08160-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-086P8-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-171T2-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, HUB DUST
36R-25367-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PULLER, CHAIN 1
3Y1-25388-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLER, CHAIN 2
3Y1-25389-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
AXLE, WHEEL
2JX-25381-10-00
Superseded by 2JX-25381-11-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-164H4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CHAIN
94580-88122-00
Superseded by 9Y582-51121-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
JOINT, CHAIN
94680-88001-00
Superseded by 94682-51001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
