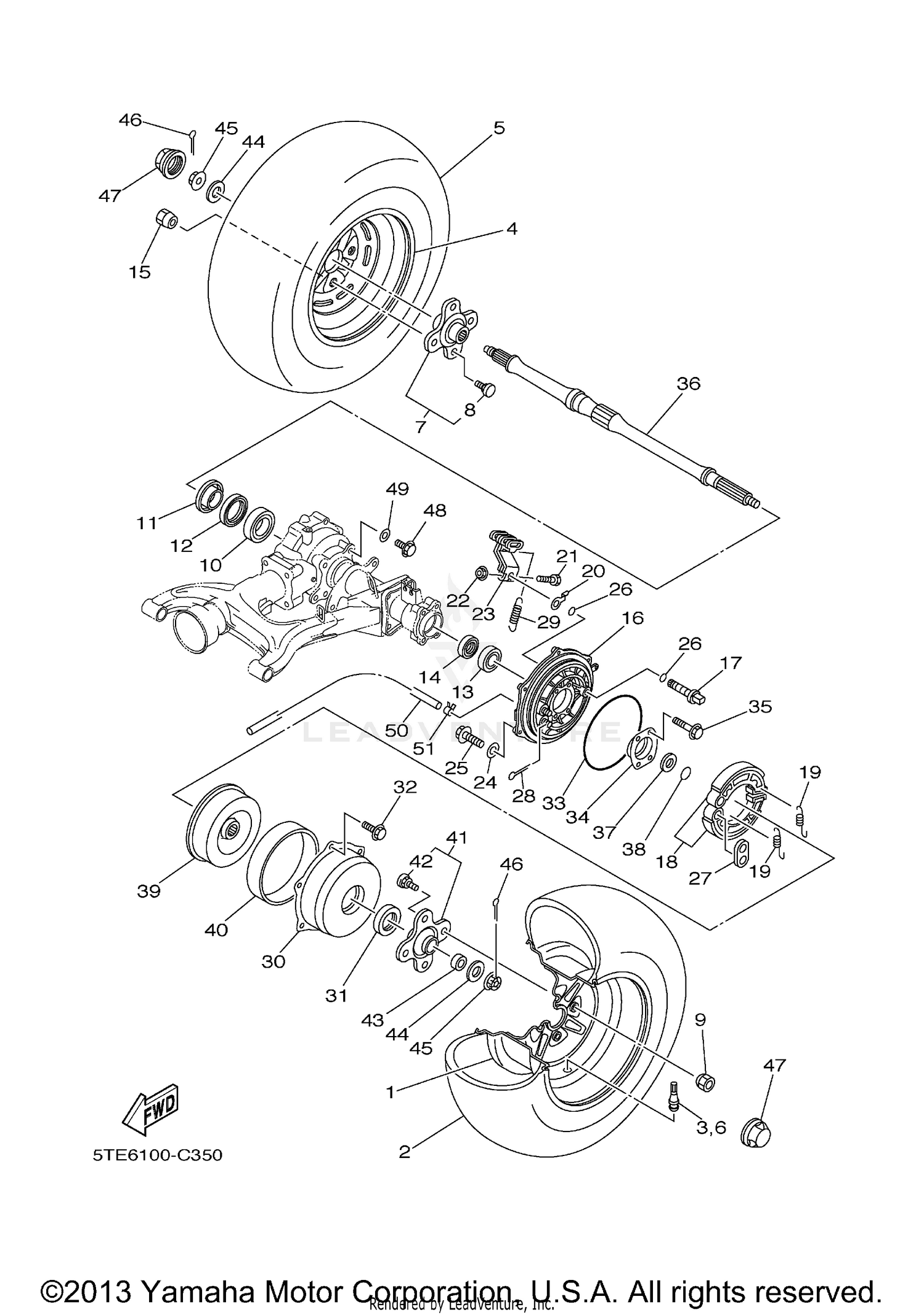

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
5ND-F5390-11-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
AT25X10-12 M912Y
94110-12800-00
Superseded by 94110-12810-00
|
$175.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR WHEEL COMP.
5ND-F5390-11-00
|
$147.99 | ||
|
Unavailable |
|||
|
#5
AT25X10-12 M912Y
94110-12800-00
Superseded by 94110-12810-00
|
$175.99 | ||
|
Unavailable |
|||
|
#6
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
COLLAR, WHEEL
5ND-F5383-10-00
Superseded by 5ND-F5383-11-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR, WHEEL
5ND-F5383-00-00
Superseded by 5ND-F5383-11-00
|
$71.99 | ||
|
Unavailable |
|||
|
#8
BOLT
90114-10804-00
Superseded by 1P0-F5411-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-10540-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-008Y0-00
Superseded by 93306-008Y1-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, HUB DUST
4SH-25367-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93106-47040-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-278Y0-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93101-35097-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-10540-00
|
$4.95 | ||
|
Unavailable |
|||
|
#16
PLATE, BRAKE SHOE
5VH-F5321-00-00
Superseded by 5VH-F5321-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAMSHAFT
5VH-F5351-00-00
Superseded by 5VH-F5351-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE SHOE SET
5VH-WF536-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,RETURN
5VH-F5333-00-00
Superseded by 5VH-F5333-01-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, INDICATOR
5VH-F533A-00-00
Superseded by 5VH-F533A-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
5VH-F5833-00-00
Superseded by 90101-06824-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U FLANGE
9560L-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
LEVER, CAMSHAFT
5VH-F5355-00-00
Superseded by 5VH-F5355-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
5VH-F5898-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, CALIPER
5VH-F5818-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, CAMSHAFT
5VH-F5359-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE 1
5VH-F539F-00-00
Superseded by 5VH-F539F-01-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SPRING, TENSION
90506-16482-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, PLATE
5FU-F5327-00-00
Superseded by 5FU-F5327-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, HUB DUST
5FU-F5319-00-00
Superseded by 5FU-F5319-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
9582P-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, DUST
5FU-F537Y-00-00
Superseded by 5FU-F537Y-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
RETAINER
4XE-G6513-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
90105-08892-00
Superseded by 90105-088A4-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
AXLE, WHEEL RR.
5TE-F5381-00-00
Superseded by 5TE-F5381-20-00
|
$241.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-284T0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
DRUM, BRAKE
5FU-F531E-10-00
Superseded by 5FU-F5310-10-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
DRUM, BRAKE
5FU-F5336-00-00
Superseded by 5FU-F5310-10-00
|
$246.99 | ||
|
Unavailable |
|||
|
#41
COLLAR, WHEEL
5FU-F5377-10-00
Superseded by 5FU-F5377-11-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR, WHEEL
5FU-F5377-00-00
Superseded by 5FU-F5377-11-00
|
$62.99 | ||
|
Unavailable |
|||
|
#42
BOLT
90114-10804-00
Superseded by 1P0-F5411-00-00
|
$2.30 | ||
|
Unavailable |
|||
|
#43
WASHER, WHEEL
5FU-F5384-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-168R1-00
Superseded by 90201-16804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, CASTLE
90171-16001-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
CAP, WHEEL
5GT-2512A-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
90105-10751-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
HOSE (L1150)
90445-07807-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
90467-07093-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
