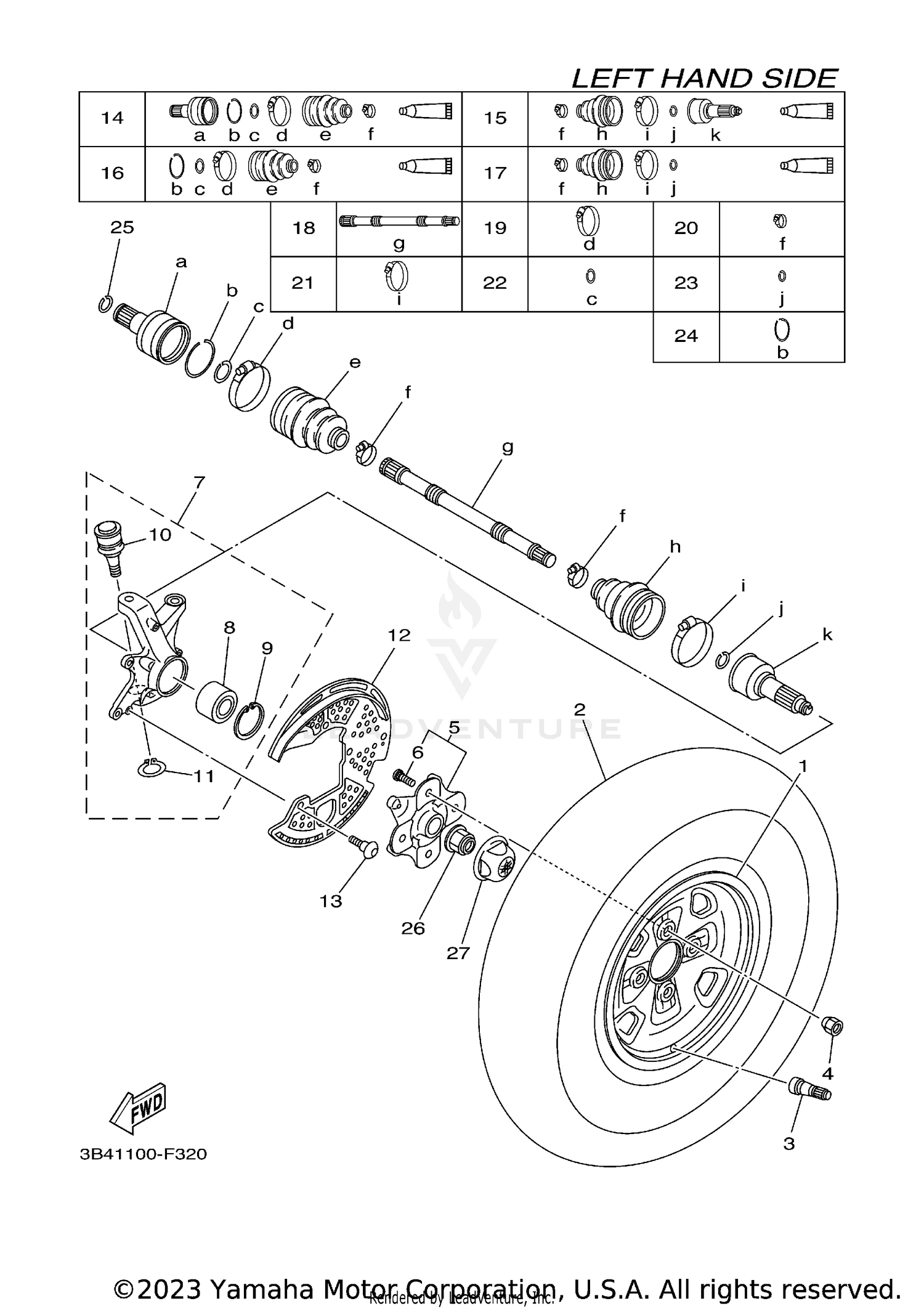

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
3B4-25180-00-00
Superseded by 1HP-F5180-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT25X8-12 MU19**TL)
94108-12012-00
Superseded by 94108-12817-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NUT
90179-10020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB ASSY 2
3B4-25111-10-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#6
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
STEERING KNUCKLE ASSY (LEFT)
3B4-23501-00-00
Superseded by 3B4-23501-01-00
|
$547.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93305-00602-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL JOINT 2
3B4-23579-00-00
Superseded by 3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RING, WHEEL 1
3B4-2514A-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, BINDING
90154-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DOUBLE OFF SET JOINT
3B4-2510J-00-00
|
$382.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL JOINT SET
3B4-2510F-00-00
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT SET (DOUBLE OFFSET JOINT)
3B4-2510H-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT SET (BALL JOINT)
3B4-2510G-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT
3B4-2518E-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT BAND(DOUBLE OFFSET JOINT)
3B4-2511H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT BAND (SMALL)
3B4-2512G-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT BAND (BALL JOINT)
3B4-2511G-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SNAP RING
3B4-2512J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
3B4-2512H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
3B4-25182-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93450-22119-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT
90179-20016-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, WHEEL
3B4-2512A-00-00
Superseded by 1HP-F512A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
