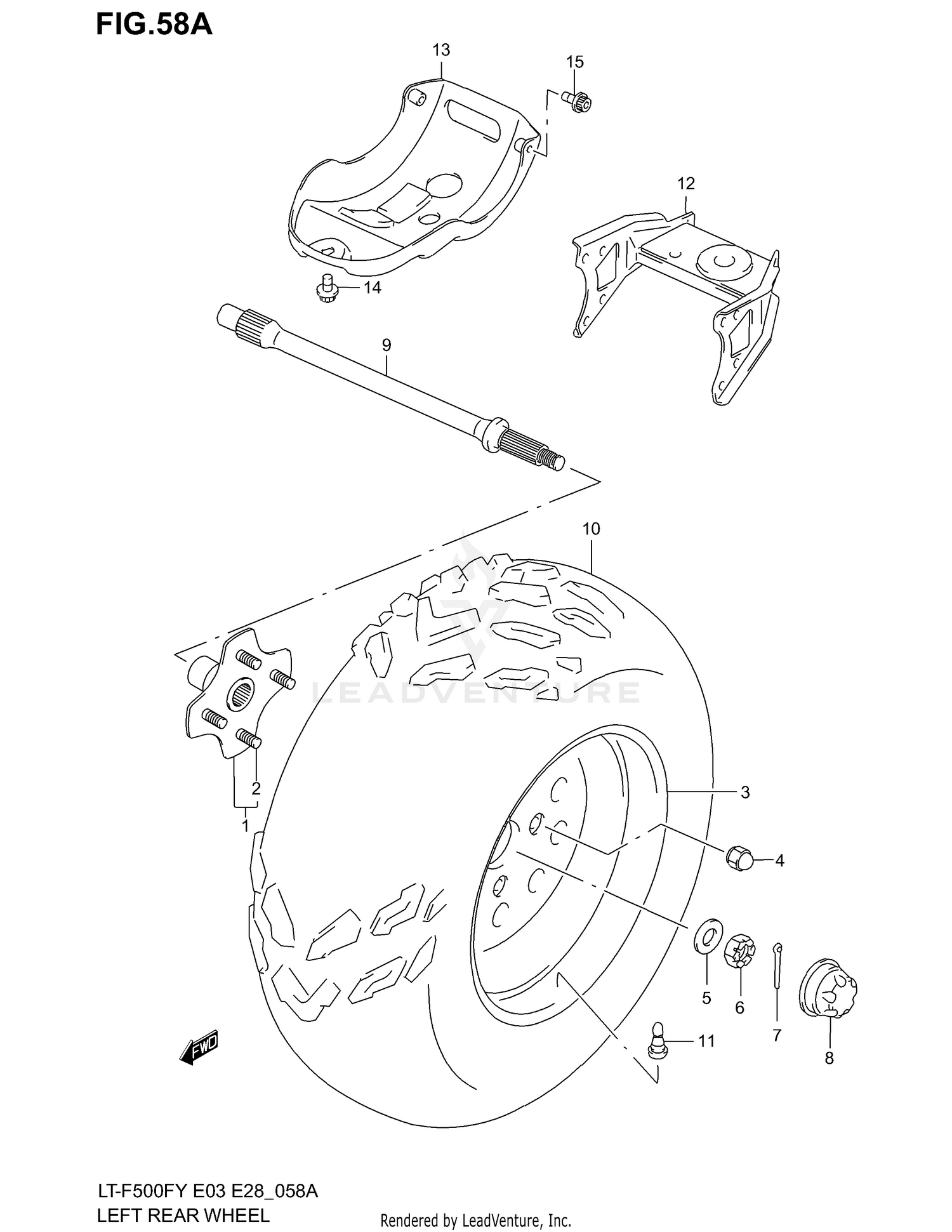

Left Rear Wheel (model Y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL LH
64110-09F20
Superseded by 64110-09F21
|
$252.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X30)
09119-10049
Superseded by 09119-10049-XC0
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, REAR WHEEL (12X8.0AT) (SILVER)
65310-09F01-12Z
Superseded by 65310-09F11-12Z
|
$478.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09159-10012
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09164-18004
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, HUB
09141-18008
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
04111-40408
Superseded by 04111-4040A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,WHEEL CENTER
54725-09F00
Superseded by 54725-09F01
|
$12.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
AXLE, REAR LH
64712-09F00
|
$205.63 | ||
|
Unavailable |
|||
|
#10
TIRE, REAR (AT25X10-12) (DUNLOP)
65110-09F00
|
$244.92 | ||
|
Unavailable |
|||
|
#11
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE, TRAILER TOW
95210-09F00
|
$79.20 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, FINAL CASE
61390-09F10
|
$63.47 | ||
|
Unavailable |
|||
|
#14
BOLT
07120-08123
Superseded by 07120-0812B
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
07120-08163
Superseded by 07120-0816A
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
