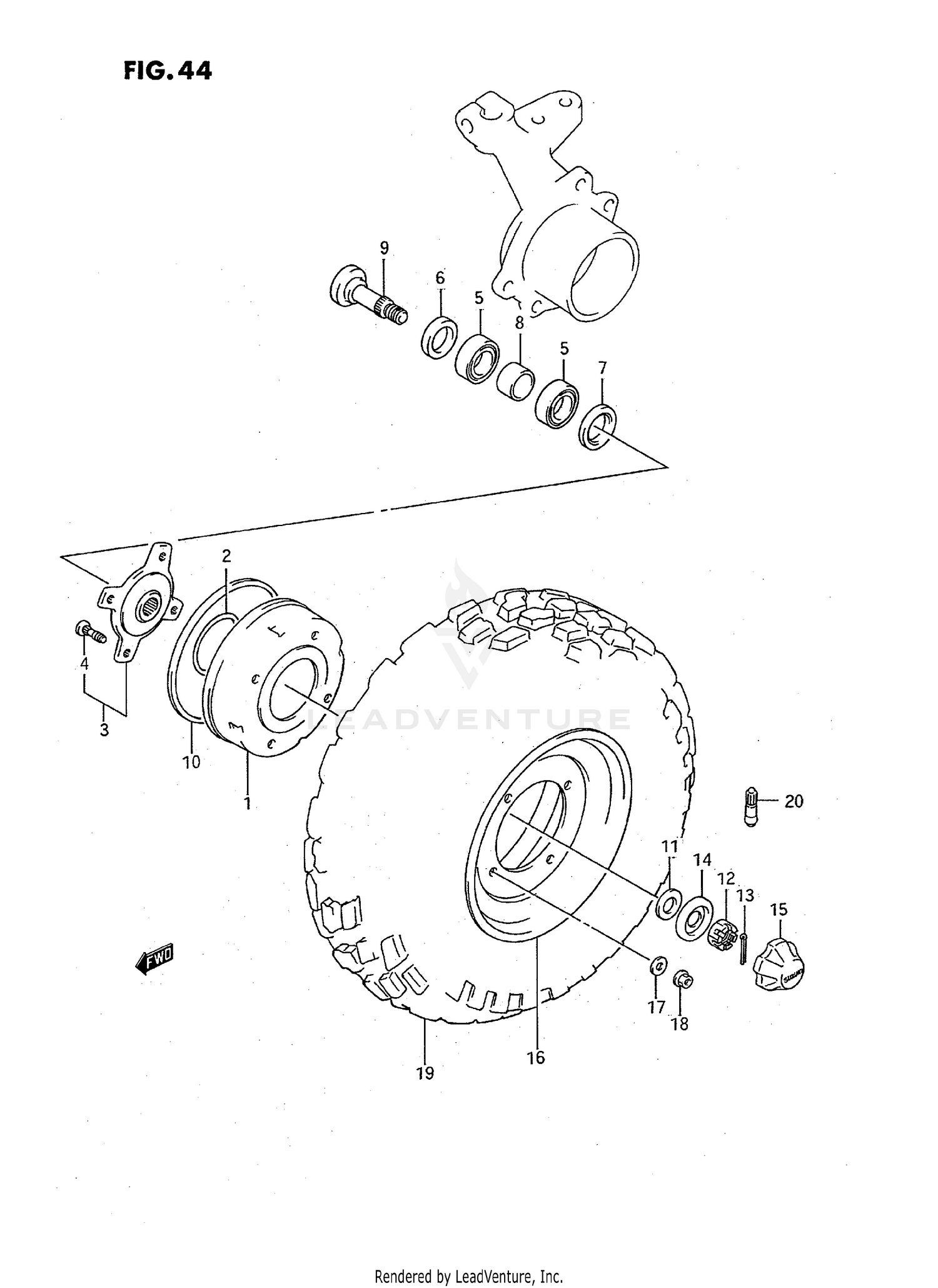

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM, BRAKE
54120-19B00
|
$271.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
DRUM, BRAKE
54120-19B10
|
$370.14 | ||
|
Unavailable |
|||
|
#2
O RING (D:2.4,ID:79.8)
09280-80001
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
HUB, FRONT
54110-19B00
Superseded by 54110-19B01
|
$165.46 | ||
|
Unavailable |
|||
|
#3
HUB, FRONT
54110-19B01
|
$165.46 | ||
|
Unavailable |
|||
|
#4
BOLT
09119-10045
Superseded by 09119-10045-XC0
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, FRONT HUB
08123-60067
|
$36.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, INNER
09283-38014
Superseded by 09283-38012
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, INNER
09283-38012
|
$18.49 | ||
|
Unavailable |
|||
|
#7
DUST SEAL, OUTER
09283-38013
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, FRONT HUB
54731-19B00
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE,FRONT
54711-20B01
Superseded by 54711-20B0V
|
$78.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, DRUM BRAKE
54124-19B00
|
$48.64 | ||
|
Unavailable |
|||
|
#10
DUST SEAL, DRUM BRAKE
54124-19B10
|
$80.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, HUB
09164-18004
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HUB
09141-18004
Superseded by 09141-18008
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HUB
09141-18008
|
$10.70 | ||
|
Unavailable |
|||
|
#13
PIN, COTTER
04111-40356
Superseded by 04111-4040A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER
04111-40408
Superseded by 04111-4040A
|
$1.70 | ||
|
Unavailable |
|||
|
#14
HOLDER, CENTER CAP
64726-19B00
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, WHEEL CENTER
54725-19B00
Superseded by 54725-39D00
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, WHEEL CENTER
54725-39D00
|
$19.61 | ||
|
Unavailable |
|||
|
#16
RIM, FRONT WHEEL (SILVER)
55310-20B00-13L
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,10.5X22X
09160-10119
Superseded by 09160-10143
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, WHEEL SET
08316-16108
Superseded by 08316-10107
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-10103
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
TIRE, T/L FRONT (AT22X8-10)
55100-20B50
Superseded by 55100-20B51
|
$160.11 | ||
|
Unavailable |
|||
|
#19
TIRE, T/L FRONT (AT22X8-10)
55100-20B51
|
$160.11 | ||
|
Unavailable |
|||
|
#20
VALVE ASSY, WHEEL RIM
43130-75150
Superseded by 43130-78030
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE ASSY, WHEEL RIM
43130-78030
|
$12.29 | ||
|
Unavailable |
|||
