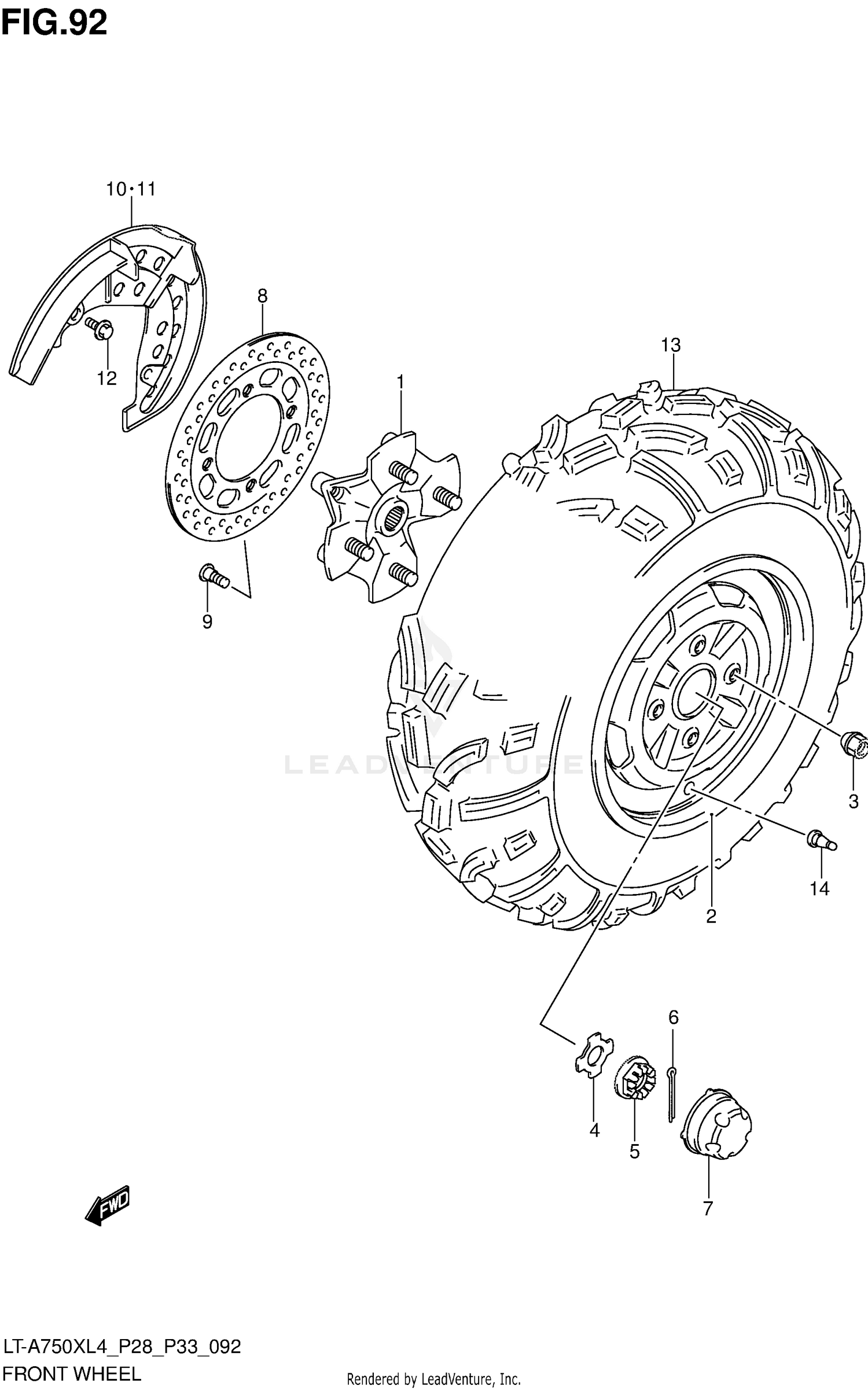

Front Wheel (lt-a750xzl4 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,FRONT WHEEL
54110-31G00
Superseded by 54110-31G10
|
$152.80 | ||
|
Unavailable |
|||
|
#2
RIM, FRONT WHEEL (12X6.0AT) (BLACK)
55310-31G50-291
|
$393.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09159-10114
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, HUB
64723-09F00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09141-18010
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
COTTER PIN
04111-4035A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,WHEEL CENTER
54725-09F01
|
$12.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DISC, FRONT BRAKE
59211-31G10
|
$69.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (8X21)
09106-08160
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FRONT DISC RH
59231-31G10
Superseded by 59231-31G11
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FRONT DISC LH
59431-31G10
Superseded by 59431-31G11
|
$24.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X12)
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE, FRONT (AT25X8-12)
55110-31G20
|
$207.62 | ||
|
Unavailable |
|||
|
#14
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
