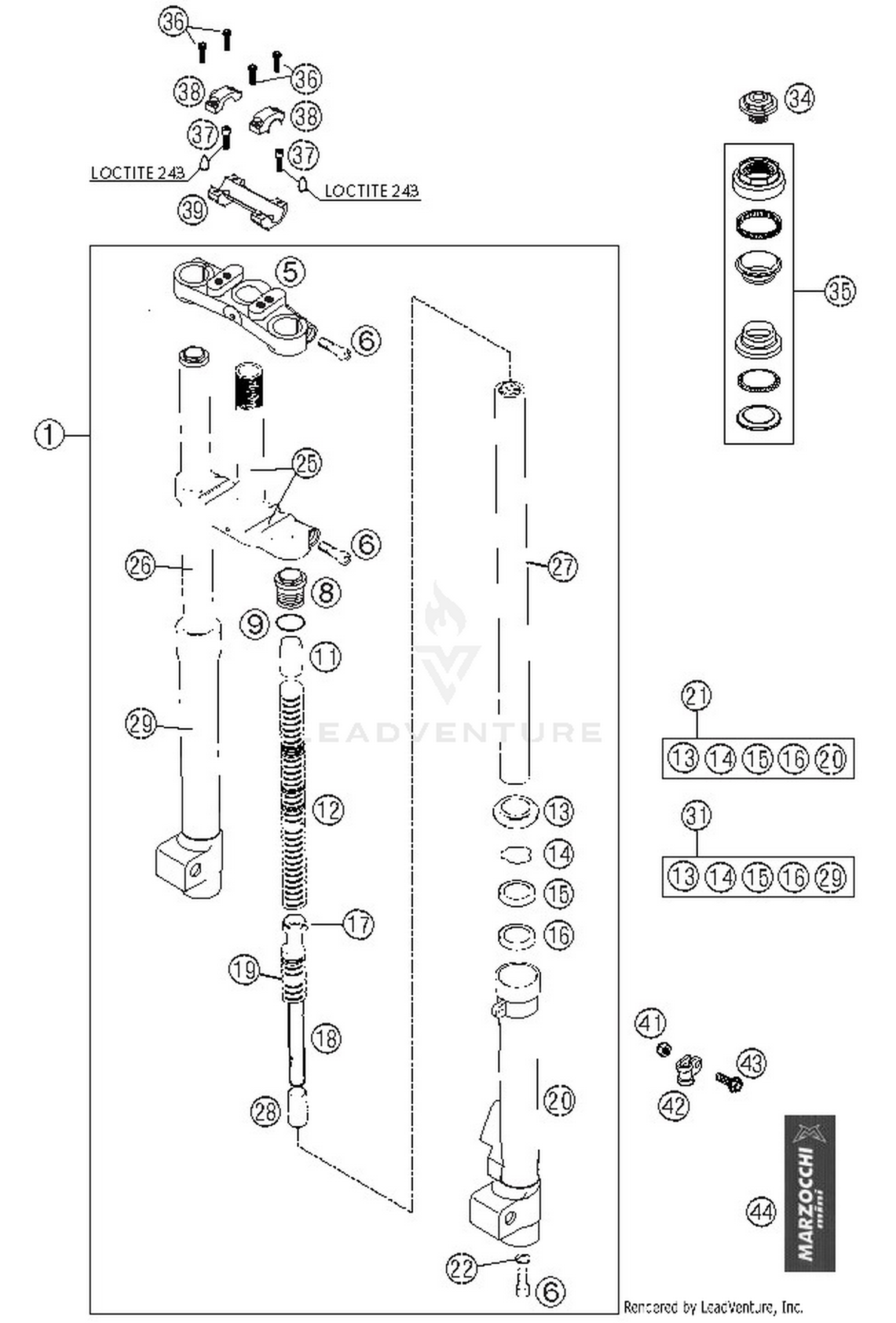

Front Fork Marzocchi Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK CPL. SEN. ADV. MARZ.
45101000344
|
|||
|
Unavailable |
|||
|
#5
TOP FORK PLATE
7501476A
|
|||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN0912-M 8X30
0912080303
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW CAP
7504212AC
|
|||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
7528010
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PRE LOAD BUSH 25X2,5X100
7518076
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING 2N/MM
75141169
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING 2,5N/MM
75141214
|
$14.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL
7533297
|
$11.29 | ||
|
Unavailable |
|||
|
#14
STOP RING
7523264
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL 32/42/6,5-9,5
7528230
|
$17.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER D42X32,5X1,5
7522166AA
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON RING D32
7524157
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON ROD REBOUND SEN. 01
78031047
|
$37.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON ROD COMPRESSION SEN. COMPRESSION DAMP.- RIGHT SIDE
78031045
|
|||
|
Unavailable |
|||
|
#19
REBOUND SPRING
75141015
|
|||
|
Unavailable |
|||
|
#20
SLIDER LEFT SIDE 2002
75031538A/A
|
$191.17 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLIDER LEFT SIDE CPL.
75031538A/A/R
|
|||
|
Available to order. Add to View Price |
|||
|
#22
WASHER 14X8X1,5
7522225
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOT. FORK PLATE CPL. SEN. 01
77051095
|
$202.26 | ||
|
Available to order. Add to View Price |
|||
|
#26
FORK TUBE R/S SENIOR 02
7708249/R
|
$208.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
FORK TUBE L/S SENIOR 02
7708250/R
|
$191.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
FOOT BUFFER
7512068
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#29
SLIDER RIGHT SIDE
75031366A/A
|
|||
|
Unavailable |
|||
|
#31
SLIDER CPL. RIGHT SIDE
75031366A/K/R
|
|||
|
Available to order. Add to View Price |
|||
|
#34
STEER.HEAD SCREW M20X1,5 WS=27
50301036000
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#36
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP D=22MM 2001
50301038000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT D=22MM 2001
45101039000
|
$54.17 | ||
|
Available to order. Add to View Price |
|||
|
#41
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BRAKE CABLE CLAMP RSGU 9/12
45001070000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
STICKER LEFT SIDE MARZOCCHI
7547325
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#
STICKER RIGHT SIDE MARZOCCHI
7547331
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
