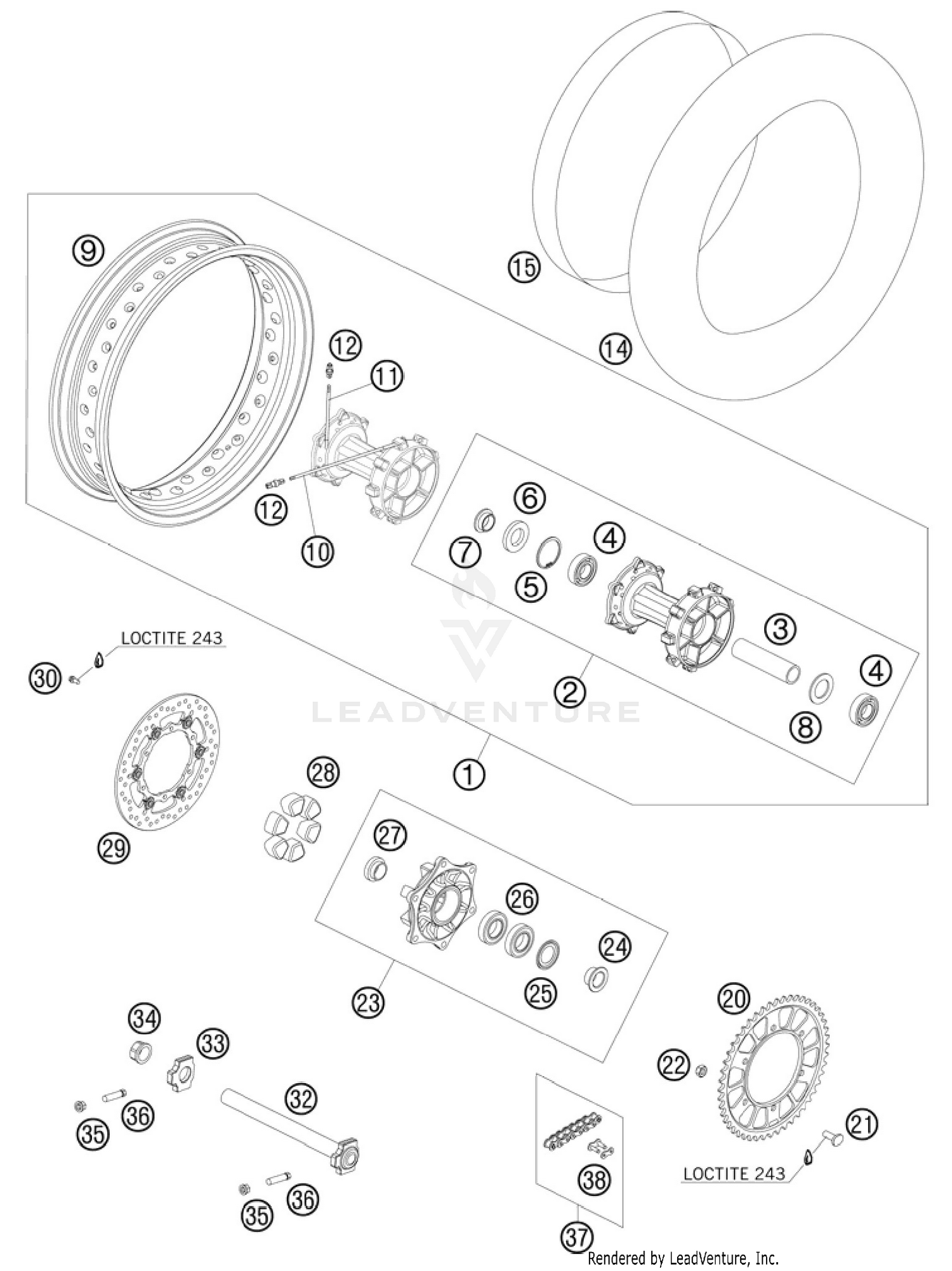

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL CPL. 4,25X18''SW Black
6011000124430
Superseded by 6011000134430
|
$1,271.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR HUB CPL.
6011001004433
Superseded by 6031001014433
|
$466.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEAR. SPACERTUBE L=124,8MM 03
60010011000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-52X2
0472052200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SEAL RING 30X52X7
0760305271
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER BUSH. REAR WHEEL R/S 06
60110013000
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER RING 03
60010015000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
Rear rim 4,25x18" black
6001007020030
Superseded by 6001017000030
|
$524.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE M5X213 19 DEG 03
60010171000
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOKE M5X194 10 DEG 03
60010071000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spoke nipple Quadrax M5
58309072100
Superseded by 60310072200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE 110/100C-18
50310075100
|
$35.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM TAPE 18'' 50/2 03
60010073000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 42-T 03
60010051042
|
$97.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 45-T 03
60010051045
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPROCKET SCREW M10X1,25 03
60010052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HEXAG.NUT DIN 980V M10X1,25 SL
0980101253
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET SUPPORT CPL. BLACK
6011005004433
|
$227.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER BUSH. SPROCKET SUPP. 06
60110012000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
NILOS RING 6006AV
60110016000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL BEARING 6006 DDU2CG23S6NM
0625060060
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER DAMPING BLOCK '91
54610459000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRAKE DISK REAR D=240MM
6011006000033
|
$267.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WHEEL SPINDLE REAR CPL.
60010081144
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN TENSIONER R/S LC8 03
60010084000
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR NUT WH. SPINDLE REAR 03
60010086000
|
$17.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
screw M10x1.25x50 WS10
50304040100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
CHAIN 525 INCL. MASTER LINK
60010365118
|
$195.13 | ||
|
Available to order. Add to View Price |
|||
|
#38
MASTER LINK FOR CHAIN 525 07
60010266000
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
