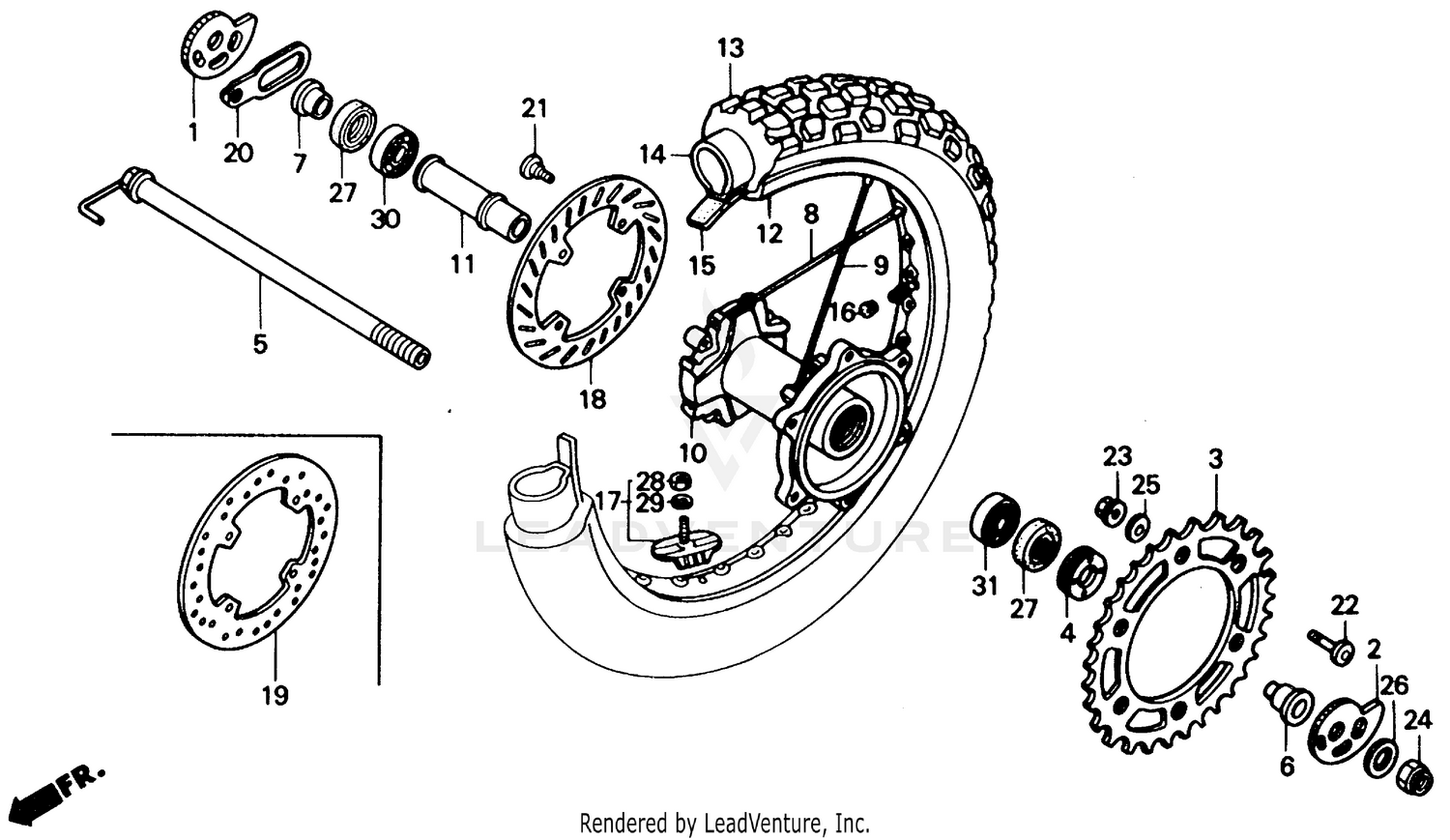

Rear Wheel 90-91 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER, R. CHAIN
40544-MN1-670
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
ADJUSTER, L. CHAIN
40545-MN1-670
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (48T)
41201-KZ1-670
Superseded by 41201-KCV-670
|
$160.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, BEARING
41231-429-000
|
$37.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, RR. WHEEL
42301-KZ1-600
|
$67.32 | ||
|
Unavailable |
|||
|
#5
AXLE, RR. WHEEL
42301-MN1-670
Superseded by 42301-KZ1-600
|
$67.32 | ||
|
Unavailable |
|||
|
#6
COLLAR, RR. WHEEL (NOT AVAILABLE)
42312-KZ1-670
|
$16.57 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. WHEEL SIDE
42313-KZ1-670
|
$20.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET A, RR. (A10X223)
426A0-KZ1-670
Superseded by 42610-KZ1-405
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET A, RR. (A10X223)
42610-KZ1-405
|
$4.93 | ||
|
Unavailable |
|||
|
#9
SPOKE SET B, RR. (A10X220)
426B0-KZ1-670
Superseded by 42611-KZ1-405
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET B, RR. (A10X220)
42611-KZ1-405
|
$6.44 | ||
|
Unavailable |
|||
|
#10
HUB, RR. WHEEL (NOT AVAILABLE)
42601-KZ1-670
|
$427.49 | ||
|
Unavailable |
|||
|
#11
COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)
42620-KZ1-670
|
$19.65 | ||
|
Unavailable |
|||
|
#12
RIM, RR. WHEEL
42701-KZ1-671
|
$266.16 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (110/100-18) (64M) (INOUE)
42711-KT1-671
|
$72.87 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
FLAP, TIRE (1.85X18) (INOUE)
42713-446-631
|
$6.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD (1.85)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
DISK, RR. BRAKE
43351-KZ1-770
|
$199.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER, RR. AXLE
52162-KF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, DISK (8X22)
90105-MK5-010
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SPROCKET FIXING
90125-MN1-671
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, AXLE (16MM)
90305-KE8-003
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10MM)
90465-MN1-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (16MM)
90559-469-000
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (25X40X7)
91216-729-921
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (25X40X7)
91252-428-000
Superseded by 91216-729-921
|
$9.36 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6203U)
96140-62030-10
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6204U)
96140-62040-10
|
$26.45 | ||
|
Available to order. Add to View Price |
|||
