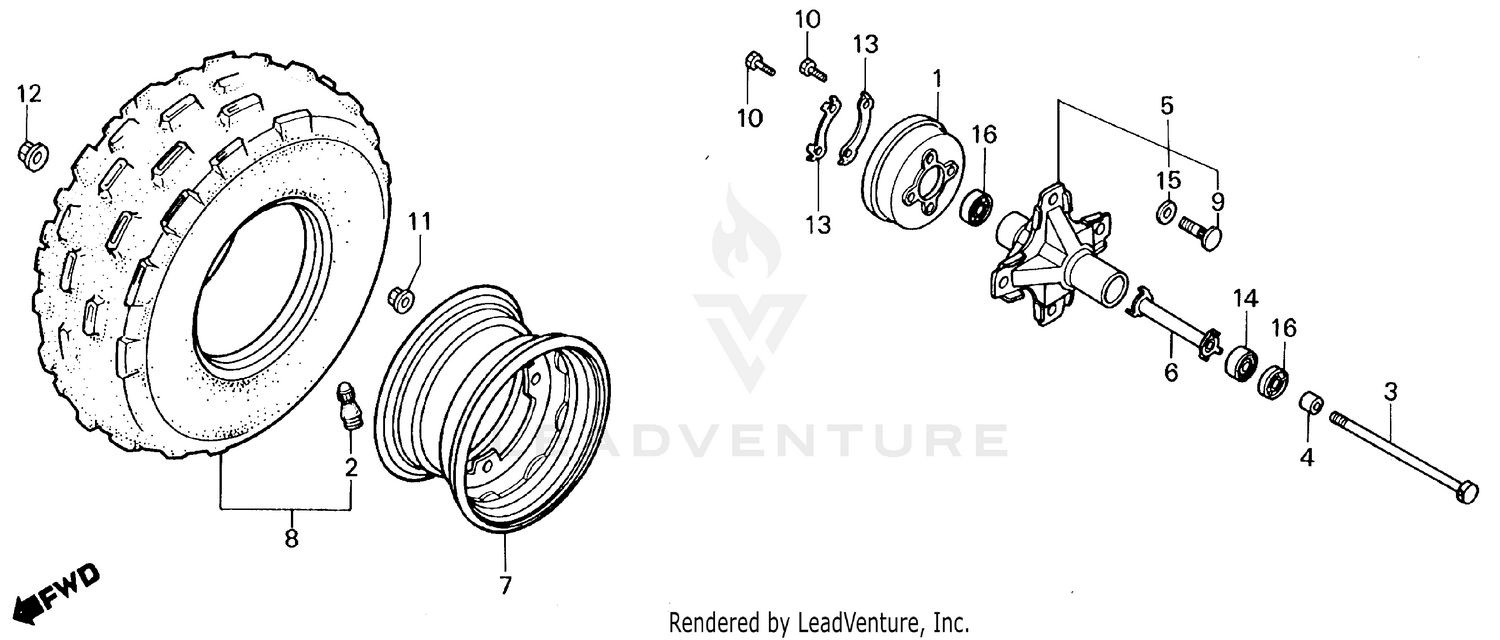

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM, FR. BRAKE (NOT AVAILABLE)
42602-HB7-000
|
$124.85 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-SB8-661
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-SE0-A02
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-634-003
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-634-006
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-634-007
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-671-003
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (SCHRADER)
42753-937-000
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#3
AXLE, FR. WHEEL
44301-HB7-000
|
$81.99 | ||
|
Unavailable |
|||
|
#4
COLLAR, FR. AXLE SIDE
44312-HB7-000
Superseded by 44312-968-680
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. AXLE SIDE
44312-968-680
|
$8.46 | ||
|
Unavailable |
|||
|
#5
HUB SUB-ASSY., FR. WHEEL (NOT AVAILABLE)
44605-HB7-010
|
$166.78 | ||
|
Unavailable |
|||
|
#6
COLLAR, FR. AXLE DISTANCE
44620-HB7-000
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM, FR. WHEEL (NOT AVAILABLE)
44701-HB7-000
|
$177.37 | ||
|
Unavailable |
|||
|
#8
TIRE (24.5X8.00-11)
44710-HB7-003
Superseded by 44711-HB7-003
|
$80.03 | ||
|
Unavailable |
|||
|
#9
BOLT, WHEEL (10X21)
90104-HB7-300
|
$4.42 | ||
|
Unavailable |
|||
|
#10
BOLT, BRAKE DRUM
90109-HB7-000
|
$1.80 | ||
|
Unavailable |
|||
|
#11
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, TONGUED (NOT AVAILABLE)
90514-VM3-000
|
$4.51 | ||
|
Unavailable |
|||
|
#14
DUST SEAL (23X42X7) (NOK)
91251-958-003
Superseded by 91251-958-004
|
$17.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DUST SEAL (23X42X7) (NOK)
91251-958-004
|
$17.27 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (10MM)
94102-10000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$18.62 | ||
|
Unavailable |
|||
