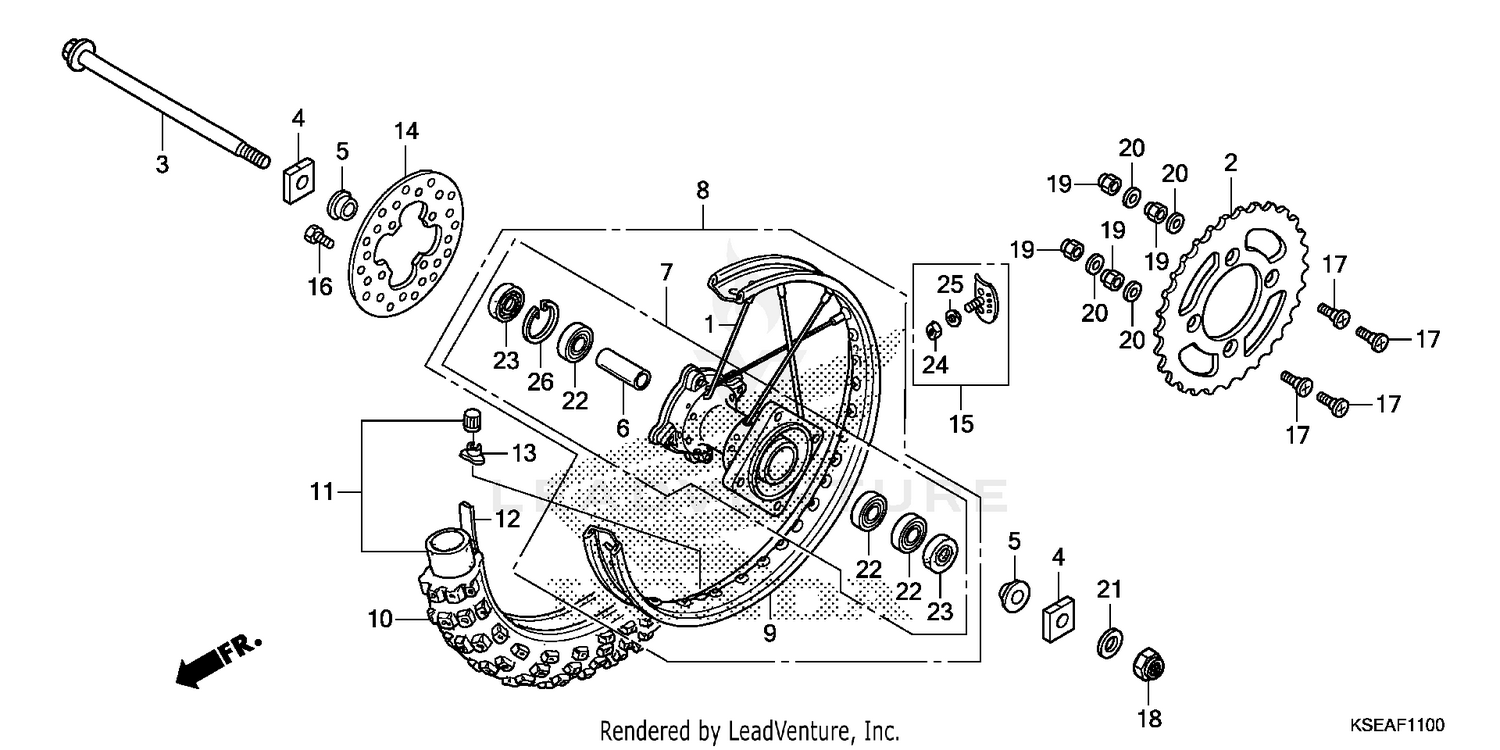

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, RR.
06420-KSE-670
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (50T) (SUNSTAR)
41201-GBF-K00
|
$126.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (49T) (SUNSTAR)
41201-GBF-830
|
$126.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (50T)
41201-KSE-670
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (51T) (SUNSTAR)
41203-GBF-830
|
$130.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-KSE-000
|
$33.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. AXLE
42305-KSE-000
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KSE-000
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. WHEEL DISTANCE
42620-KSE-000
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
HUB SUB-ASSY., RR.
42635-KSE-670
|
$244.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR.
42650-KSE-670
|
$572.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM, RR. WHEEL
42701-KSE-671
|
$227.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (90/100-14 49M)
42711-KSE-F11
Superseded by 42711-KSE-F12
|
$96.30 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (90/100-14) (DUNLOP)
42712-GS2-701
|
$34.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE (1.60X14) (DUNLOP)
42713-GS2-701
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, RR. BRAKE
43351-KSE-000
|
$184.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, BEAD (1.60)
44715-MA0-770
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DISK (6X17)
90105-KAE-870
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, U (16MM)
90305-GW2-711
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (8MM) (FUSE RASHI)
90309-ML3-791
|
$5.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (16MM)
90501-GBM-750
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6003)
91051-KSE-003
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (23X35X7)
91205-VM6-003
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP (INNER) (35MM)
94520-35000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
