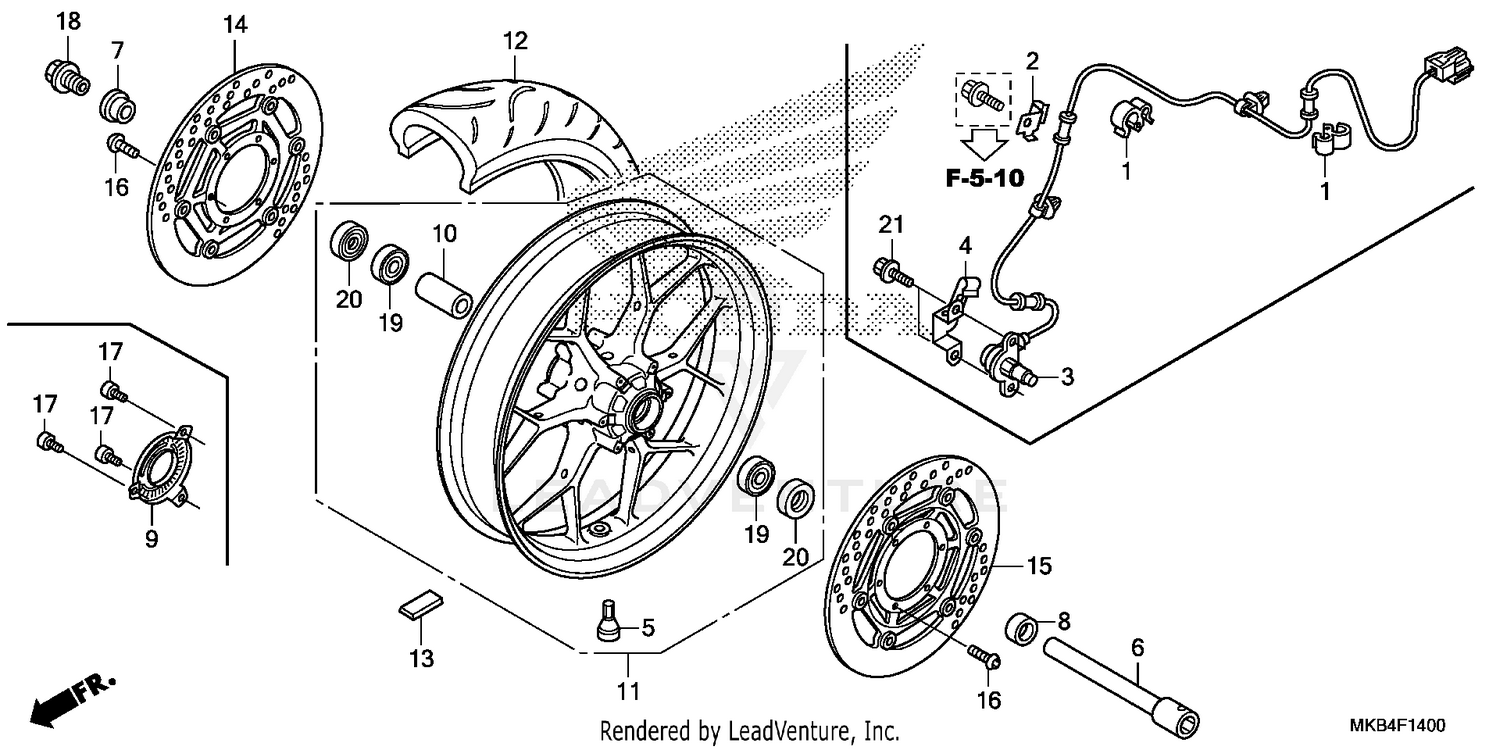

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, PIPE
11152-KS4-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, SENSOR WIRE
38514-MEJ-J00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR, FR. WHEEL SPEED
38520-MFL-D01
|
$208.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, FR. SENSOR WIRE
38525-MFJ-A50
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
AXLE, FR. WHEEL
44301-MFL-000
|
$88.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, R. FR. WHEEL SIDE
44311-MFL-000
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, L. FR. WHEEL SIDE
44312-MFL-000
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, FR. PULSER
44515-MFJ-A50
|
$51.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, FR. WHEEL DISTANCE
44620-MCJ-000
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SUB-ASSY., FR. (TYPE2) (COO)
44650-MGP-305ZE
|
$1,049.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE (120/70ZR17)
44711-MGP-003
Superseded by 44711-MGP-013
|
$151.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)
44711-MGP-014
|
$233.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (10G)
44721-MGC-003
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (15G)
44722-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (20G)
44723-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, R. FR. BRAKE
45120-MFL-D01
|
$657.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
DISK, L. FR. BRAKE
45220-MFL-003
|
$669.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BRAKE DISK (6X17)
90106-MFL-D20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, TORX (5X10)
90131-KFK-630
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FR. AXLE
90306-MFL-D00
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUST SEAL (31X47X7)
91253-MFL-003
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
