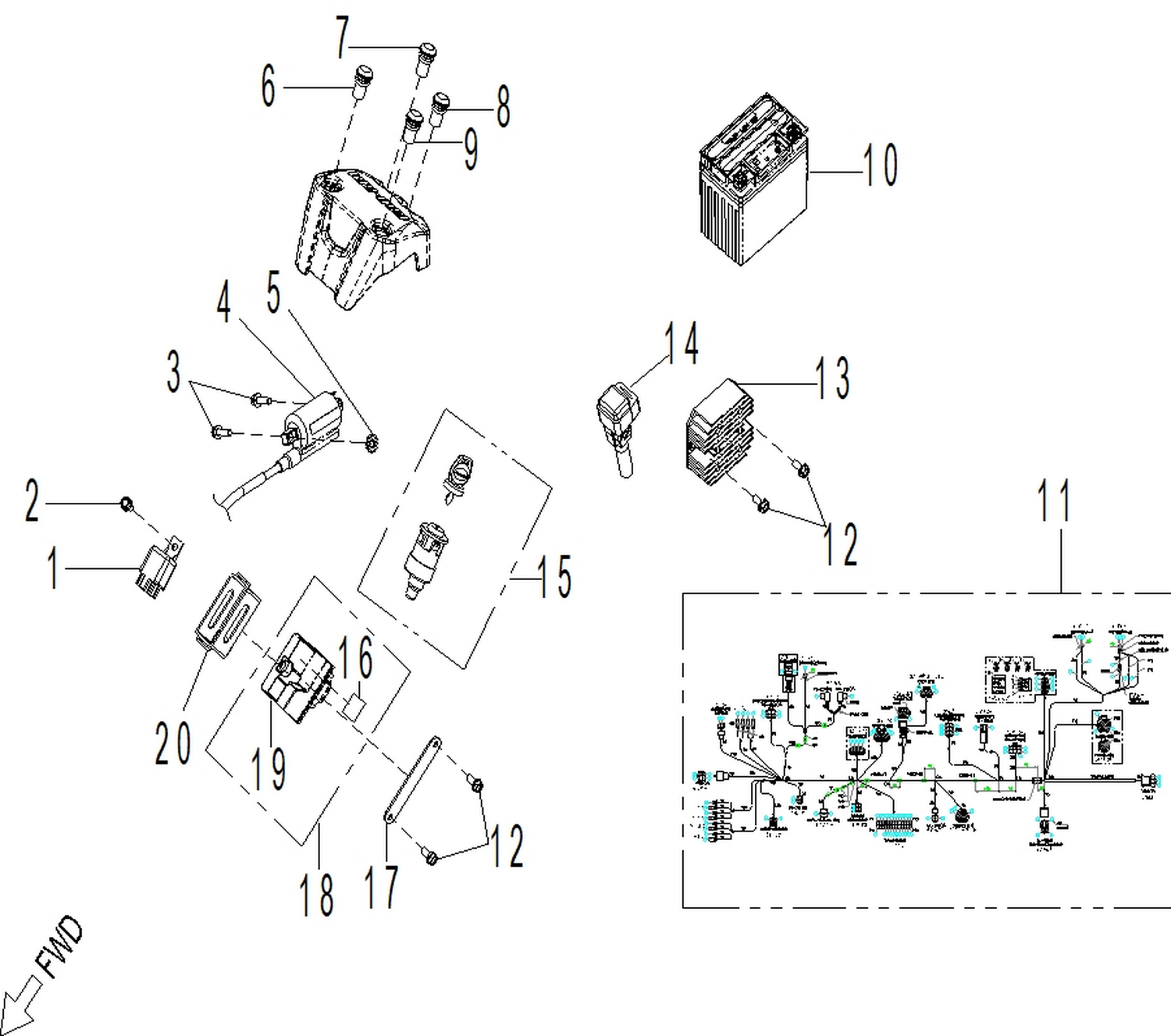

08- Electric - Electrical Parts 70 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EFI Relay
A3850262U000
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hexagonal Head Bolt M6 X 12
A96000060128KL3
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hexagonal Bolt M6 X 20
A960000602080K3
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ignition Coil
A30518012000
|
|||
|
Unavailable |
|||
|
#5
Self Locking Washer
A9410306000000C3
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
Indicator Light, Malfunction
A34915203000
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Indicator Light, Neutral Gear
A34918206000
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Indicator Light, Reverse
A34911207000
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Indicator Light, Low Fuel
A34928002001
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Battery YUASA YTX4L-BS
V31500MAA020
|
$59.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
Main Harness
A32100T91000
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hexagonal Head Bolt M6 X 16
A96000060168KL3
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
Regulator Rectifier
A3160062U000
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Starter Relay
A38501201000
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Main Switch Ass'y (W / Key)
A35100T91000
|
$60.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ECU Fixing Plate
A30445T91000
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ECU Module Renegade 70
A30446T92000
Superseded by 715900944
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ECU Rubber Mount
A30411T91000
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
