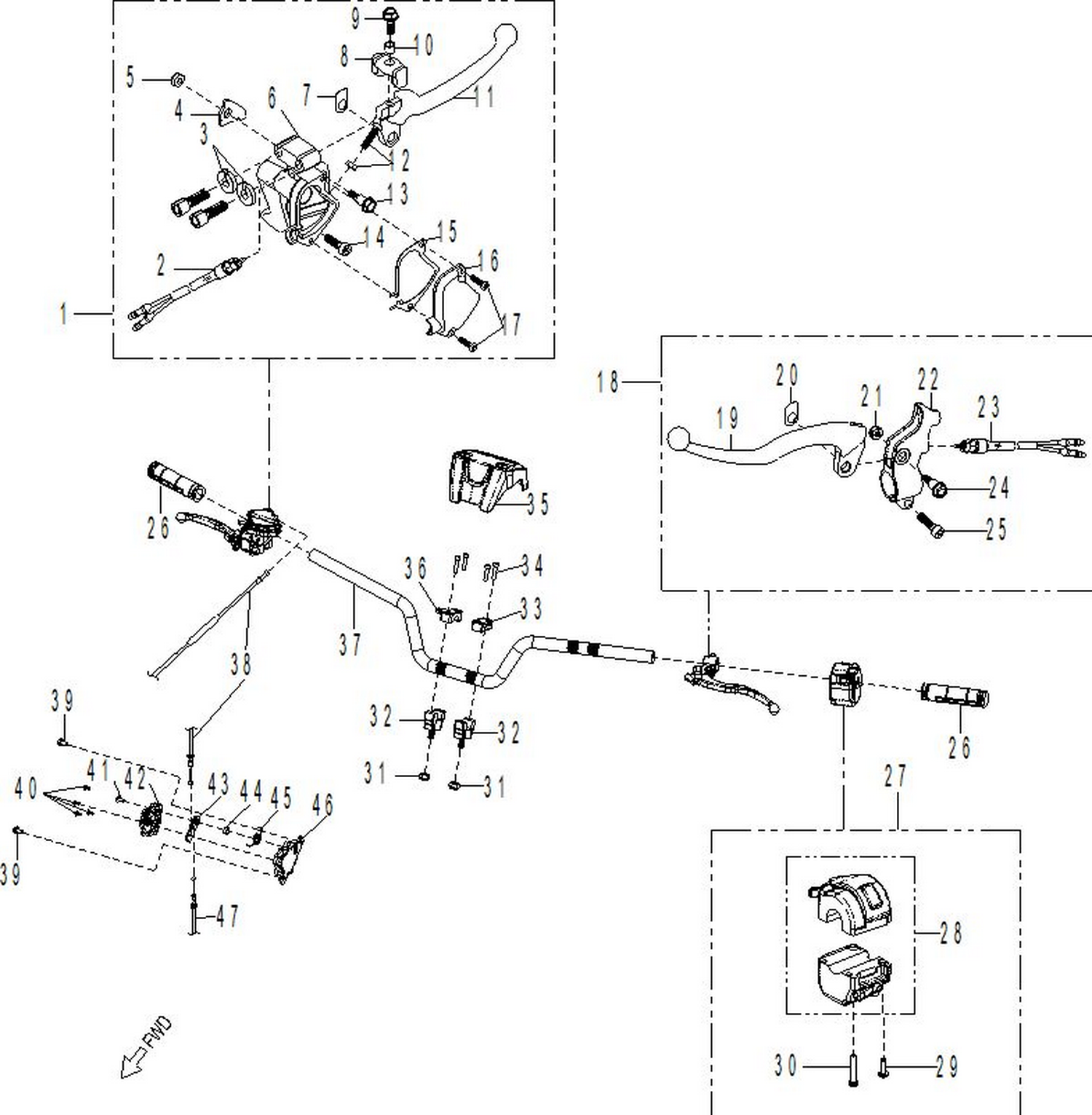

03- Mechanic - Handlebar 70 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#2
RH Stop Switch
A53174204000
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
Adjusting Nut, RH Brake Housing
A1611306N000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Stopper
A53181202000
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Lock Nut M6 (W / Spring Plate)
A90350060000K3
Superseded by A903550600003K
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
RH Control Housing
A53176207000
Superseded by A53176206000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Wavy Washer
A5319906N000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
Cable Fixture, RH Brake Housing
A53177131000
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M6 X 16
A9600006016803K
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
Spacer
A4281006N000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
RH Brake Lever
A53175T92000
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt Ass'y
A88310T91000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fixing Bolt, RH Brake Lever
A9011509022800
|
|||
|
Unavailable |
|||
|
#14
Allen Screw M6 X 20
A9100006020803K
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gasket, RH Control Housing
A53203010000
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cap, RH Control Housing
A53202010000
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Phillips Screw M4 X 16
A9350004016803K
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#19
LH Brake Lever
A53178151000
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Wavy Washer
A5319906N000
|
$9.69 | ||
|
Unavailable |
|||
|
#21
Lock Nut M6 (W / Spring Plate)
A90350060000K3
Superseded by A903550600003K
|
$6.67 | ||
|
Unavailable |
|||
|
#22
LH Control Housing
A53194012000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
LH Stop Switch
A53173207000
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
Fixing Bolt, LH Brake Lever
A9011606023803K
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Allen Screw M6 X 20
A9100006020803K
|
$2.11 | ||
|
Unavailable |
|||
|
#26
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#27
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#28
Lh Multi-Fonction Switch Ass'Y
A35152T91000
Superseded by A35151T91000
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Phillips Screw M5 X 28
A935000502880K3
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
Phillips Screw M5 X 40
A935000504080K3
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#31
Lock Nut M10
A90350100000C3
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#32
Handle Bar Lower Clamp
A53200131000
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Handle Bar Upper Clamp B
A53220131000
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Allen Screw M6 X 25
A910000602580K3
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
Steering Cover
A64211T91001
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Handle Bar Upper Clamp A
A53210131000
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Deep Black, Handle Bar
A53100T92160
Superseded by A53100T92067
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Throttle Cable
A53910T92000
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Hexagonal Bolt M6 X 12
A960000601280K3
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#40
Tapping Screw M4 X 10
A939142040100K3
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#41
Round Head Bolt M5 X 12
A931000501280K3
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#42
Cap, Throttle Box
A53228T92070
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Throttle Adjusting Plate
A53229T92000
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Bushing
A96401101306
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#45
Return Spring
A43421T92000
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#46
Throttle Transfer Box
A53227T92070
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Throttle Cable
A53910235000
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
