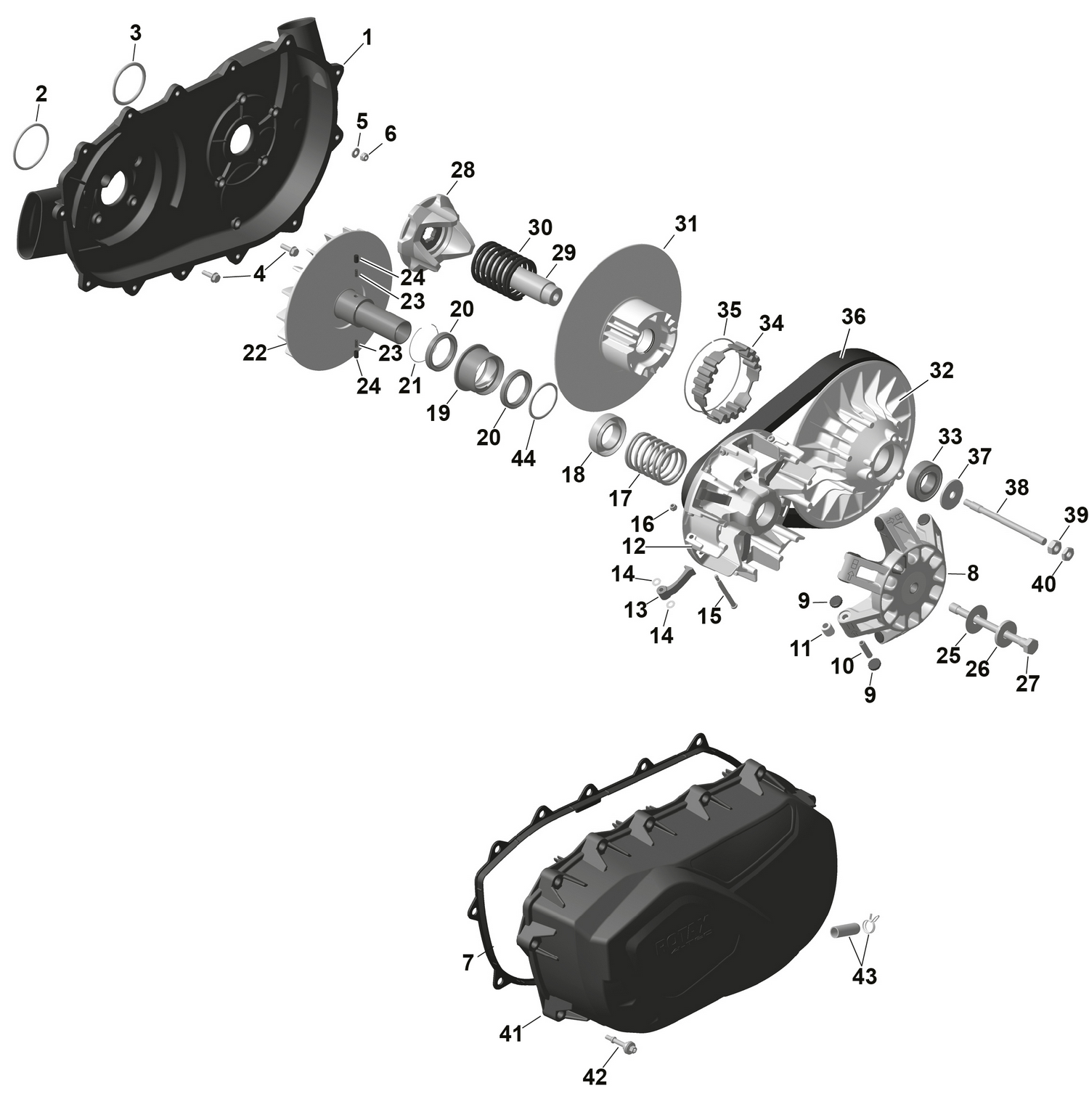

01- Rotax - Cvt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CVT Air Guide
420612304
|
$194.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-Ring
420430408
Superseded by 420430409
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-Ring
420631089
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#6
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#7
Gasket
420430126
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Governor Cup Ass'y
420280522
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Roller
417223767
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Outer Haft
420280467
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Centrifugal Lever Set
420248558
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Thrust Washer
420626290
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#17
Compression Spring, Drive Pulley
420238610
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Seat Spring
420627578
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Drive Pulley Clutch
420257195
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Ball Bearing
420632377
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Retaining Ring
420245951
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#22
Inner Half
420280374
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Spring
420239134
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Spring Sleeve
420229577
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Thrust Washer
420627920
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
Spring Washer
420627768
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Screw M12 X 140
420641859
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Cam
420280701
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Driven Pulley Shaft
420220914
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Compression Spring
420238176
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Inner Half Ass'y
420280786
|
$308.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Outer Half Pulley Ass'y
420280178
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Ball Bearing
420932421
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Torque Gear
420660124
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Retaining Ring
420245911
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#36
V-Belt
420280366
Superseded by 422280366
|
$179.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Thrust Washer
420627590
Superseded by 420627594
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Stud Screw M10 X 136
420441900
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Hexagonal Nut M10
420242098
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hexagonal Nut M10
420242403
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#41
Variator Cover
420611397
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#43
Drain Plug Kit
707001179
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#44
Friction Washer
420460430
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
