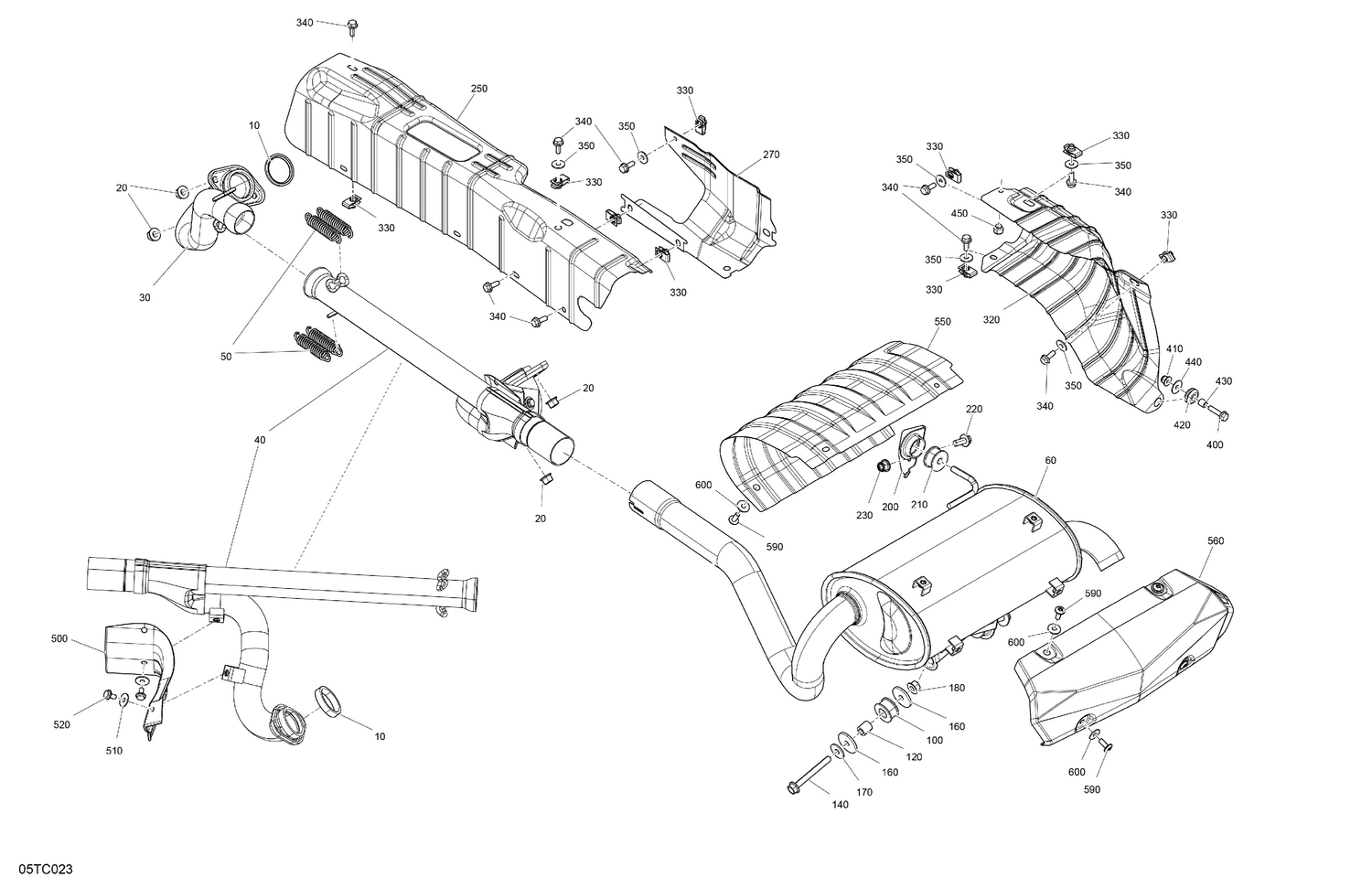

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Gasket
707600317
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Front Head Pipe
707600764
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Rear Head Pipe
707601446
|
$206.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spring
415107100
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Exhaust Muffler
707603037
|
$550.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Vibration Damper
707603323
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#120
Spacer Bushing
293900116
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Flat Washer M8
250200158
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#170
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#200
Support
707600933
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#210
Anti-Vibration Rubber
707600702
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#250
Heat Shield
707602862
Superseded by 707603724
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Protector
707601484
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#320
Protector
707601425
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#330
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#340
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#400
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#410
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Flat Washer
224060201
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#450
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#500
Pipe Protector
707600932
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#510
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#520
Hex. Flange Screw M6 X 12 S.Grip
250001090
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Heat Deflector
707600737
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#560
Heat Deflector
707600738
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#590
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#600
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
