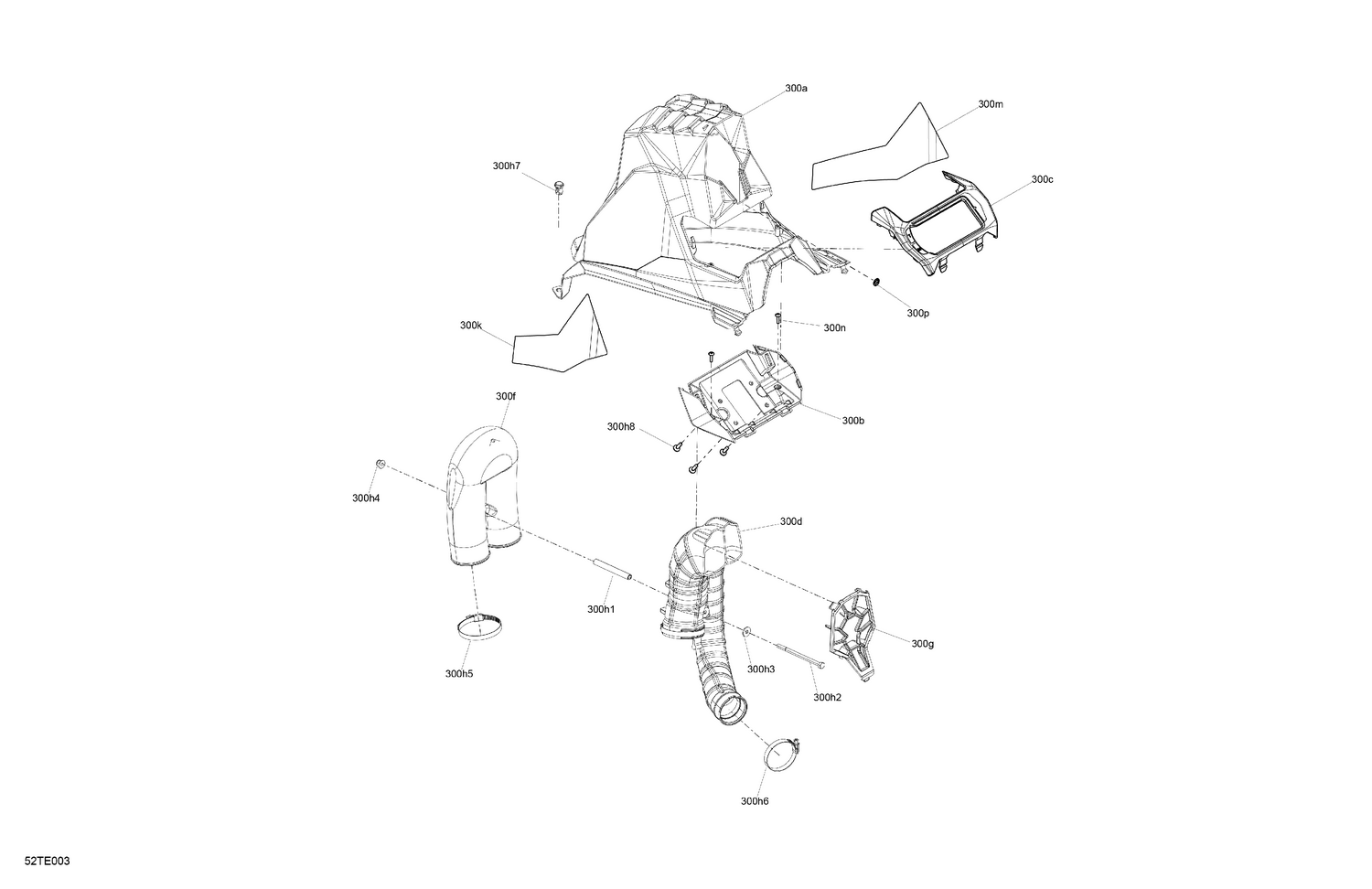

07- Body - Snorkel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#300a
Snorkel
705015170
|
$99.49 | ||
|
Available to order. Add to View Price |
|||
|
#300b
Interior Gauge Support
705015171
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#300c
Gauge Trim
705015189
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#300d
Upper Air Inlet
707001779
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#300f
Upper Air Outlet
707001782
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#300g
Prefilter Screen
705010922
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#300h1
Bushing
293900122
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#300h2
Hex. Screw M6 X 100
230060060
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#300h3
Flat Washer M6
250200115
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#300h4
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300h5
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#300h6
Norma Clamp
293650077
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#300h7
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300h8
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#300k
Orange Crush, LH Front Hood Decal
704910162
|
$104.99 | ||
|
Unavailable |
|||
|
#300m
Orange Crush, RH Front Hood Decal
704910163
|
$104.99 | ||
|
Unavailable |
|||
|
#300n
Torx Truss Pt K40 X 16
250000759
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#300p
BRP Logo 13 MM
516010651
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
