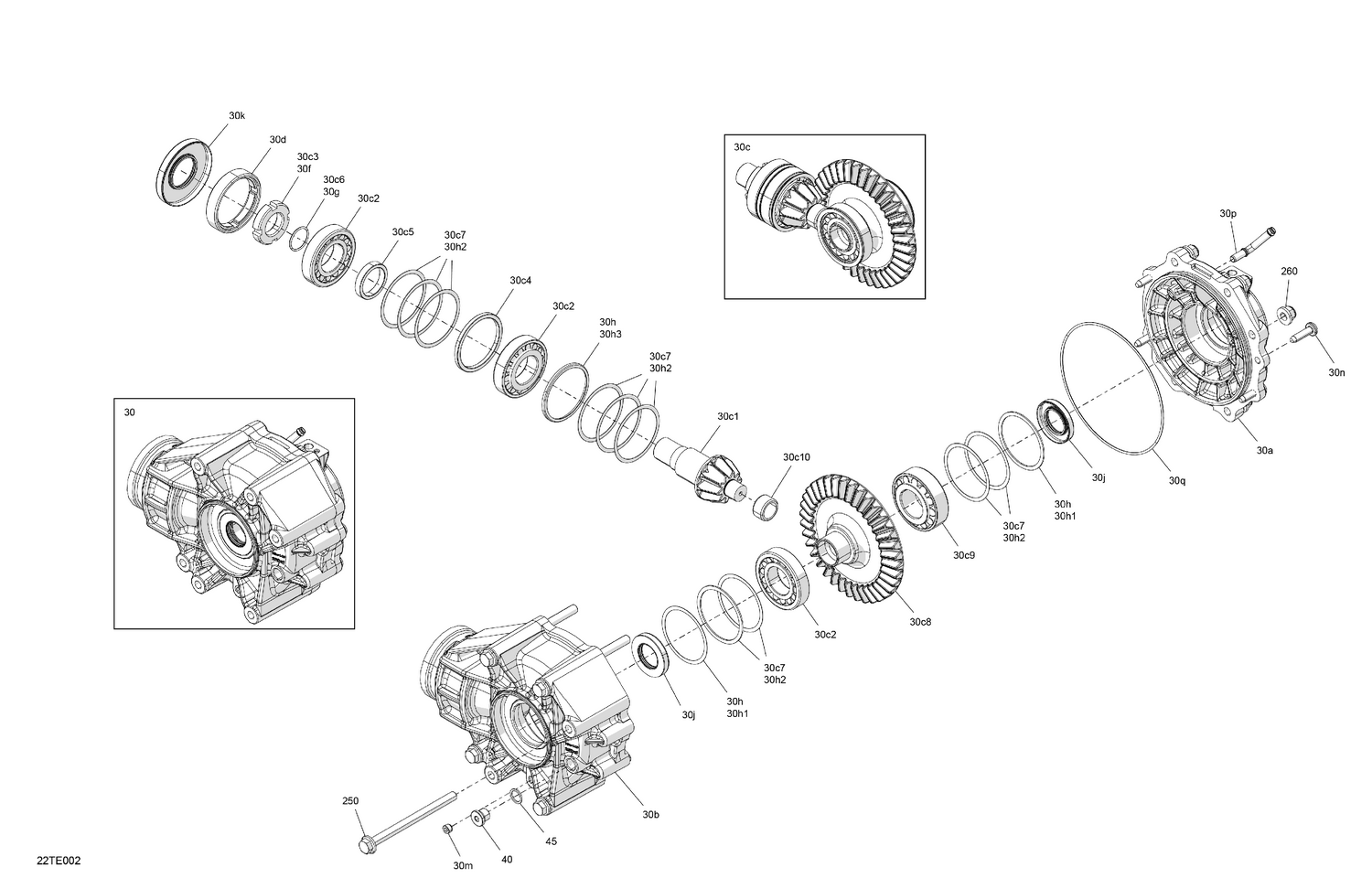

04- Drive - Final Drive Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Rear Final Drive Unit
705503536
|
$1,292.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Rear Cover
705502547
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Rear Pinion Cover
705502180
|
$291.49 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Gear Kit - 10/36 teeth
703501031
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#30c1
Geart 10 Teeth
705502809
|
|||
|
Unavailable |
|||
|
#30c2
Roller Bearing
705502174
|
|||
|
Unavailable |
|||
|
#30c3
Nut
705501550
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30c4
Differential Shim
705501552
|
|||
|
Unavailable |
|||
|
#30c5
Differential Shim
705501553
|
|||
|
Unavailable |
|||
|
#30c6
O-Ring
705501554
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#30c7
Differential Shim
705501725
|
|||
|
Unavailable |
|||
|
#30c8
Gear 36 Tooth
705502810
|
|||
|
Unavailable |
|||
|
#30c9
Roller Bearing
705502173
|
|||
|
Unavailable |
|||
|
#30c10
Needle Bearing
705501760
|
|||
|
Unavailable |
|||
|
#30d
Nut
705501549
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Nut
705501550
|
$21.99 | ||
|
Unavailable |
|||
|
#30g
O-Ring
705501554
|
$5.03 | ||
|
Unavailable |
|||
|
#30h
Differential Shim Kit
703500835
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#30h1
Differential Shim
705501555
|
|||
|
Unavailable |
|||
|
#30h2
Differential Shim
705501725
|
|||
|
Unavailable |
|||
|
#30h3
Differential Shim
705501586
|
|||
|
Unavailable |
|||
|
#30j
Oil Seal
705501556
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#30k
Oil Seal
705501557
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30m
Plug Drain
705501724
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#30n
Screw
705502063
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#30p
Breather Tube
705501584
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30q
O-Ring
705501711
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#40
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Hex. Flange Screw M10 X 135
250001041
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
