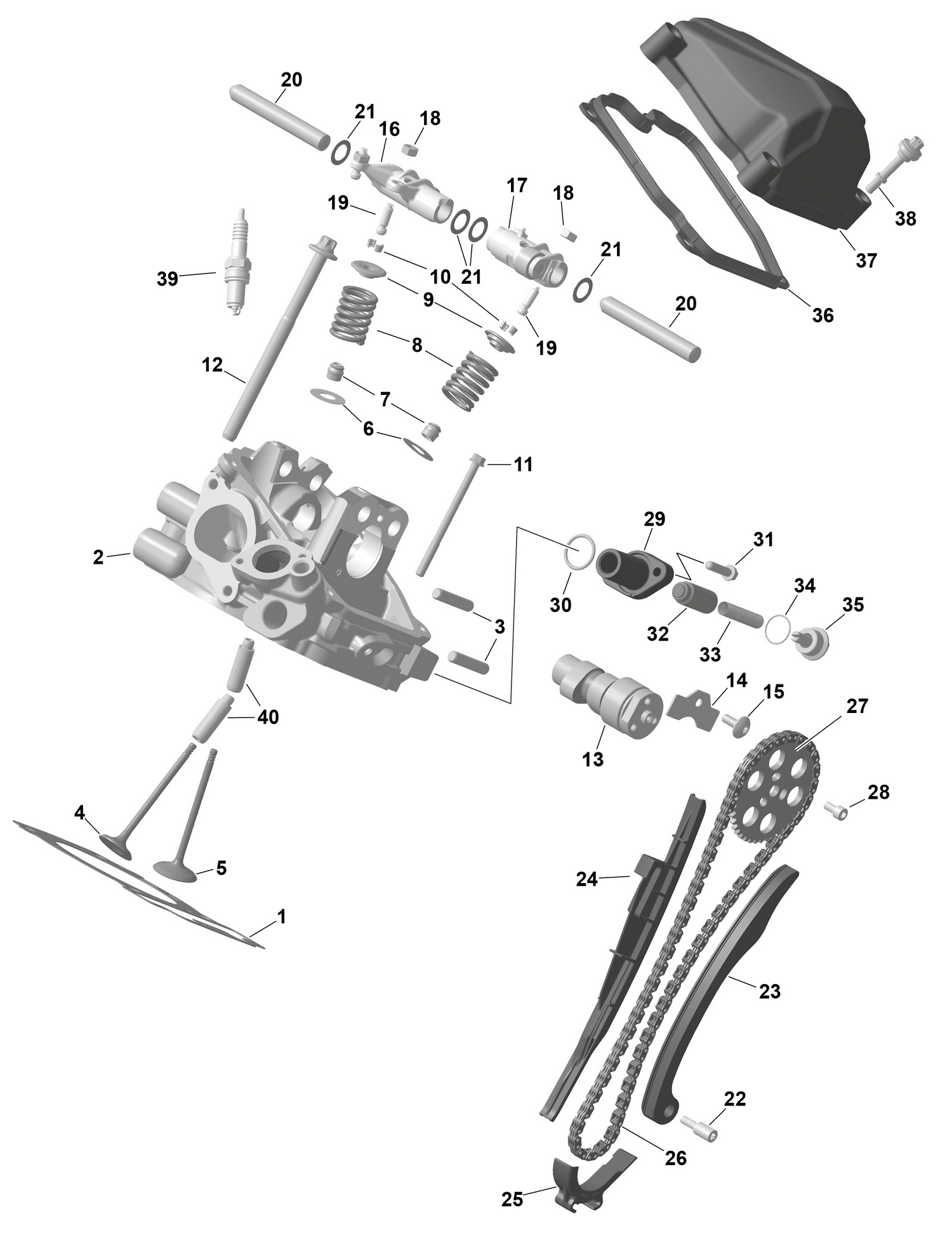

01- Rotax - Rear Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder Head Gasket
420630850
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cylinder Head
420413397
|
$679.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Stud M8 x 26
420941014
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Intake Valve 31MM
420254352
Superseded by 420254359
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Exhaust Valve, 27 Mm
420254362
Superseded by 420253171
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Thrust Washer
420627525
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Valve Stem Seal
420230515
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Valve Spring
420239295
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Valve Spring Retainer
420254132
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cotter Valve
420254120
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 85
420440347
Superseded by 420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
Torx Screw M10X140
420641551
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Camshaft
420281071
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Holding Strip
420627743
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Inlet Rocker Arm
420254907
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Exhaust Rocker Arm
420254915
Superseded by 420254911
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex Nut M6
420242913
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
Adjustment Screw M6 X 0.75
420241337
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pin #12, Small, M6 X 90
420229712
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Shim
420944382
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bearing Screw M6
420240943
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
Chain Tension Guide
420436015
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Chain Guide
420236584
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Chain Guide
420236351
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Silent Chain
420297063
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Timing Gear 42T
420254438
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Allen Screw M6 X 12
420840032
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Chain Tensioner Housing
420236510
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
420430373
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M6 X 25
420440234
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
Chain Tensioner Plunger
420236521
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Spring
420238120
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-Ring
420250892
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Plug Screw
420641150
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#36
Gasket
420630260
Superseded by 420630265
|
$8.79 | ||
|
Unavailable |
|||
|
#37
Valve Cover
420610393
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
Spark Plug NGK DCPR8E
715900642
Superseded by 715901051
|
$6.99 | ||
|
Unavailable |
|||
|
#40
Valve Guide
420254374
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
