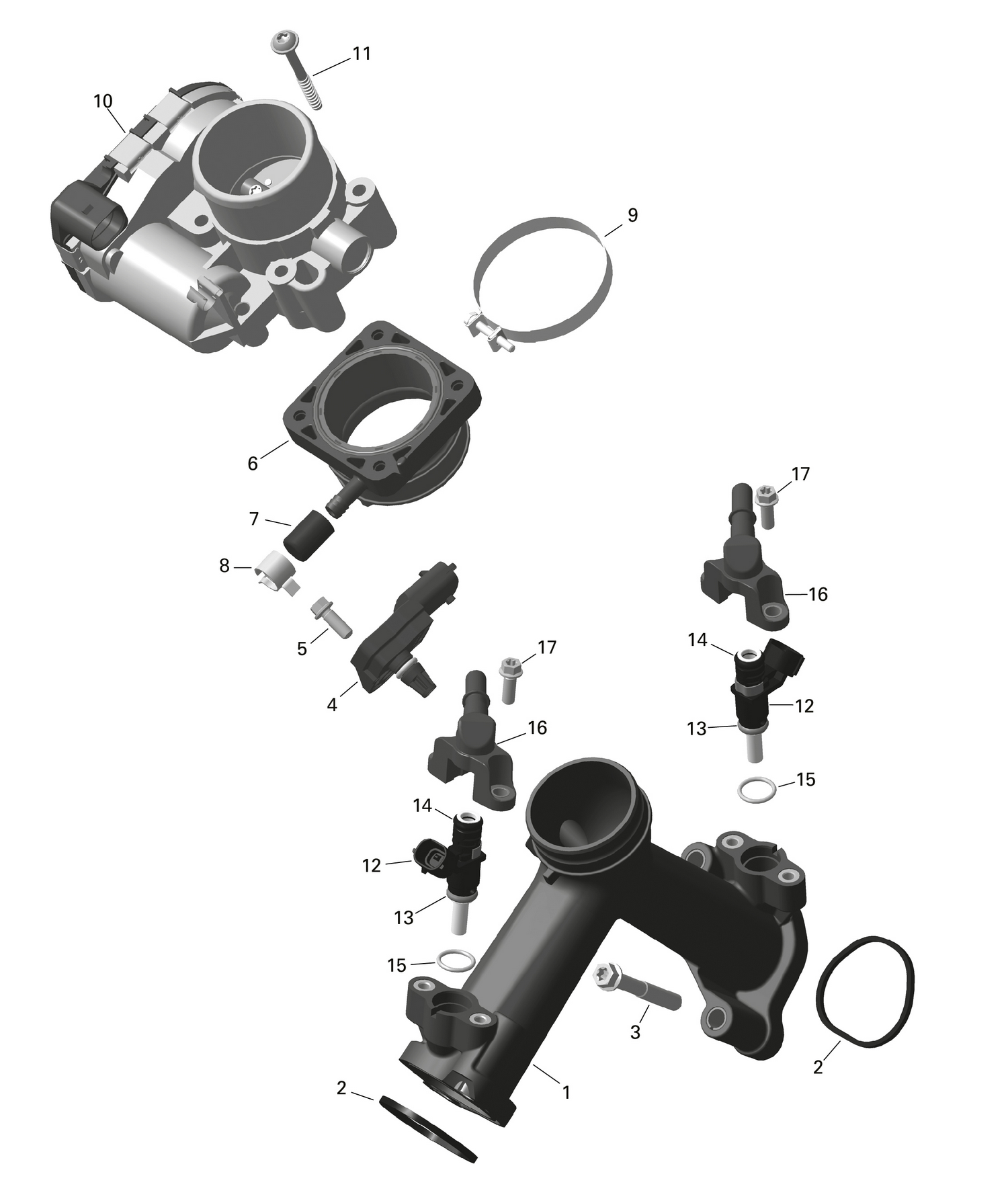

01- Rotax - Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold
420667581
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420630642
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M8 X 55
420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pressure And Temperature Sensor
707000995
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Intake Neck
420267616
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Closure Cap
420201911
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring Type Clamp 14
420853512
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
Clamp
420251480
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Throttle Body
420893149
|
$646.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 50
420441588
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Injection Valve Ass'y
420874840
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-Ring
420431890
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-Ring
420631295
Superseded by 420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
Fuel Rail
420874901
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Unavailable |
|||
