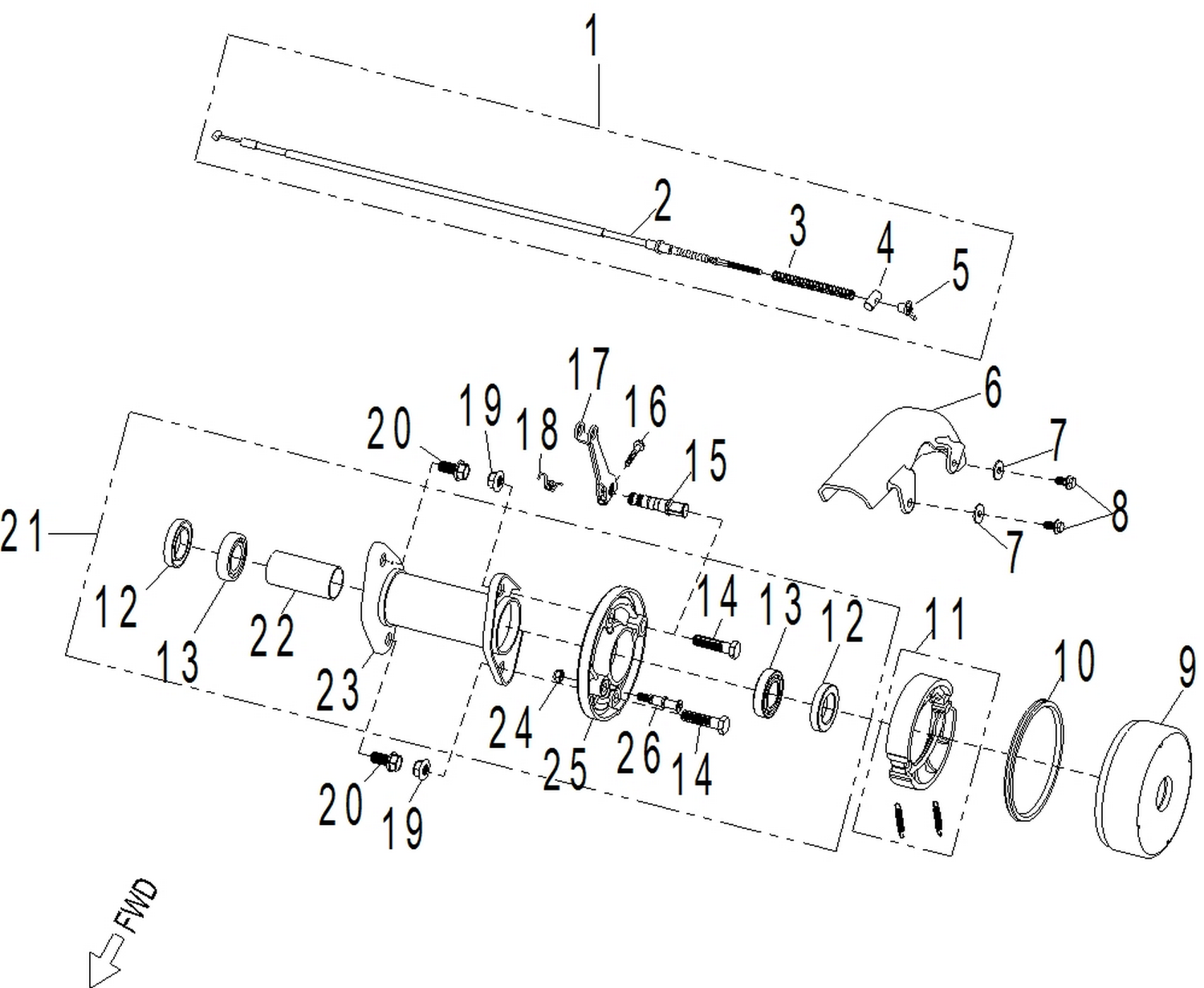

03- Mechanic - Rear Brake 110 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear Brake Cable Ass'y
A43450T91000
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Rear Brake Cable
A43448T91000
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Brake Cable Spring
A4345911900A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Fixing BLock, Rear Brake Cable
A9020706000S03
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Adjusting Nut, Rear Brake Cable
A4341615600A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rear Chain Cover
A40550T91070
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer
A9410108220200K3
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Flange Screw M8 X 14
A96000080148KL3
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
Rear Drum
A43520131001
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Rubber Ring, Rear Drum
A43521131000
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rear Brake Shoe Kit
A4312011900B
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Rear Brake Cam
A4314106N000
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Hex. Flange Screw M6 X 32
A960000603280C3
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
Lever, Rear Brake Drum
A4341020600A
|
$19.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
Return Spring, RR Brake Drum
A4342013100A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hexagonal Head Nut (Serrated)
A94050120007C3
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Screw
A96000120288CL3
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Seal
A96500355511A7271
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
Ball Bearing
A0490003001
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bolt, Rear Drum
A4353013100A
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
Rear Brake Axle Spacer
A4281013100A
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
Rear Brake Axle
A4280506N067
|
$169.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Lock Nut M8
A90350080000C3
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
Rear Brake Plate
A4351406N000
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Fixing Shaft, Rear Brake
A4311011900A
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
