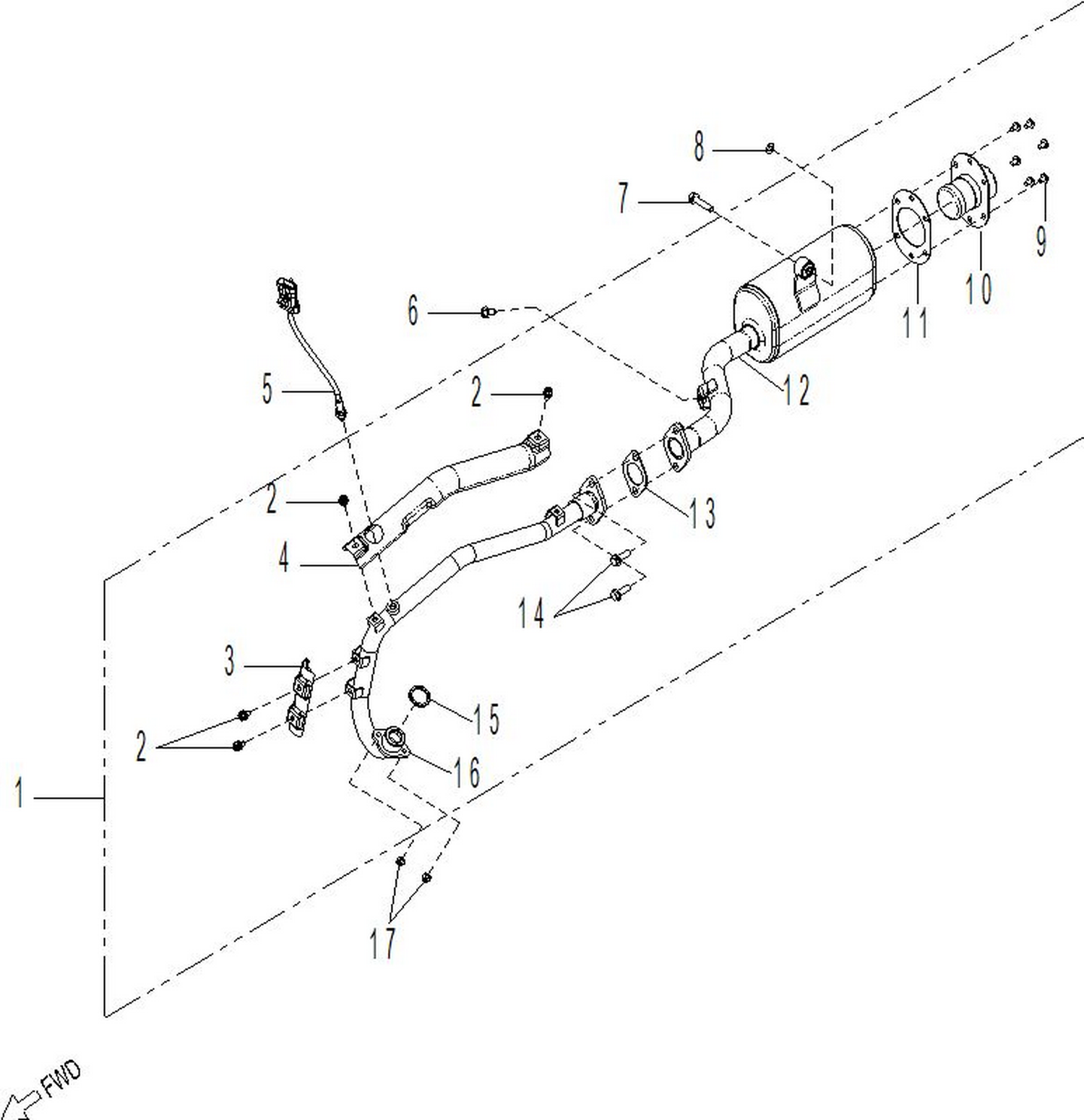

02- Engine - Exhaust Pipe 110 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#2
Hexagonal Screw W / Spring And Flat Washer
A960130601280K3
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
Heat Protector
A18315234000
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Heat Protector
A18315T91000
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Oxygen Sensor
A18330T91000
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Screw M8 X 14
A96000080148KL3
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Screw M8 X 38
A96000080388KL3
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer
A941010819020SUS
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hexagonal Screw M6 X 10
A910030601080K3
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
Spark Arrester
A18410218000
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spark Arrester Gasket
A18411214001
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
Muffler
A18298T91000
|
$328.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Muffler Gasket
A1610120300A
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Screw M8 X 25
A960000802580K3
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gasket, Front Pipe
A1829112300B
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
Front Pipe
A18299T91000
|
$328.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Lock Nut (W / Spring Plate)
A90355060000K3
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
