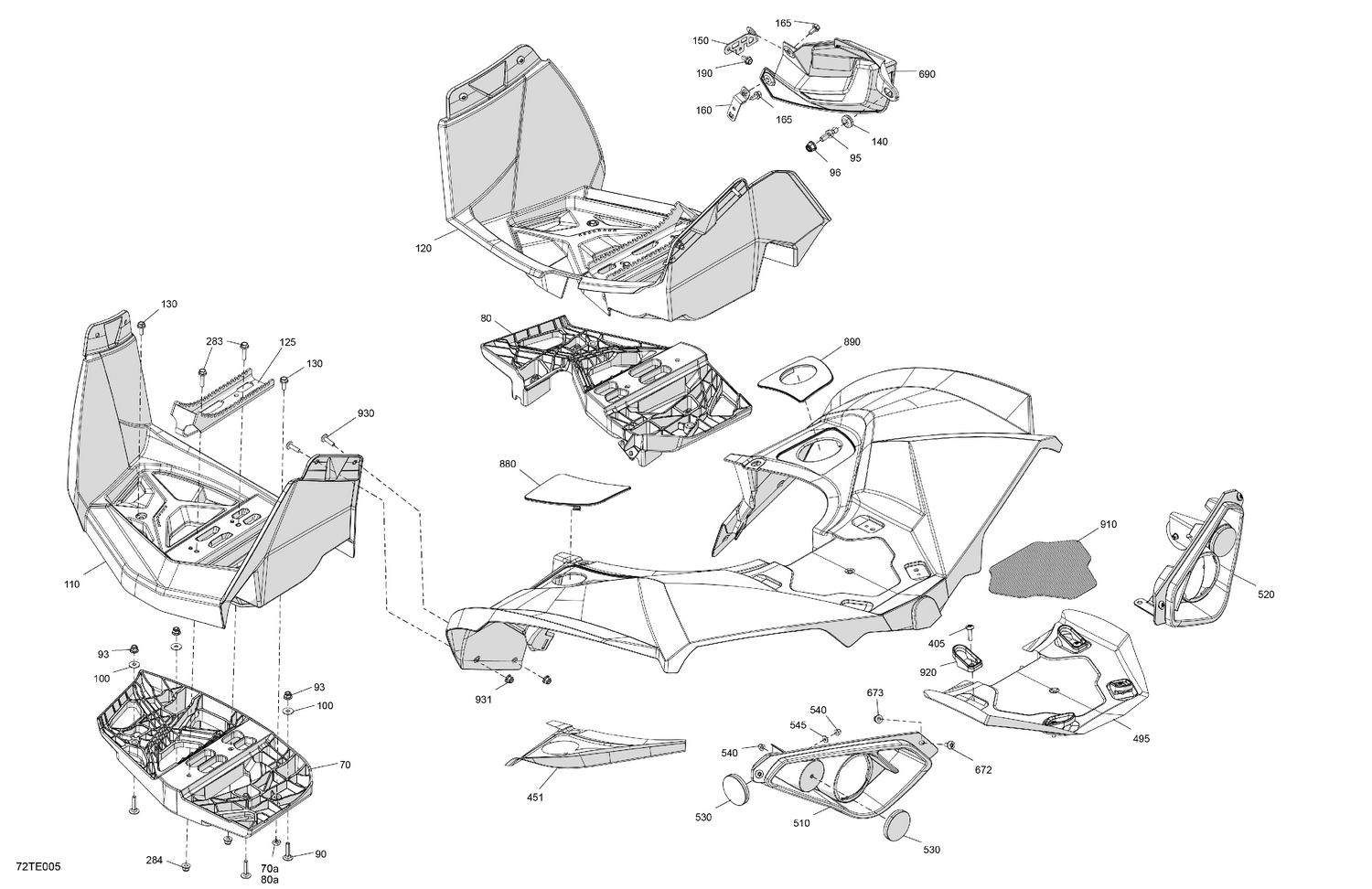

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#70
LH Footboard
705004176
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#70a
Square Nut M6
232862412
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
RH Footboard
705004177
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#80a
Square Nut M6
232862412
|
$1.49 | ||
|
Unavailable |
|||
|
#90
Carriage Bolt M6 X 30
207763044
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#93
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
Ball Head Stud
250300039
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#96
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#110
LH Footboard/Fender
705004730
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
RH Footboard/Fender
705004729
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#125
Footrest
705002326
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Hex. Flange Screw M6 X 16
207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#140
Overmolded Grommet
293720130
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Engine Cover Support
705011461
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
Engine Cover Support
705003646
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#165
Hex. Flange Screw M6 X 12
210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#283
Hex. Flange Screw M6 X 25
207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#284
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#405
Torx Screw M6 X 25
250000758
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#451
Heat Shield
707003638
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#495
Reflective Sheet
705005840
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#510
LH Rear Facia
705004731
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#520
RH Rear Facia
705004732
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#530
Red, Reflector
705016982
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#540
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#545
Flat Washer
517225900
|
$0.18 | ||
|
Available to order. Add to View Price |
|||
|
#672
Torx Screw M6 X 16
250000755
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#673
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#690
Engine Cover
705004966
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#880
LH Rear Body Panel Cap
705017923
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#890
RH Rear Body Panel Cap
705017924
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#910
Rear Carpet
705002343
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#920
Hook
705017925
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#930
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#931
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
