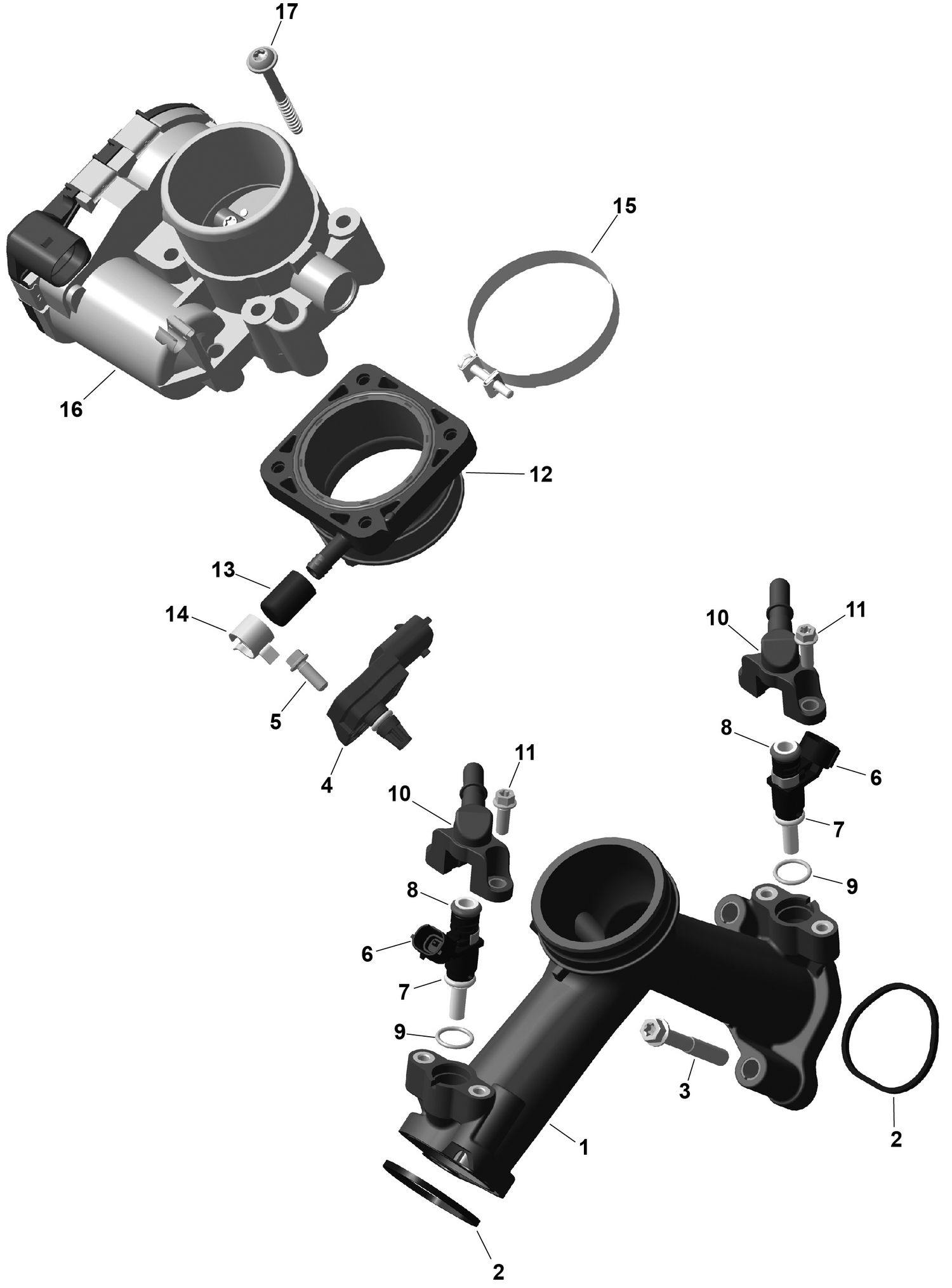

01- Rotax - Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold
420667520
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420630642
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M8 X 55
420440397
Superseded by 420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pressure And Temperature Sensor
420874658
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 12
420440149
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Injection Valve Ass'y
420874842
Superseded by 420874887
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-Ring
420431890
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-Ring
420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
Fuel Rail
420874901
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
Flange
420267052
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Closure Cap
420201911
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring Type Clamp 14
420853512
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
Clamp
420251209
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
Throttle Body Socket Ass'y
420892596
|
$466.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Flange Screw M6 X 50
420441588
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
