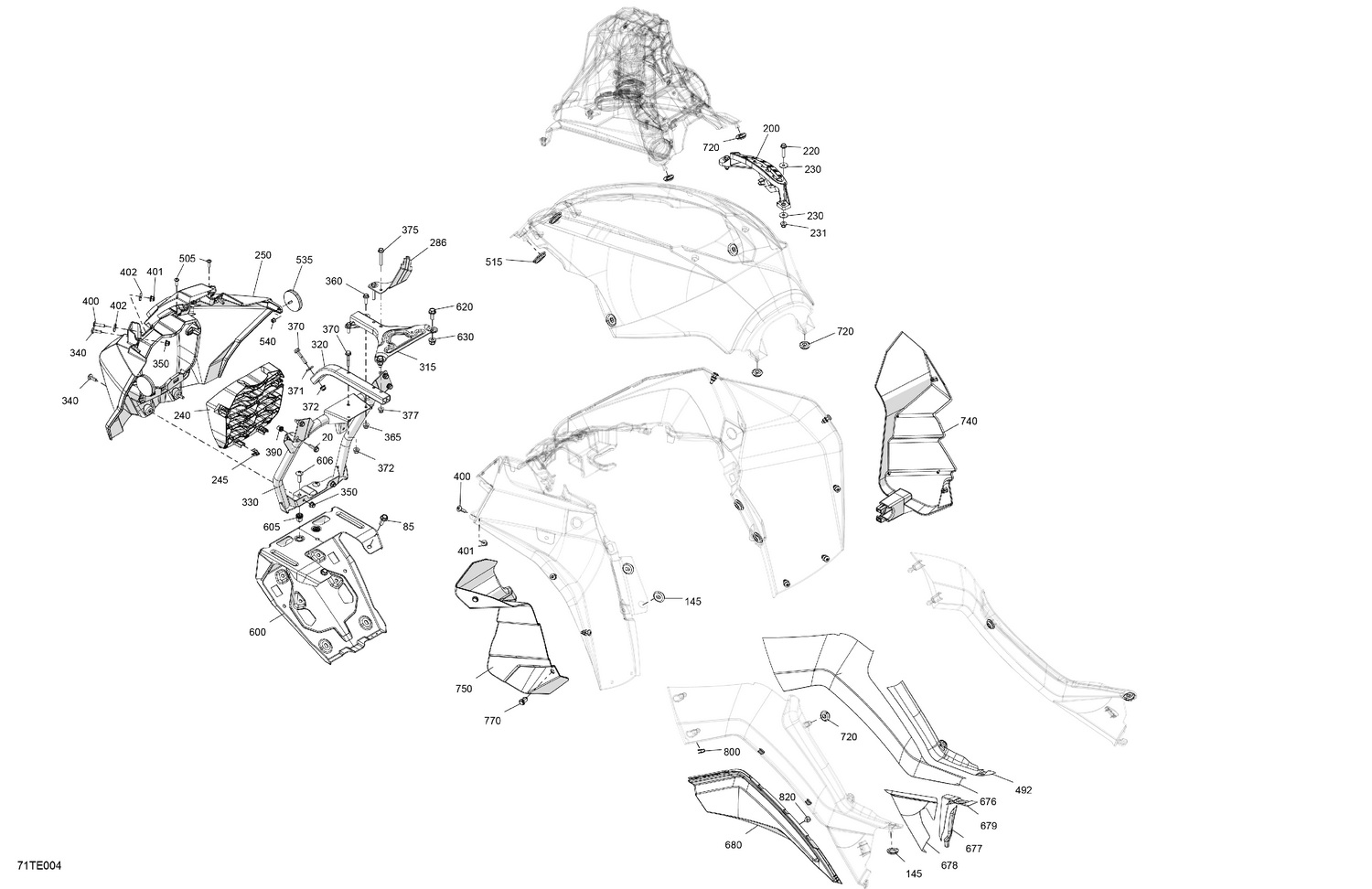

07- Body - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#145
Oval Washer
705000321
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#200
Lever Indicator
705004416
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#231
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Air Inlet Grille
705016533
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#245
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Front Fascia
705016535
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#286
fuse Box Support
705018076
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#315
Bracket
705003599
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#320
Upper Sectional Bent Tube
705016534
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Front Fascia Support
705017182
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#350
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#360
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#365
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#370
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#371
Flat Washer
224061201
|
$1.39 | ||
|
Unavailable |
|||
|
#372
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#375
Hex. Flange Screw M6 X 40
207664044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#377
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#390
Insert
293450275
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#400
Torx Screw M6 X 25
250000758
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#401
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#402
Flat Washer
224061201
|
$1.39 | ||
|
Unavailable |
|||
|
#492
Heat Shield
705010559
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#505
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#515
Oblong Grommet
705003668
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#535
Amber Reflector
705017809
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#540
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#600
Front Skid Plate
705017338
|
$317.99 | ||
|
Available to order. Add to View Price |
|||
|
#600a3
Steel Wire S6 .9mm HI-DEP
75011200
|
|||
|
Unavailable |
|||
|
#605
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#606
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#620
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#630
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#676
Reflective Sheet
705005620
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#677
Heat Shield
705010557
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#678
Reflective Sheet
705005622
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#679
Heat Shield
705010558
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#680
Panel Extension
705004988
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#720
Grommet
705003264
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#740
RH Front Wheel Arch Protector
705017922
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#750
LH Front Wheel Arch Protector
705017926
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#770
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800
Clip
414479100
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#820
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
