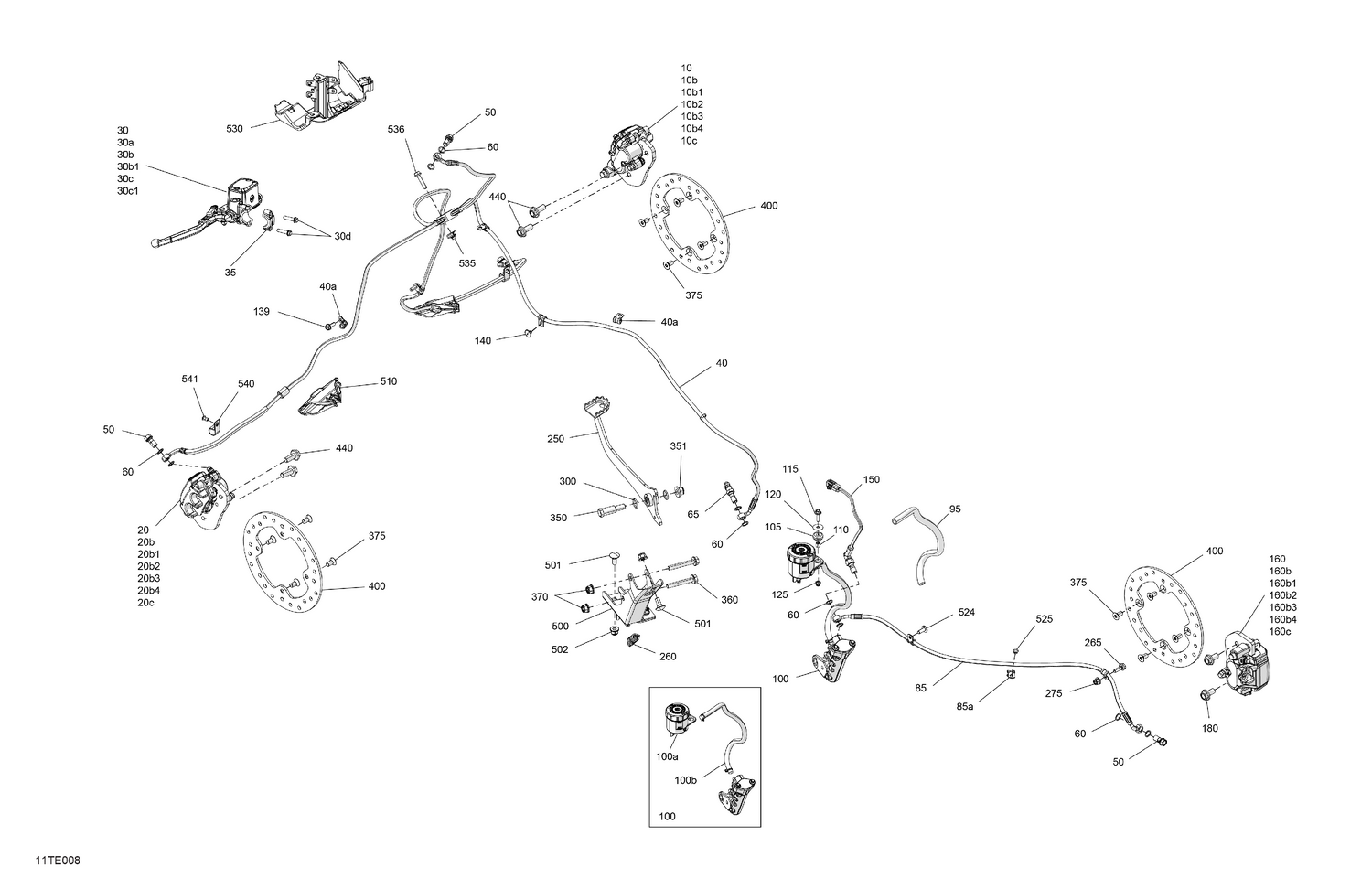

03- Mechanic - Brake System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
RH Front Caliper Ass'y
703500967
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
RH Front Brake Caliper
705602188
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b1
RH Organic Brake Pad Kit
705601014
|
$42.49 | ||
|
Unavailable |
|||
|
#10b2
Pin Set
705601016
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#10b3
Bleeding Screw
705601017
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10b4
Retaining Spring
705601018
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#10c
RH Metallic Brake Pad Kit
715900249
|
$51.99 | ||
|
Unavailable |
|||
|
#20
LH Front Caliper Ass'y
703500968
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#20b
LH Front Brake Caliper
705602189
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#20b1
Pin Set
705601016
|
$9.26 | ||
|
Unavailable |
|||
|
#20b2
Bleeding Screw
705601017
|
$6.35 | ||
|
Unavailable |
|||
|
#20b3
Retaining Spring
705601018
|
$7.55 | ||
|
Unavailable |
|||
|
#20b4
LH Organic Brake Pad Kit
705601015
|
$42.49 | ||
|
Unavailable |
|||
|
#20c
LH Metallic Brake Pad Kit
715900248
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Master Cylinder
705602314
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Lever Set
705601013
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Clamp And Screw Kit
507032477
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b1
Hex. Flange Screw M6 X 25
250000447
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Cap Set
219800096
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30c1
Screw M4 X 20
415129356
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Hex Flange Screw M6 X 25
229000711
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#35
Clamp And Screw Kit
507032477
|
$23.99 | ||
|
Unavailable |
|||
|
#40
Brake Line
705601686
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#40a
Clamp
293650256
|
$5.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Banjo Bolt (M10 x 1.25 thread)
705600609
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Washer
414920600
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#65
Bleeding Screw
705601051
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#85
RH Rear Hose
705601301
|
$41.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85a
Clamp
293650256
|
$5.59 | ||
|
Unavailable |
|||
|
#95
Tubing 10 MM 1000MM Long
219704407
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#100
Rear Master Cylinder
705601273
|
$269.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100a
Oil Tank
705601020
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#100b
Oil Housing Hose
705601019
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#105
Grommet
414036300
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#110
Bushing
293900112
|
$10.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Hex.Flange Screw M5 X 20
207652044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Flat Washer
224060201
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#125
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#139
Hex. Flange Screw M6 X 16
210261640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#140
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#150
Brake Switch
705601250
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH Rear Caliper Ass'y
703500969
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#160b
RH Rear Brake Caliper
705602190
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#160b1
Pin Set
705601016
|
$9.26 | ||
|
Unavailable |
|||
|
#160b2
Bleeding Screw
705601017
|
$6.35 | ||
|
Unavailable |
|||
|
#160b3
Retaining Spring
705601018
|
$7.55 | ||
|
Unavailable |
|||
|
#160b4
RH Organic Brake Pad Kit
705601014
|
$42.49 | ||
|
Unavailable |
|||
|
#160c
RH Metallic Brake Pad Kit
715900249
|
$51.99 | ||
|
Unavailable |
|||
|
#180
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#250
Deep Black, Brake Pedal
705602163
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Brake Pedal Spring
705600792
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#265
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#275
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
O-Ring
293300144
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#350
Shoulder Screw M10
250000513
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#351
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#360
Hex. Flange Screw M8 X 55
207685544
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#370
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#375
Torx Screw M8 X 16, Scotch Grip
235381646
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#400
Disc Brake
705601997
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#440
Hex. Flange Screw M10 X 25
207502546
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Brake Pedal Bracket
705202000
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#502
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#510
Front Hose Guard
705602016
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#524
Torx Screw M6 X 16
250000755
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#525
Pop Rivet 3/16"
390402400
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Front Hose Bracket
705600983
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#535
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#536
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#540
Open Clamp
518321570
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#541
Pop Rivet 3/16 X ,551
293150301
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
