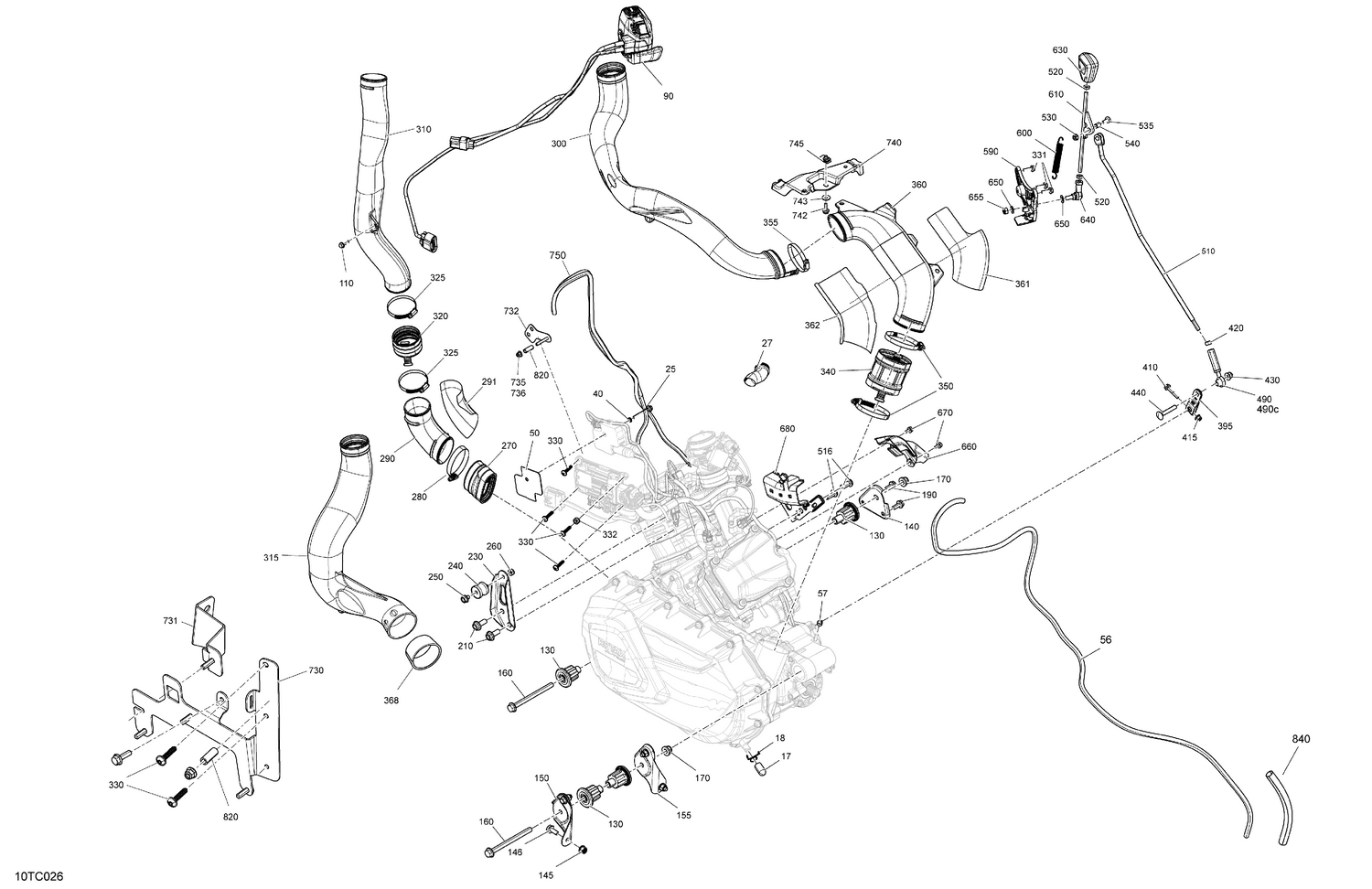

02- Engine - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#17
Plug
707001185
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
Retainer Clip
707800506
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
Tubing 25 MM 1000MM Long
219704402
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
Insulator Pad
710000073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#56
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
Oetiker Clamp
293650044
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hand Lever Accelerator
707003088
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Vibration Damper
707001169
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Engine Support
707000761
Superseded by 707003319
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Rear Engine Bracket
707001191
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#155
RH Rear Engine Bracket
707001192
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Screw M10 X 25
207602544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#230
Upper Engine Support
707000781
Superseded by 707003326
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Rubber Isolator
707000949
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
Flange Screw M8 x 10, Scotch Grip
207581046
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Flexibale Adaptor
707002585
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
CVT Air Inlet
707001087
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#291
Heat Shield
707001654
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#300
CVT Air Outlet
707001780
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
CVT Air Inlet
707001778
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#315
Inferior CVT Air Outlet
707001781
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Adaptor
707001274
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#325
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#330
Screw PT K60 X 30
250000949
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#331
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#332
Bushing
293900128
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#340
CVT Air Outlet Adaptor
707001168
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Norma Gear Clamp
293650118
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#355
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#360
Duct Out
706600415
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#361
Heat Shield
707001205
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#362
Heat Shield
707001206
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#368
Heat Shield
707002092
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#395
Lever
707000911
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#415
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Hex. Nut M8, LH Threads
250100144
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Carriage Bolt M8 X 30
207783044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Ball Joint Ass'y
707000966
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#490c
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#510
Shifter Rod
707002068
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#516
Screw Socket M10 X 25
205402556
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#520
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Unavailable |
|||
|
#530
Hex. Flange Nut M6
233161414
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#535
Torx Screw M6 X 20, Scotch Grip
250000446
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#540
Bushing
293900019
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#590
Lever Support
707003054
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600
Spring
707000577
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Shift Arm
707000840
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#630
Lever Trim
707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#640
RH Ball Joint
707001959
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#650
Washer
506151252
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#655
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
Unavailable |
|||
|
#660
Cover OPS
707000410
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#670
Hex. Flange Screw M6 X 12
210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#680
Cable Support
707003053
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#730
Welded Support
707002355
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#731
Welded Support
707002356
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#732
CVT Outlet Support
707002418
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#735
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#736
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#740
Air Outlet Support
707001262
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#742
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#743
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#745
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#750
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Unavailable |
|||
|
#820
Spacer
708300736
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#840
Protector Tube
503195447
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
