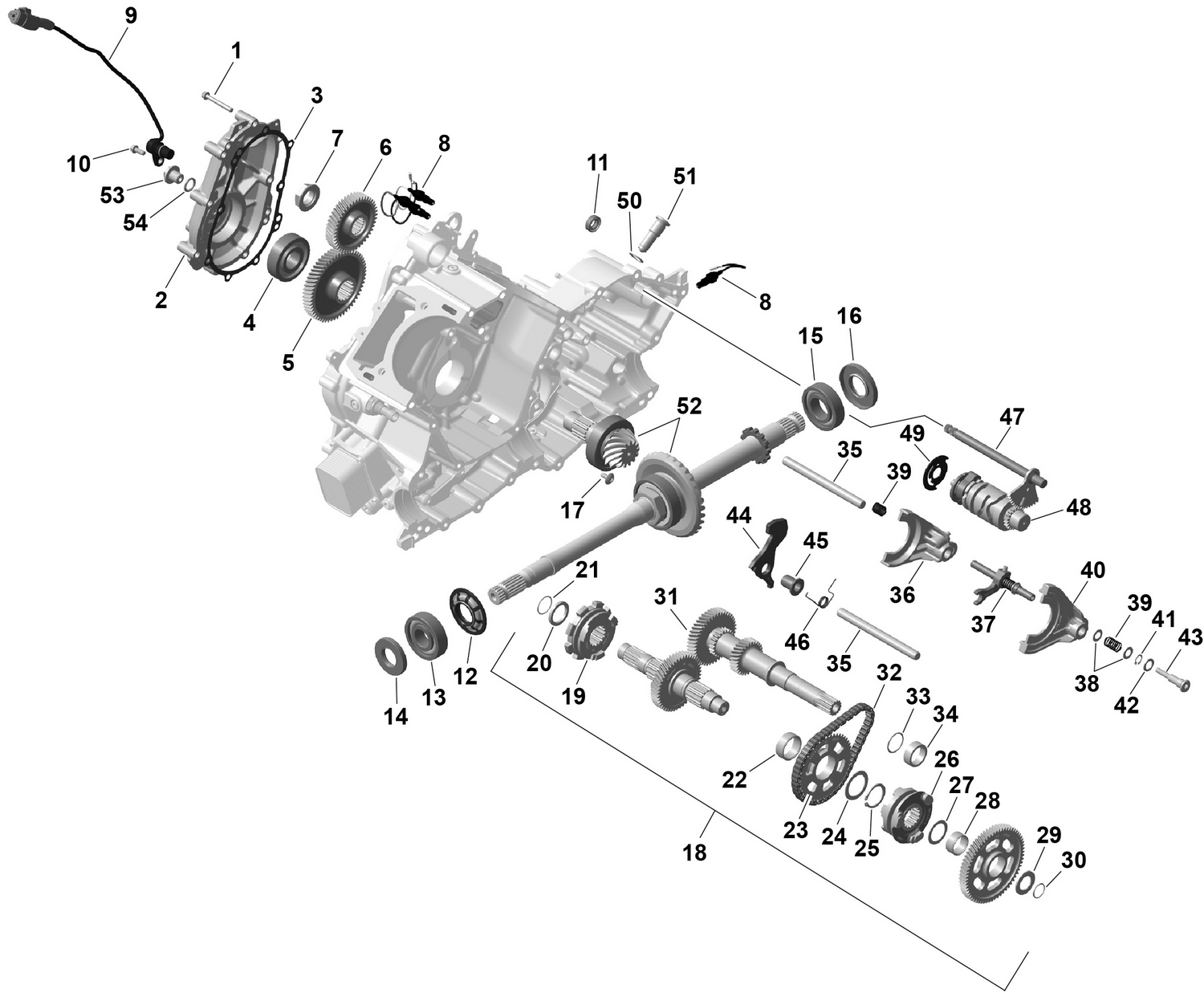

01- Rotax - Gearbox Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gear Box Cover
420686891
Superseded by 420686892
|
$58.99 | ||
|
Unavailable |
|||
|
#3
Gasket
420651275
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ball Bearing
420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Intermediate Gear 49 Teeth
420235773
|
$77.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Intermediate Gear 47 Teeth
420235771
|
$77.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Nut M22X1
420842245
|
$19.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
Contact Screw M10 Ass'y With Cable
420640192
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Camshft Position Sensor Ass'y
420265723
Superseded by 420265727
|
$109.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Seal
420250455
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Seal
420931941
|
|||
|
Unavailable |
|||
|
#13
Ball Bearing
420932822
|
$30.49 | ||
|
Unavailable |
|||
|
#14
Oil Seal
420831178
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ball Bearing
420932580
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
Oil Seal 32X60X7
420830753
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Screw M6X13
420240051
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
Main Shaft Ass'y
420820420
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shifting Sleeve
420257255
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Thrust Washer
420227864
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-Ring
420931391
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
Needle Bearing
420632359
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
Pinion Gear 49 Teeth
420934190
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Thrust Washer
420626875
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
Retaining Ring
420945620
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
Shifting Sleeve
420257244
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Thrust Washer
420427012
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
Needle Bearing
420632075
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
Thrust Washer
420627301
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
420230371
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
Countershaft
420820415
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Distance Ring
420247591
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-Ring
420631616
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#34
Distance Ring
420247591
|
$20.49 | ||
|
Unavailable |
|||
|
#35
Dowel Pin 12X140
420229242
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
Shift Fork
420657695
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Shifting Block Ass'y
420657707
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Thrust Washer
420827590
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spring
420638151
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#40
Gearshift Fork Ass'y
420657685
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Snap Ring
420245330
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#42
Aluminum Sealing Ring
420250016
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
Bearing Screw M12X1.5
420240921
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#44
Parking Lock Lever
420657760
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Collar Sleeve
420647132
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Helical Spring
420638185
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#47
Shift Shaft Ass'y
420820346
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Shifting Drum Ass'y
420657666
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Isolating Washer
420637955
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#50
Oil Pressure Regulator Gasket Ring
420430624
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#51
Index Screw Ass'y M16X1.5
420441395
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#52
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#53
Plug Screw M14 X 1.5
420241662
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#54
O-Ring
420650352
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
