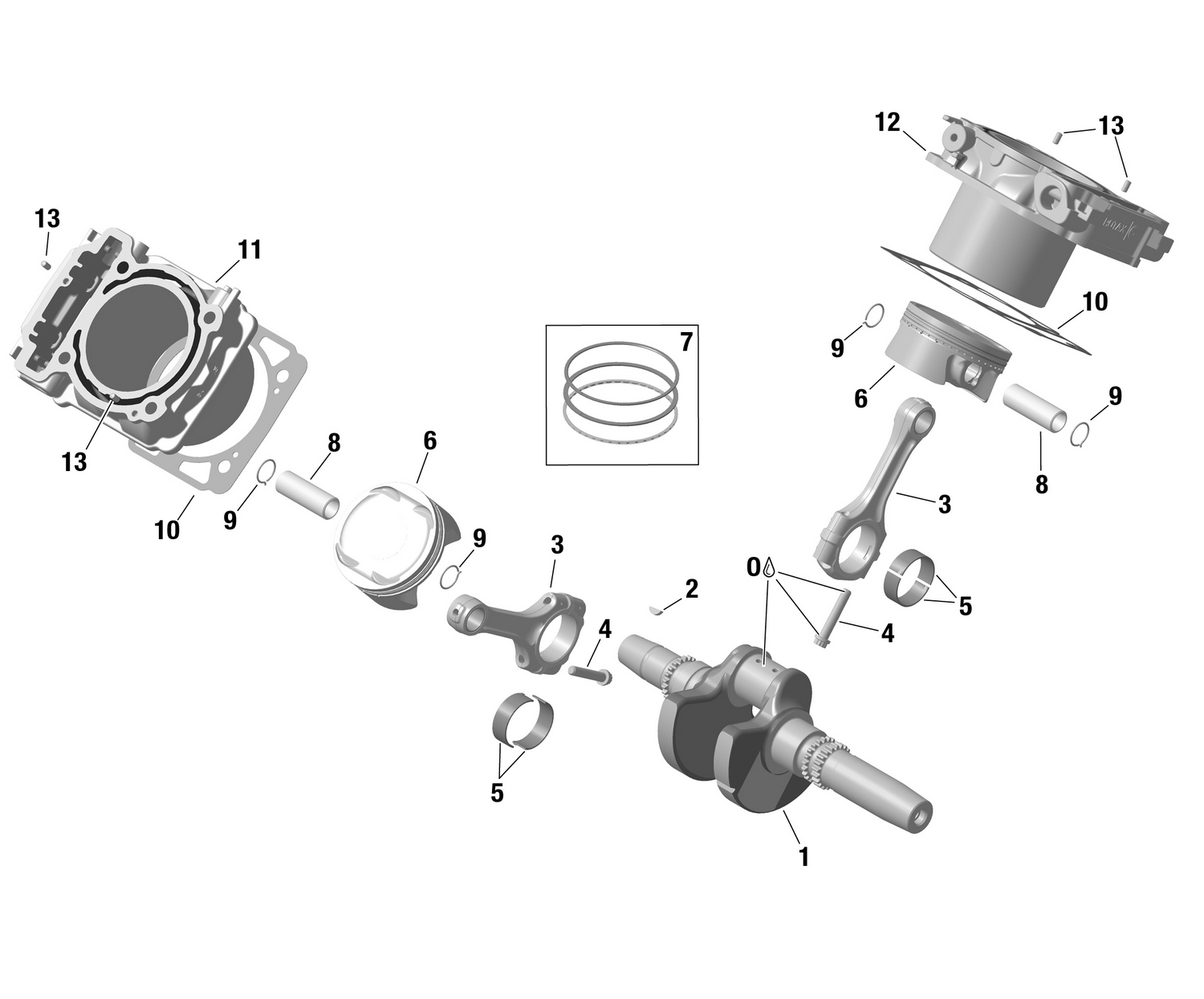

01- Rotax - Crankshaft, Pistons And Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Crankshaft Ass'y
420219746
|
$628.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Woodruff Key
420246571
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Connecting Rod Ass’y
420217425
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Connecting Rod Screw M8 X 1
420641640
Superseded by 420641645
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Plain Bearing 40 X 43 X 15
420233980
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Piston Ass'y, 93.958 mm
420686310
|
$143.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Piston Ring Set
420686314
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Piston Pin
420216270
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Piston Circlip
420845107
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Gasket
420450330
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cylinder With Sleeve
420413267
Superseded by 420413269
|
$414.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cylinder
420413265
Superseded by 420413263
|
$414.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
