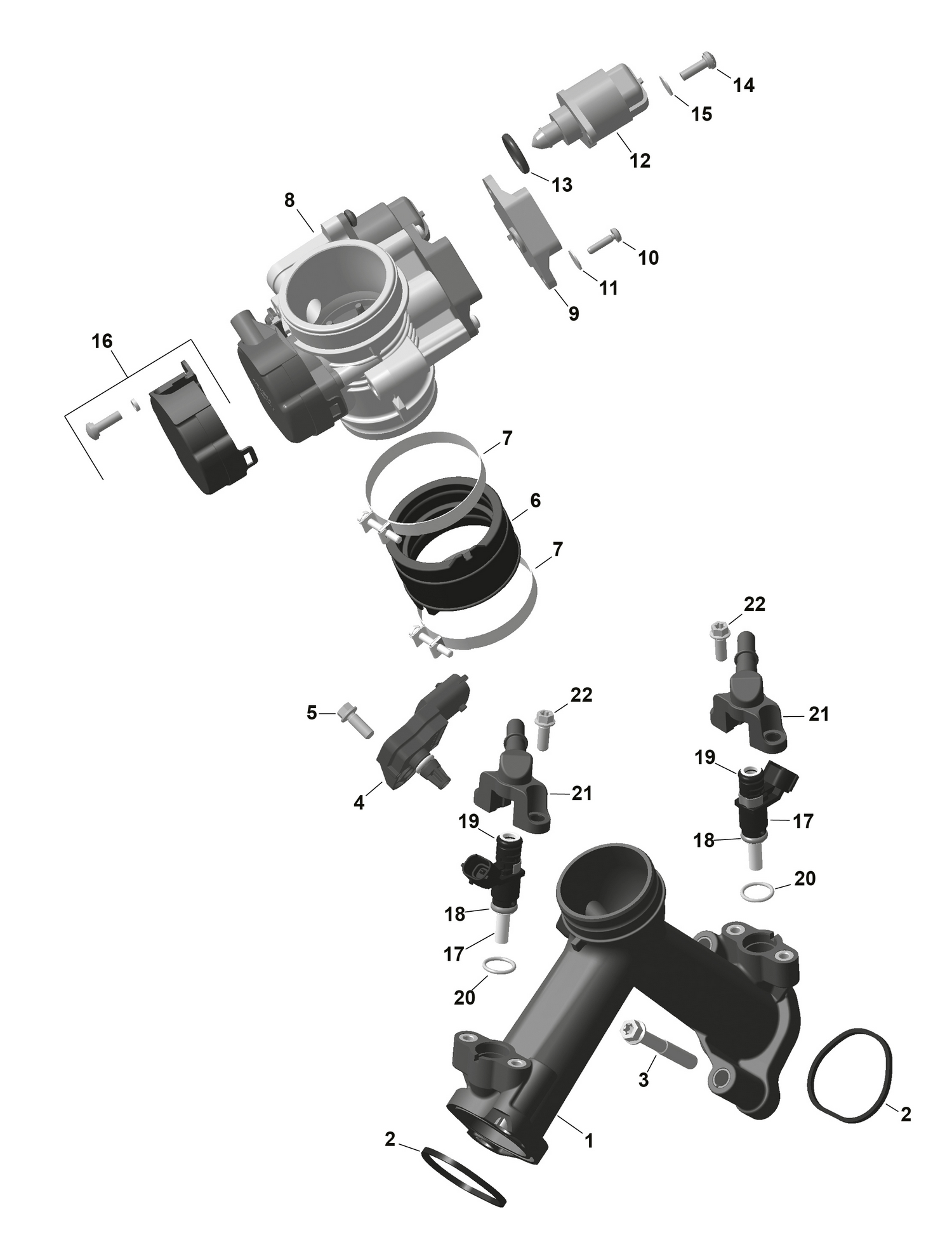

01- Rotax - Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold
420667581
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420630642
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M8 X 55
420440397
Superseded by 420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pressure And Temperature Sensor
420874658
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 12
420440149
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Intake Adaptor
420267480
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Clamp
420251480
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Throttle Body Ass'y
420685326
|
$709.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Position Sensor
415129603
Superseded by 420866120
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#11
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#12
Idle Air Control Valve
420665941
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-Ring
420631780
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Snap Ring
420845710
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Binding Head Screw M5 X 16
420440911
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cover Kit
420281540
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Injection Valve Ass'y
420874840
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-Ring
420431890
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-Ring
420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
Fuel Rail
420874901
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
