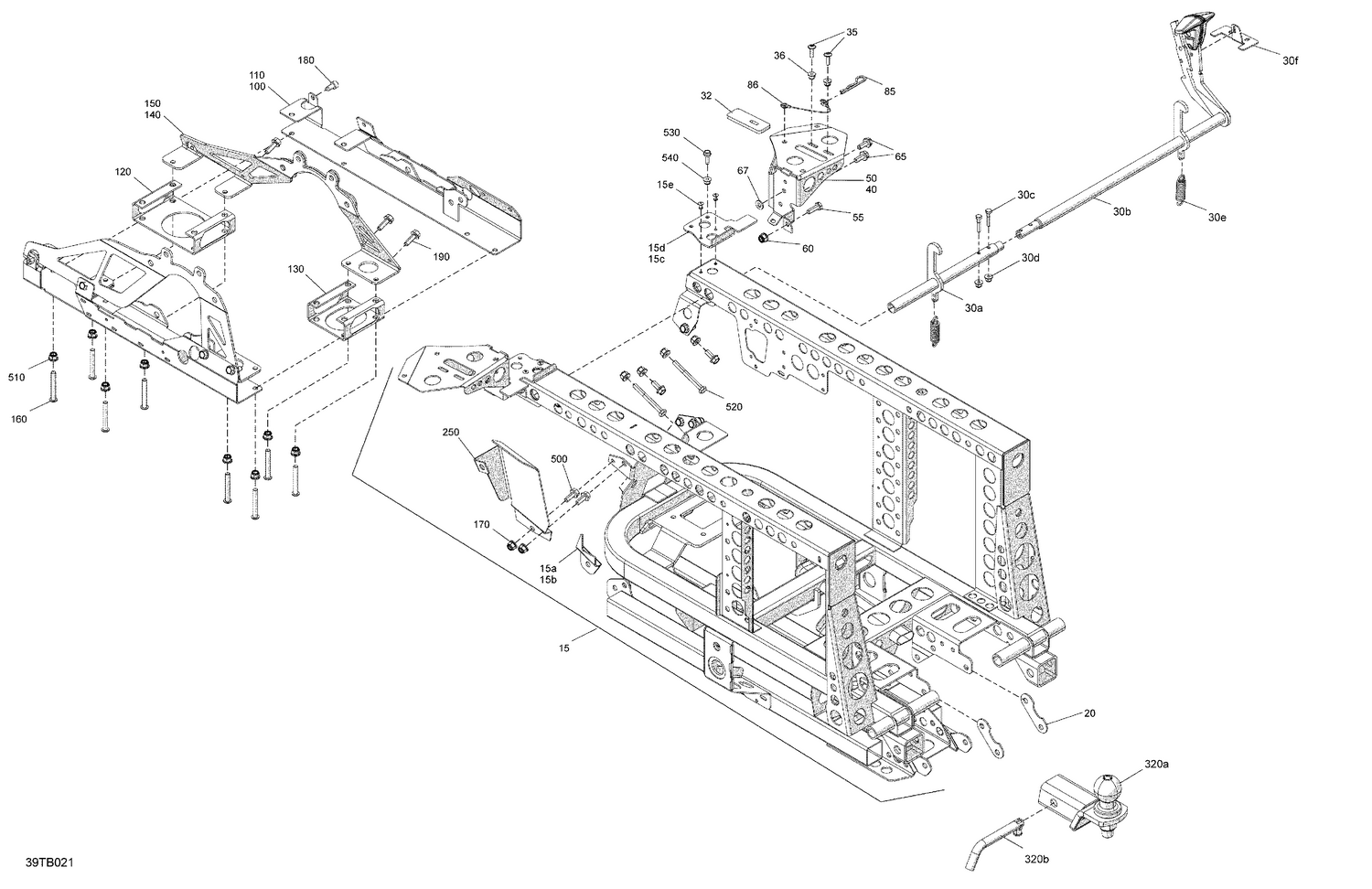

06- Frame - System - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#15
Rear Frame
705208904
|
$1,039.99 | ||
|
Available to order. Add to View Price |
|||
|
#15a
LH Grip Plate
605356426
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15b
RH Grip Plate
605356425
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15c
LH Cargo Support
705204600
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15d
RH Cargo Support
705204601
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15e
Stavex Rivet
293150144
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
Support Plate
705203564
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#30a
LH TUBE WELDED - Call your local BRP dealership
705203669
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
RH Tube
705203670
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Hex. Cap Screw M6 X 30
207063054
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30e
Spring
415107100
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30f
Lever Support
705203834
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Rubber Collar
708301280
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#40
LH Rear Fender Support
705203611
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
RH Rear Fender Support
705203612
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
Hexagonal Screw
250000556
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
Washer
503192494
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#85
Cotter Spring
505073670
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#86
Retainer Cable
293750069
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
LH Lower Beam Reinforcement
705203724
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
RH Lower Beam Reinforcement
705203725
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Front Support Plate
705203726
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Rear Support Plate
705203727
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
LH Differential Support Reinforcement
705203728
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
RH Differential Support Reinforcement
705203729
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Torx Screw Scotch Grip M8X60
250000777
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#180
Forming Screw HD.DIN.7500E
250000678
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#190
Hex Forming Screw DIN.7500D
250000376
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#250
Heat Shield
707601726
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#320a
Trailer Hitch Kit
705208232
Superseded by 705210328
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#320b
Hitch Pin
705204490
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Unavailable |
|||
|
#510
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#520
Hex. Flange Screw M8 X 75
207687544
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#530
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
