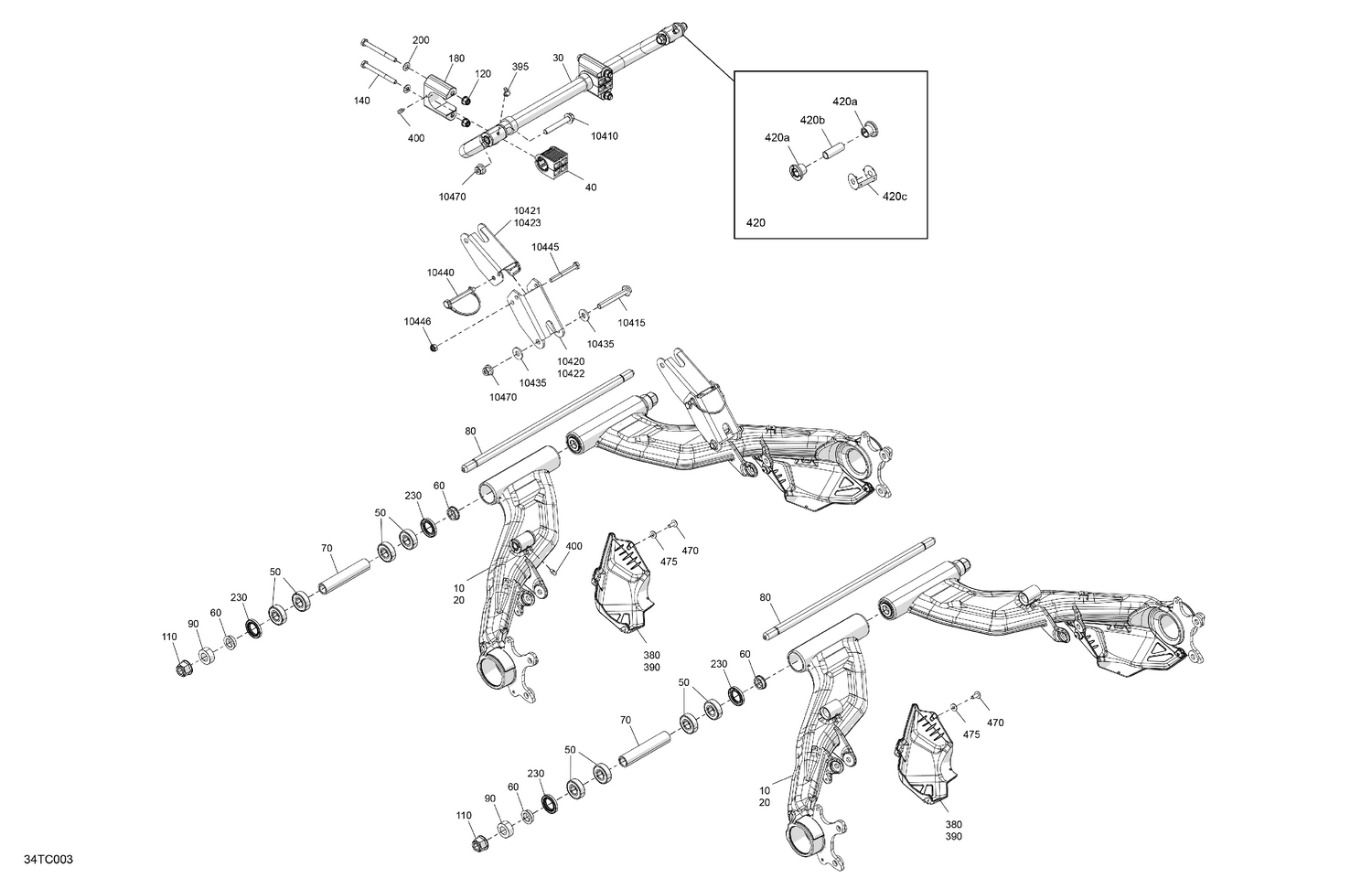

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
LH Swing Arm
706003041
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RH Swing Arm
706003042
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sway Bar
706003050
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004641
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#50
Ball Bearing
293350145
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#60
Spacer
706001282
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Spacer
706002259
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Axial Pivot M16
706001664
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M17
250200112
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M16
233211466
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140
Hex. Screw M8 X 85
250001035
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#180
Bushing Holder
706001099
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#230
Seal
293200144
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
LH Protector
706005101
Superseded by 706003052
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#390
RH Rear CV Joint Guard
706005102
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#395
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
Grease Fitting
250000315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#420
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#420b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#420c
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#470
Tork Screw M6 X 16
250000534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#475
Flat Washer
250200039
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#10470
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10410
Hex. Flange Screw M10 X 65
207606536
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#10415
Hex. Screw M10 X 70
250000520
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#10420
RH Linkage Outer Part
706001765
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10422
LH Linkage Outer Part
706001600
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10421
RH Linkage Inner Part
706001766
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10423
Linkage Inner Part
706001601
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10435
Washer
505073634
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#10440
Pin Onto The Shaft
706001602
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10445
Hex. Screw M8 x 65
207086544
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10446
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
