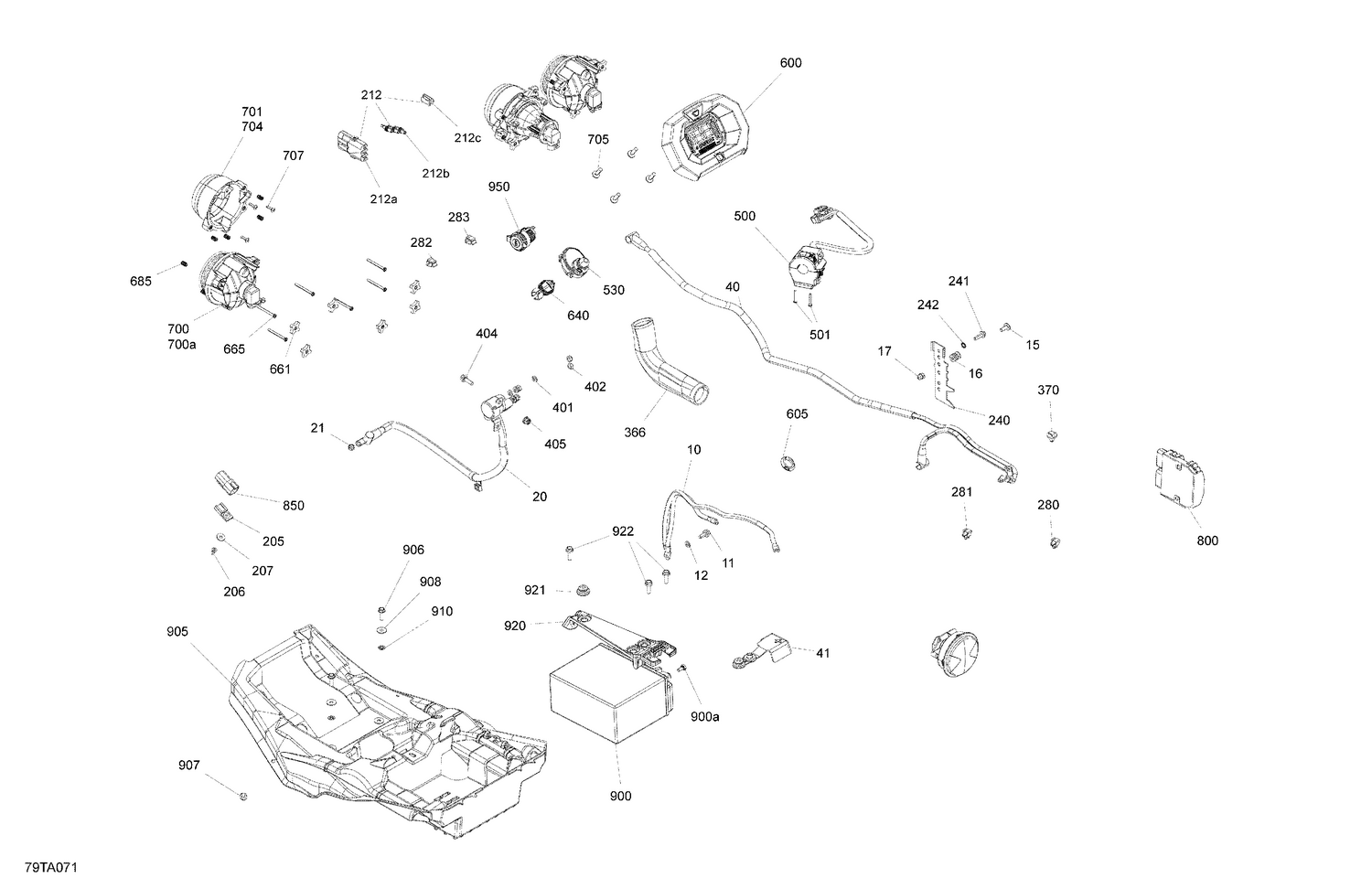

08- Electric - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Ground Cable
710004382
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Flat Washer
224061121
|
$0.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Domed Nut M6
232361493
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
Positive Cable
710004377
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Positive Cable
710004376
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Battery Cable Cap
710006729
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#205
Clip
270000141
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#206
Pop Rivet 3/16"
390402300
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#207
Washer
391301600
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#212
Connector Ass'y
710000917
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#212a
Female Terminal Housing, 3 Circuits
278000281
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#212b
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#212c
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#240
Connector Bracket
710004118
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hex. Flange Screw M6 X 20
210262040
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#242
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#280
Clip
414227300
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#281
Clip
414227300
|
$1.69 | ||
|
Unavailable |
|||
|
#282
Clip
414227300
|
$1.69 | ||
|
Unavailable |
|||
|
#283
Clip
414227300
|
$1.69 | ||
|
Unavailable |
|||
|
#366
Soft Protection Sleeve
710007255
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#370
Mount Dart
293730040
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#401
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
Unavailable |
|||
|
#402
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Unavailable |
|||
|
#404
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#405
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Multi-Function Handle
710005070
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Socket Head Screw M5 X 35
205053588
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#530
Terminal Dess One-Wire
710007242
Superseded by 515178840
|
$83.49 | ||
|
Available to order. Add to View Price |
|||
|
#600
Multifunction Compact Gauge
710007407
|
$379.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#605
Safety Nut (DESS Switch)
278002963
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#640
Grey Key RFID
710004964
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#661
Handle
572106600
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#665
Hex. Screw K40 X 45
250000718
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#685
Spring
517168600
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#700
Low Beam
710006177
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#701
RH High Front Housing
710002291
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#704
LH High Front Housing
710002292
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#705
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#707
Phillips Screw K40 X 16
250000723
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800
Voltage Regulator
710005842
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#802
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#803
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#850
Housing
710003006
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#900
Battery YUASA YTX20L
410301203
|
$149.95 | ||
|
Unavailable |
|||
|
#900a
Battery Bolt Kit
250000282
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#905
Battery Support
710006561
Superseded by 710008370
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#906
Hexagonal Head Screw
210262050
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#907
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#908
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#910
Push Nut
732610072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#920
Retaining Plate
710002404
Superseded by 710009129
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#921
Rubber Stopper
705014429
|
$6.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#922
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#950
DC Outlet
710001248
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
