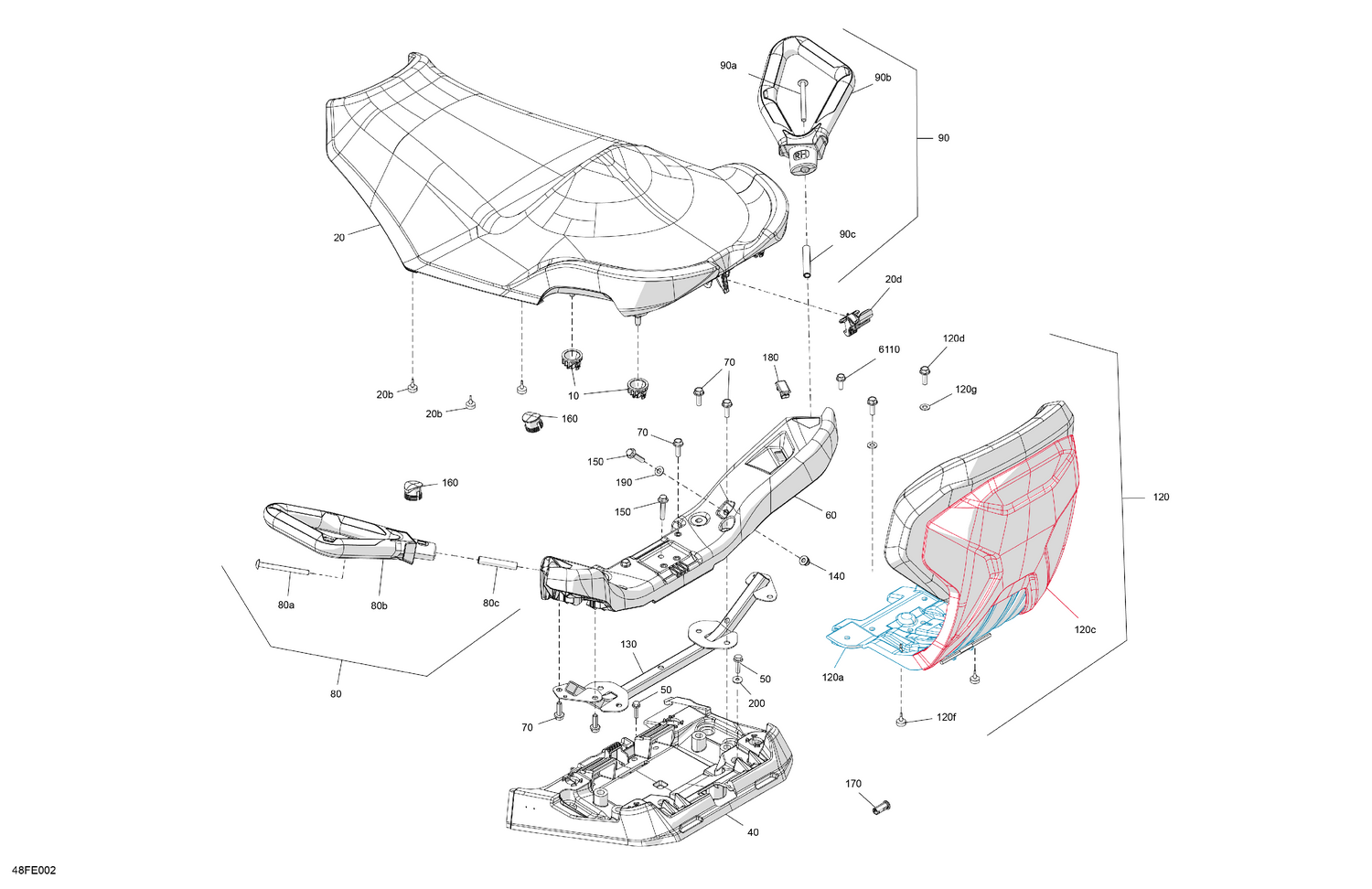

07- Body - Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Stopper
708003609
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
2 Places Seat
708003927
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#20b
Seat Stopper
708003866
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#20d
Seat Latch
708003926
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#40
Seat Anchorage
708003811
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Handle Support
708003812
Superseded by 708003812
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#80
LH Passenger Seat Handle Kit
703500806
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#80a
Torx Truss M8 X 90
250000806
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#80b
LH Passenger Seat Handle Kit
703500806
|
$66.49 | ||
|
Unavailable |
|||
|
#80c
Sleeve
705006129
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
RH Passenger Seat Handle Kit
703500807
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#90a
Torx Truss M8 X 90
250000806
|
$7.69 | ||
|
Unavailable |
|||
|
#90b
RH Passenger Seat Handle Kit
703500807
|
$66.49 | ||
|
Unavailable |
|||
|
#90c
Sleeve
705006129
|
$14.99 | ||
|
Unavailable |
|||
|
#120
Backrest Support Ass'y
708004004
|
$459.99 | ||
|
Unavailable |
|||
|
#120a
Backrest Support
708003937
|
$199.99 | ||
|
Unavailable |
|||
|
#120c
Backrest Trim
708003191
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#120d
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
Unavailable |
|||
|
#120f
Seat Stopper
708003866
|
$4.69 | ||
|
Unavailable |
|||
|
#120g
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#130
Handle Support Reinforcement Ass'y
708004010
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Hex. Flange Screw M8 X 40
207684054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#160
Cap
708003592
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#170
Pilot Lamp Cap
710003910
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#180
Insert
708001511
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#190
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Unavailable |
|||
|
#200
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#6110
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
Unavailable |
|||
