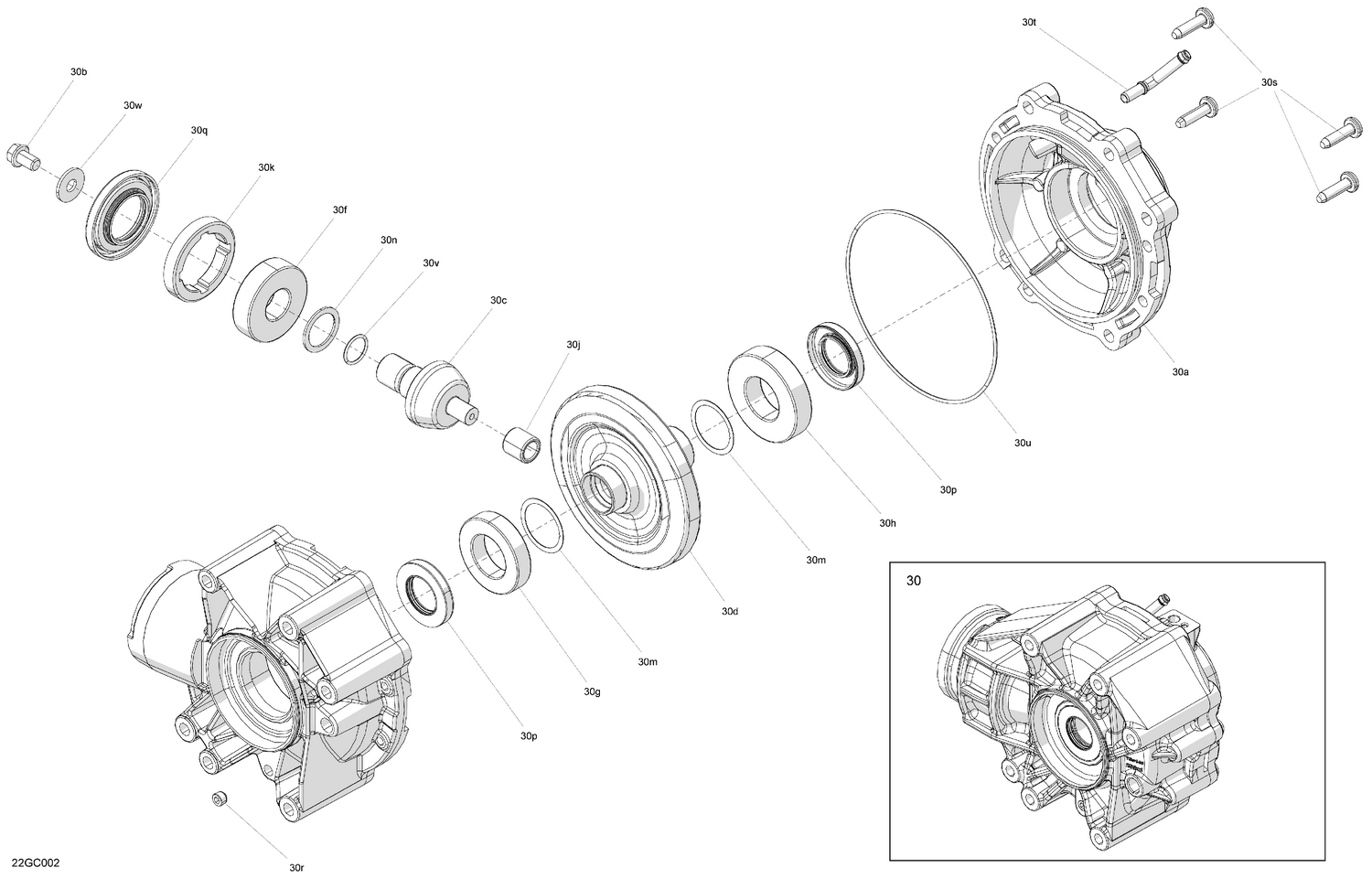

04- Drive - Final Drive Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Final Drive Unit
703501019
|
$932.49 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Rear Cover
705502734
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Hex. Flange Screw M10 X 16 S.GRIP
250001044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Pinion 10 Teeth
705502053
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Gear 36 Teeth
705502682
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Ball Bearing
705502736
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30g
Ball Bearing
705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#30h
Ball Bearing
705502738
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#30j
Needle Bearing
705502058
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30k
Nut
705502059
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30m
Differential Shim 0.02 mm
705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#30n
Pinion Gear Shim 1.67 mm
705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#30p
Oil Seal
705501556
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#30q
Oil Seal
705502062
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#30r
Plug Drain
705501724
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#30s
Screw
705502063
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#30t
Breather Tube
705501584
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30u
Seal
705502064
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#30v
O-Ring
705502065
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#30w
Flat Washer M10
250200014
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
