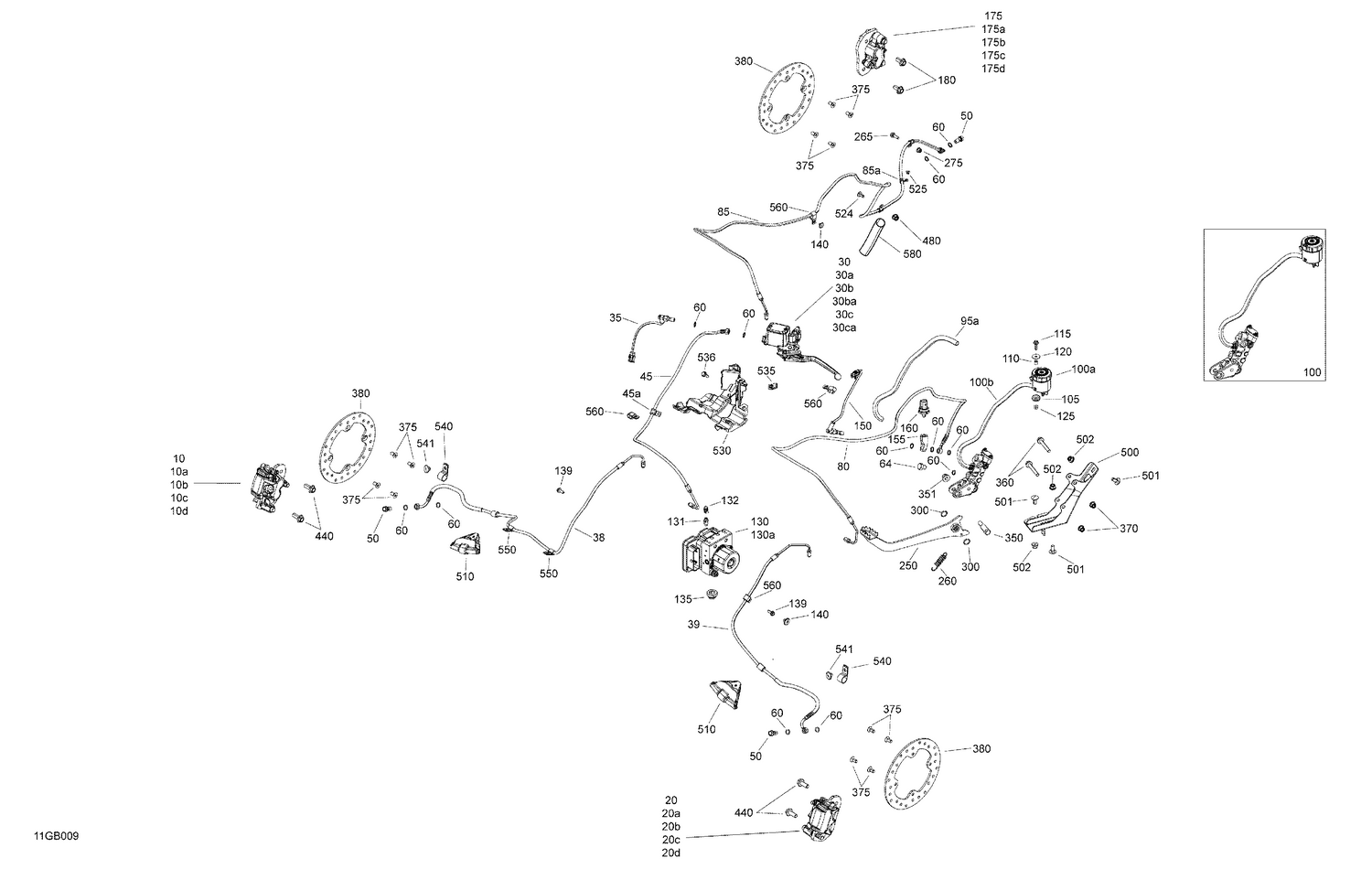

03- Mechanic - Brake System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
RH Front Caliper Ass'y
705600861
|
$270.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a
RH Organic Brake Pad Kit
705601014
|
$42.49 | ||
|
Unavailable |
|||
|
#10b
Pin Set
705601016
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Bleeding Screw
705601017
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10d
Retaining Spring
705601018
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
LH Front Caliper Ass'y
705600862
|
$270.49 | ||
|
Available to order. Add to View Price |
|||
|
#20a
Pin Set
705601016
|
$9.26 | ||
|
Unavailable |
|||
|
#20b
Bleeding Screw
705601017
|
$6.35 | ||
|
Unavailable |
|||
|
#20c
Retaining Spring
705601018
|
$7.55 | ||
|
Unavailable |
|||
|
#20d
LH Organic Brake Pad Kit
705601015
|
$42.49 | ||
|
Unavailable |
|||
|
#30
LH Front Master Cylinder Ass'y
705601431
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Lever Set
705601013
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Clamp And Screw Kit
507032477
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ba
Hex. Flange Screw M6 X 25
250000447
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Cap Set
219800096
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ca
Screw M4 X 20
415129356
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#35
Brake Switch
705601669
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
RH Front Hose
705601572
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
LH Front Hose
705601573
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Brake Hose
705601574
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#45a
Clamp
293650256
|
$5.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Banjo Bolt (M10 x 1.25 thread)
705600609
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Copper Washer
705601628
|
$4.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
Hex. Screw M10 X 14, Scotch Grip
250000163
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#80
Brake Hose
705601575
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
RH Rear Hose
705601577
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#85a
Clamp
293650256
|
$5.59 | ||
|
Unavailable |
|||
|
#95a
Tubing 10 MM 1000MM Long
219704407
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#100
Rear Master Cylinder Ass'y
705601776
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#100a
Oil Tank
705601020
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#100b
Oil Housing Hose
705601019
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#105
Grommet
414036300
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#110
Bushing
293900112
|
$10.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Hex.Flange Screw M5 X 20
207652044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Flat Washer
224060201
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#125
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
VCM Module
703500984
|
$1,539.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a
Shock Damper
710003279
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#131
Bleeder Screw
705600502
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#132
Bleeder Bolt Cap
705601190
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#135
Shock Damper
710003279
|
$10.49 | ||
|
Unavailable |
|||
|
#139
Hex. Flange Screw M6 X 16
210261640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#140
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#150
Dual Brake Switch
705601670
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#155
Banjo Coupling
705601617
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Pressure Sensor
705601578
|
$76.49 | ||
|
Available to order. Add to View Price |
|||
|
#175
RH Rear Brake Caliper
705600859
Superseded by 705602190
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#175a
Pin Set
705601016
|
$9.26 | ||
|
Unavailable |
|||
|
#175b
Bleeding Screw
705601017
|
$6.35 | ||
|
Unavailable |
|||
|
#175c
Retaining Spring
705601018
|
$7.55 | ||
|
Unavailable |
|||
|
#175d
RH Organic Brake Pad Kit
705601014
|
$42.49 | ||
|
Unavailable |
|||
|
#180
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#250
Deep Black, Brake Pedal
705601155
Superseded by 705602163
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Brake Pedal Spring
705600792
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#265
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#275
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
O-Ring
293300144
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#350
Shoulder Screw M10
250000513
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#351
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#360
Hex. Flange Screw M8 X 55
207685544
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#370
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#375
Torx Screw M8 X 16, Scotch Grip
235381646
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#380
Disc Brake
705600999
Superseded by 705601997
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#440
Hex. Flange Screw M10 X 25
207502546
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#480
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#500
Brake Pedal Bracket
705202000
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#502
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#510
Front Hose Guard
705602016
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#524
Torx Screw M6 X 16
250000755
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#525
Pop Rivet 3/16"
390402400
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Front Hose Bracket
705600983
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#535
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#536
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Open Clamp
518321570
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#541
Pop Rivet 3/16"
390402300
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#550
Clamp
293650219
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#560
Clamp
293650220
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#580
Tubing 25 MM 1000MM Long
219704402
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
