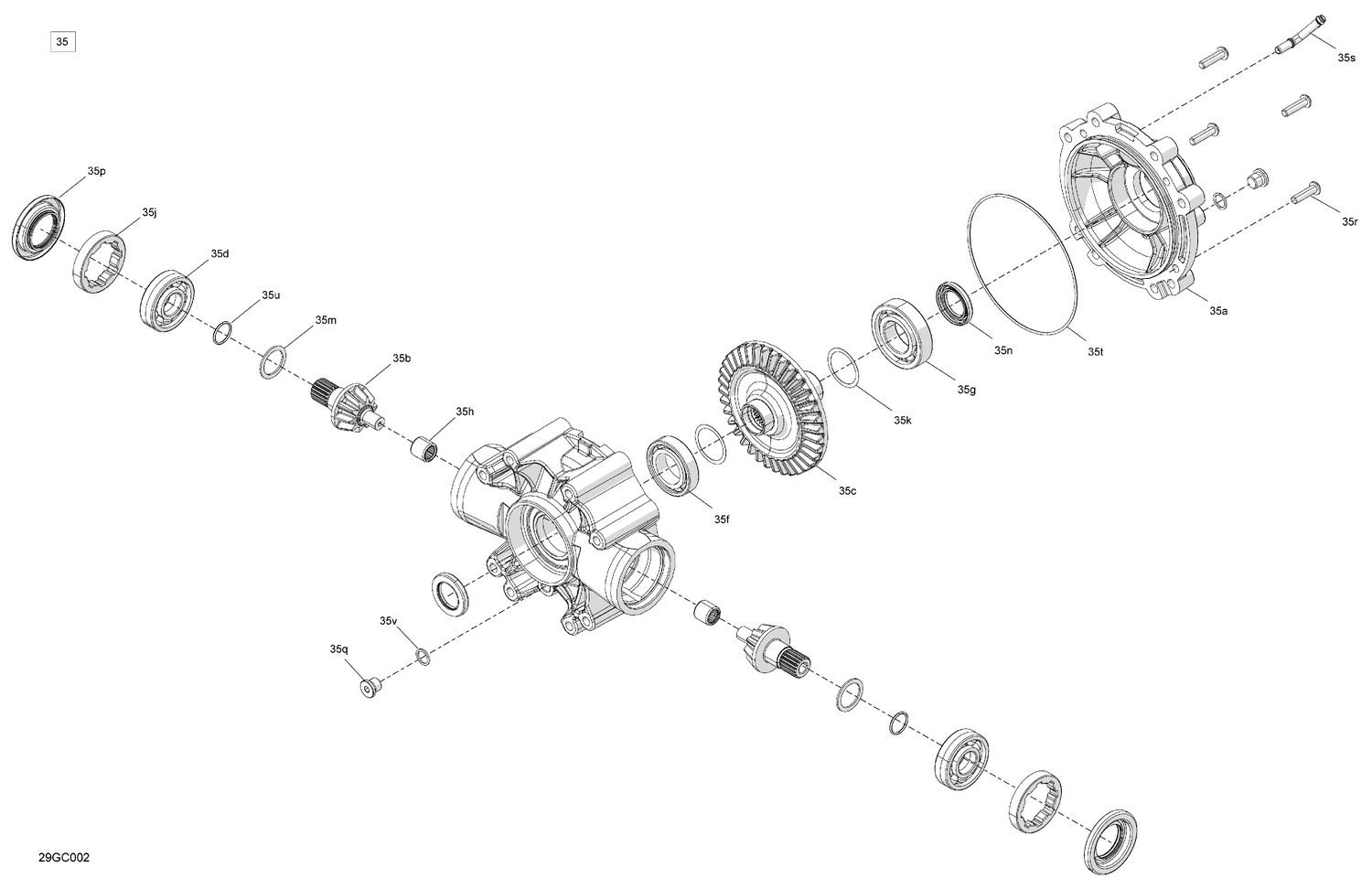

04- Drive - Middle Drive Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35
Middle Drive Unit Ass'y
705502369
|
$1,379.99 | ||
|
Available to order. Add to View Price |
|||
|
#35a
Rear Cover
705502390
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#35b
Pinion 10 Teeth
705502823
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#35c
Gear 36 Teeth
705502822
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#35d
Ball Bearing
705502736
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#35f
Ball Bearing
705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#35g
Ball Bearing
705502738
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#35h
Needle Bearing
705502058
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#35j
Nut
705502059
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35k
Differential Shim 0.02 mm
705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#35m
Pinion Gear Shim 1.67 mm
705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#35n
Oil Seal
705501996
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35p
Oil Seal
705402405
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#35q
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#35r
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership
205483046
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#35s
Breather Tube
705501584
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35t
Seal
705502064
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#35u
O-Ring
705502065
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#35v
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
