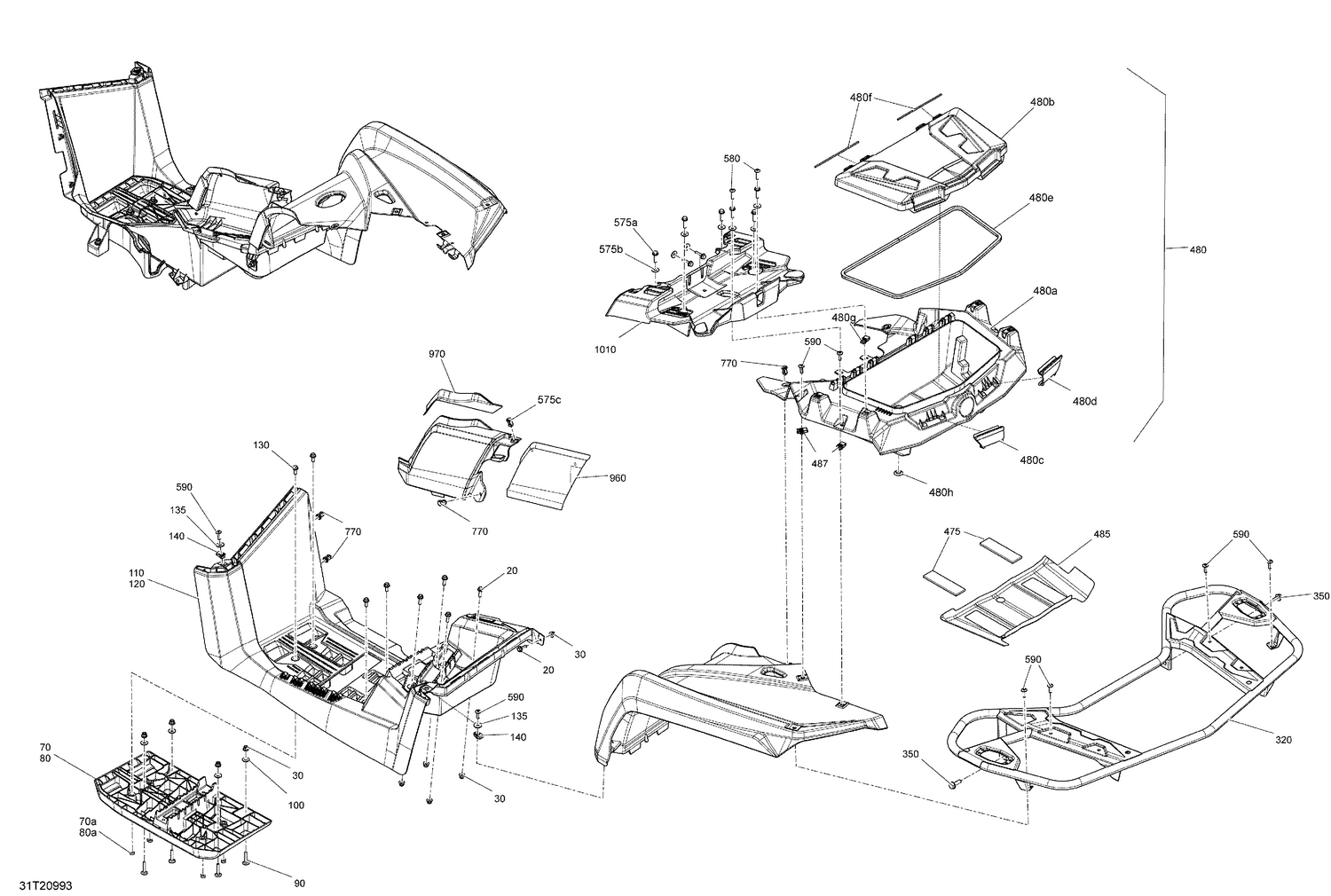

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
LH Structural Footboard
705011540
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#70a
Square Nut M6
232862412
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
RH Structural Footboard
705011542
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#80a
Square Nut M6
232862412
|
$1.49 | ||
|
Unavailable |
|||
|
#90
Carriage Bolt M6 X 35
207763554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#100
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#110
LH Footrest Max
705003525
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
RH Footrest Max
705007724
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Hex. Flange Screw M6 X 16
207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#135
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#140
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Black - Front Luggage Rack
705013392
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#350
Hex Flange Screw M8 X 25 S.Grip
250001016
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#475
Rubber Pad
293830163
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#480
Storage Cover Kit
715006462
|
|||
|
Unavailable |
|||
|
#480a
Storage Cover
705007136
Superseded by 715004412
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#480b
Storage Cover
715004412
|
$219.99 | ||
|
Unavailable |
|||
|
#480c
LH Box Rear Latch
705007448
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#480d
RH Box Rear Latch
705007921
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#480e
Was 715900411 Neoprene Seal
219704452
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#480f
Retaining Rod
705007531
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#480g
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#480h
CAP - Call your local BRP dealership
414859400
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#485
Heat Deflector Sheet
705007487
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#487
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#575a
Hex Flange Screw M6 X 25
250000841
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#575b
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#575c
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#580
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#590
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#770
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#960
Heat Shield
705006870
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#970
Heat Shield
705006871
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Seat Holder
705007948
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
