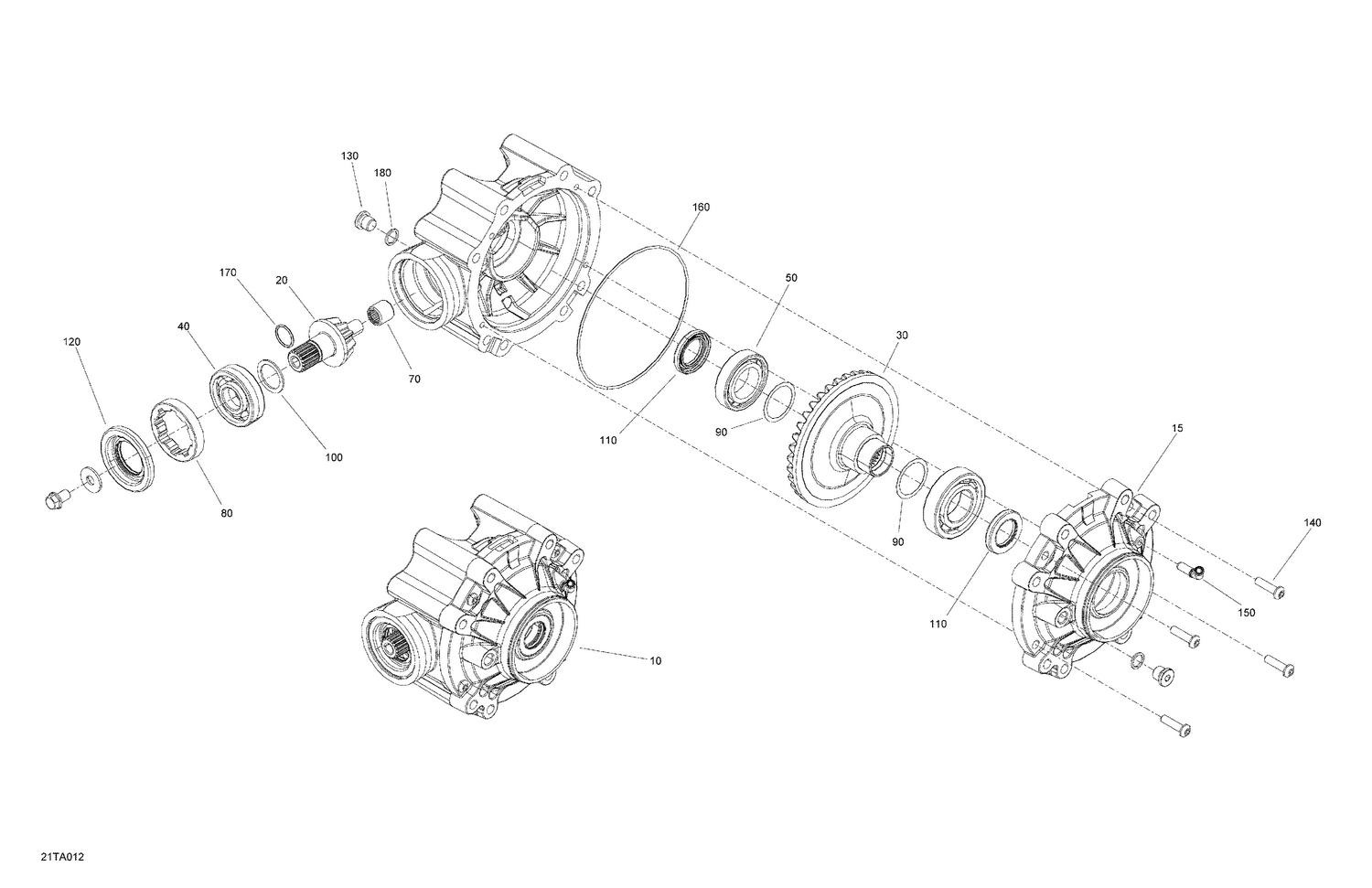

04- Drive - Rear Section - Final Drive Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Rear Drive Unit Ass'y
705502370
|
$969.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Rear Cover
705502389
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pinion 10 Teeth
705502823
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Gear 36 Teeth
705502822
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Ball Bearing
705502055
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Ball Bearing
705502056
Superseded by 705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Needle Bearing
705502058
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Nut
705400661
Superseded by 705401603
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
Differential Shim 0.02 mm
705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#100
Pinion Gear Shim 1.67 mm
705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Oil Seal
705501996
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Oil Seal
705402405
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#130
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership
205483046
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#150
Breather Tube
705501584
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
Seal
705502064
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#170
O-Ring
705502065
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#180
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
