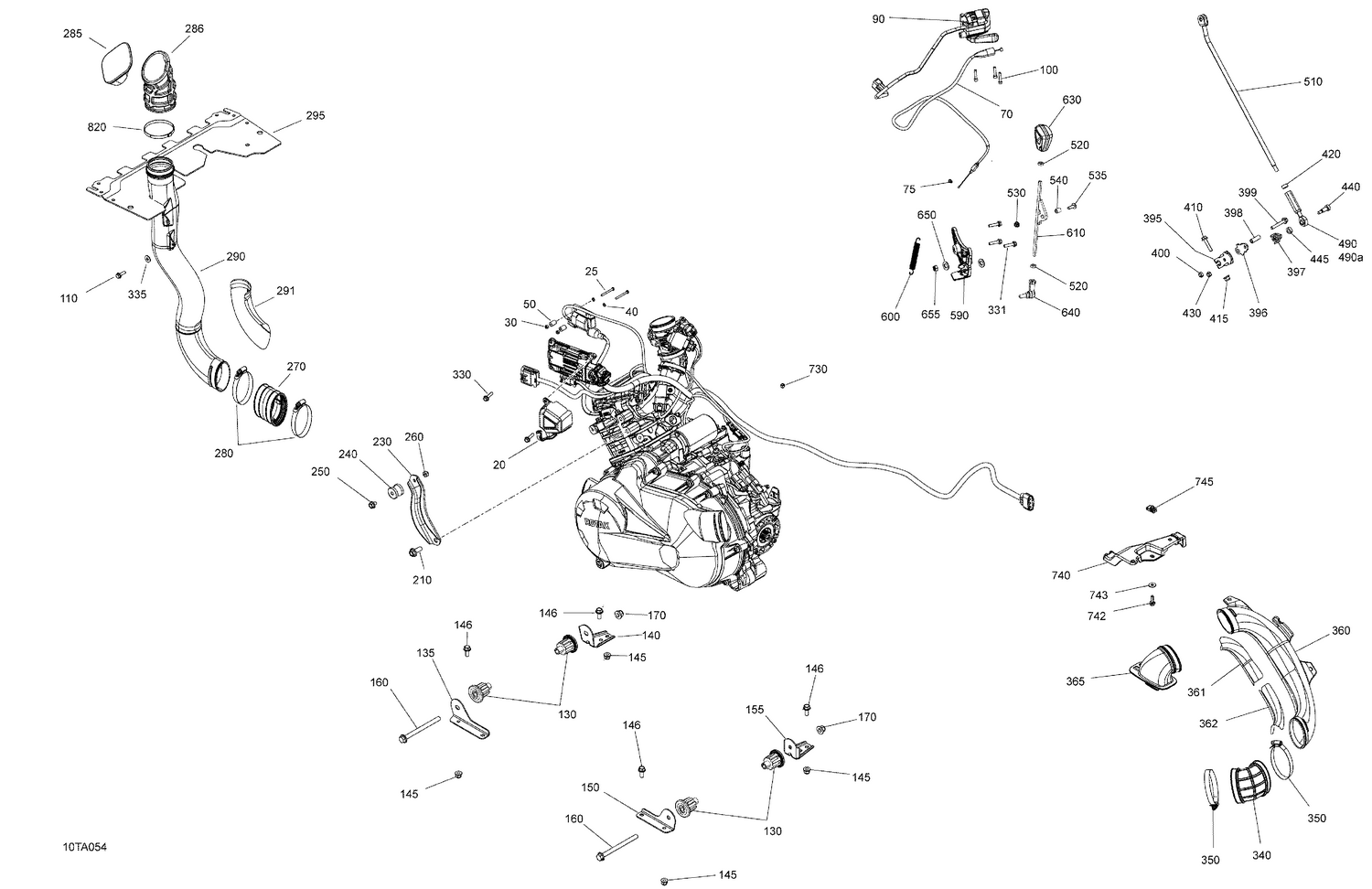

02- Engine - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
Cover
707000945
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Elastic Stop Nut M4
232541414
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
Bushing
293900117
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#70
Throttle Cable
707000955
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#75
Cable Guide
707000434
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Throttle Handle
707002409
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Socket Head Screw M5 X 25
205052588
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
Vibration Damper
707001169
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#135
LH Front Engine Bracket
707001407
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
RH Front Engine Bracket
707001408
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Rear Engine Bracket
707001409
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#155
RH Rear Engine Bracket
707001410
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Screw M10 X 25
207602544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#230
Upper Engine Support
707001411
Superseded by 707003322
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Rubber Isolator
707000949
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
Flange Screw M8 x 10, Scotch Grip
207581046
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Flexibale Adaptor
707002585
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#285
CVT Filter
707001786
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#286
CVT Inlet
707001864
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
CVT Air Inlet
707002289
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#291
Heat Shield
707001638
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#295
Upper Water Deflector
707001124
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#330
Screw PT K60 X 30
250000949
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#331
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#335
Flat Washer M6, Stainless
234062600
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#340
CVT Air Outlet Adaptor
707001425
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#350
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#360
CVT Air Outlet
707001413
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#361
Heat Shield
707001639
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#362
Heat Shield
707001641
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#365
CVT Cooling Duct Out
706600024
Superseded by 706600400
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#395
Lever
707000503
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#396
Pivot Plate
707000507
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#397
Spring
707000310
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#398
Bushing
293900079
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#399
Hex. Flange Screw M6 X 40
207664044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#415
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Hex. Nut M8, LH Threads
250100144
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#430
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Unavailable |
|||
|
#440
Socket Head Screw M8 X 16
250000669
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#445
Bushing
293900028
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#490
Ball Joint Ass'y
707000966
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#490a
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#510
Shifter Rod
707002382
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#520
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Unavailable |
|||
|
#530
Hex. Flange Nut M6
233161414
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#535
Torx Screw M6 X 20, Scotch Grip
250000446
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#540
Bushing
293900019
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#590
Lever Support
707002439
Superseded by 707003054
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600
Spring
707000577
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Shift Arm
707000840
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#630
Lever Trim
707000965
Superseded by 707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#640
RH Ball Joint
707001959
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#650
Washer
506151252
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#655
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
Unavailable |
|||
|
#730
Oetiker Clamp
293650100
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#740
Air Outlet Support
707003075
|
|||
|
Unavailable |
|||
|
#742
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#743
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#745
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#820
Crimp Clamp
293650240
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
