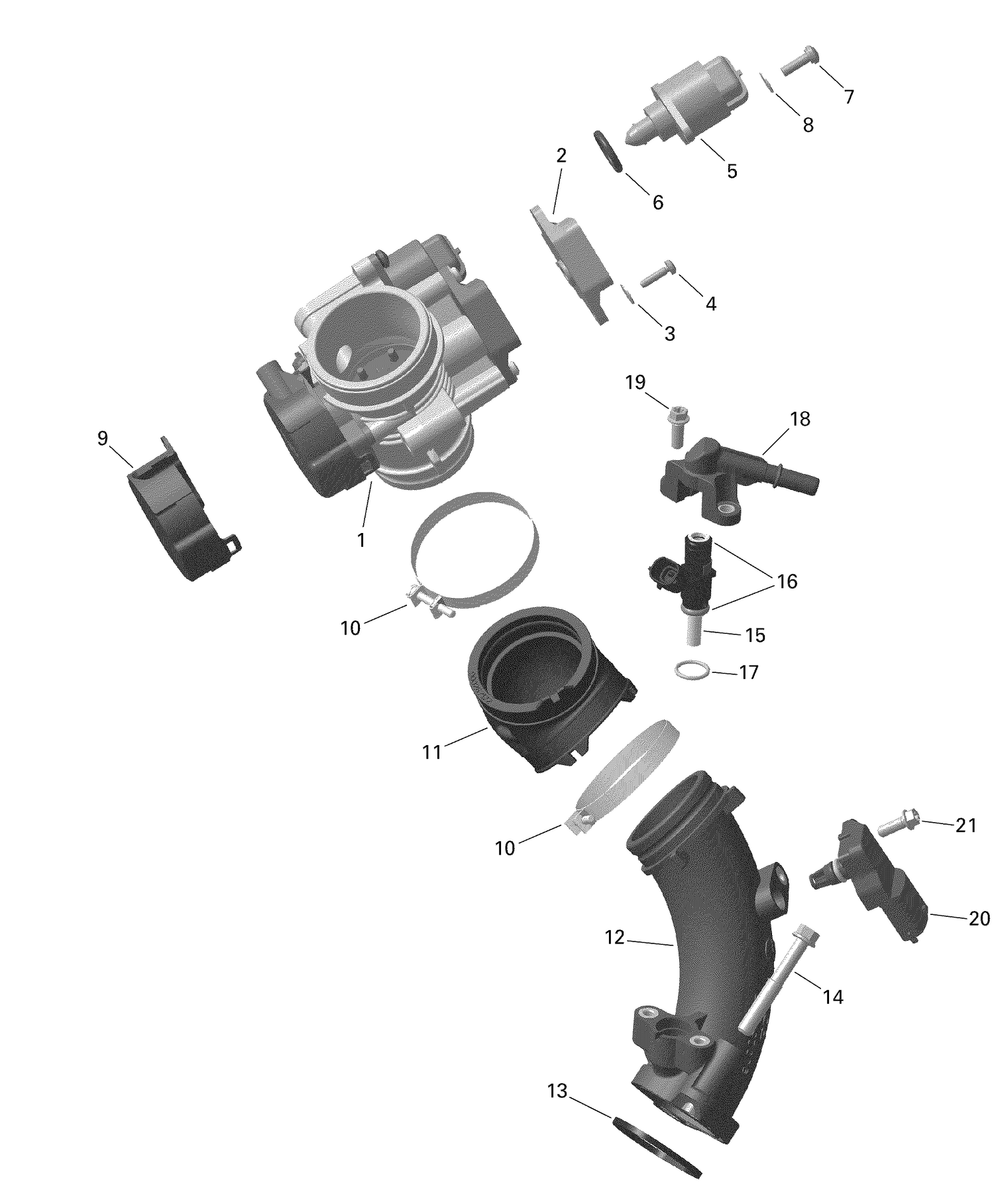

01- Rotax - Air Intake Manifold And Throttle Body - 450 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Throttle Body Ass'y
420685326
|
$709.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Not Available As Spare Part - Potentiometer
|
|||
|
Unavailable |
|||
|
#3
Not Available As Spare Part - Lock Washer
|
|||
|
Unavailable |
|||
|
#4
Not Available As Spare Part - Oval Head Screw
|
|||
|
Unavailable |
|||
|
#5
Idle Air Control Valve
420665941
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-Ring
420631780
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Snap Ring
420845710
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
Binding Head Screw M5 X 16
420440911
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Cover Kit
420281540
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clamp
420251480
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Intake Neck
420267172
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Intake Adaptor
420267527
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Gasket
420630642
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Torx Flange Screw M8 X 55
420440397
Superseded by 420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
Injection Valve Ass'y
420874849
Superseded by 420874886
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-Ring
420631295
Superseded by 420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
Fuel Rail
420874905
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pressure And Temperature Sensor
707000995
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Unavailable |
|||
