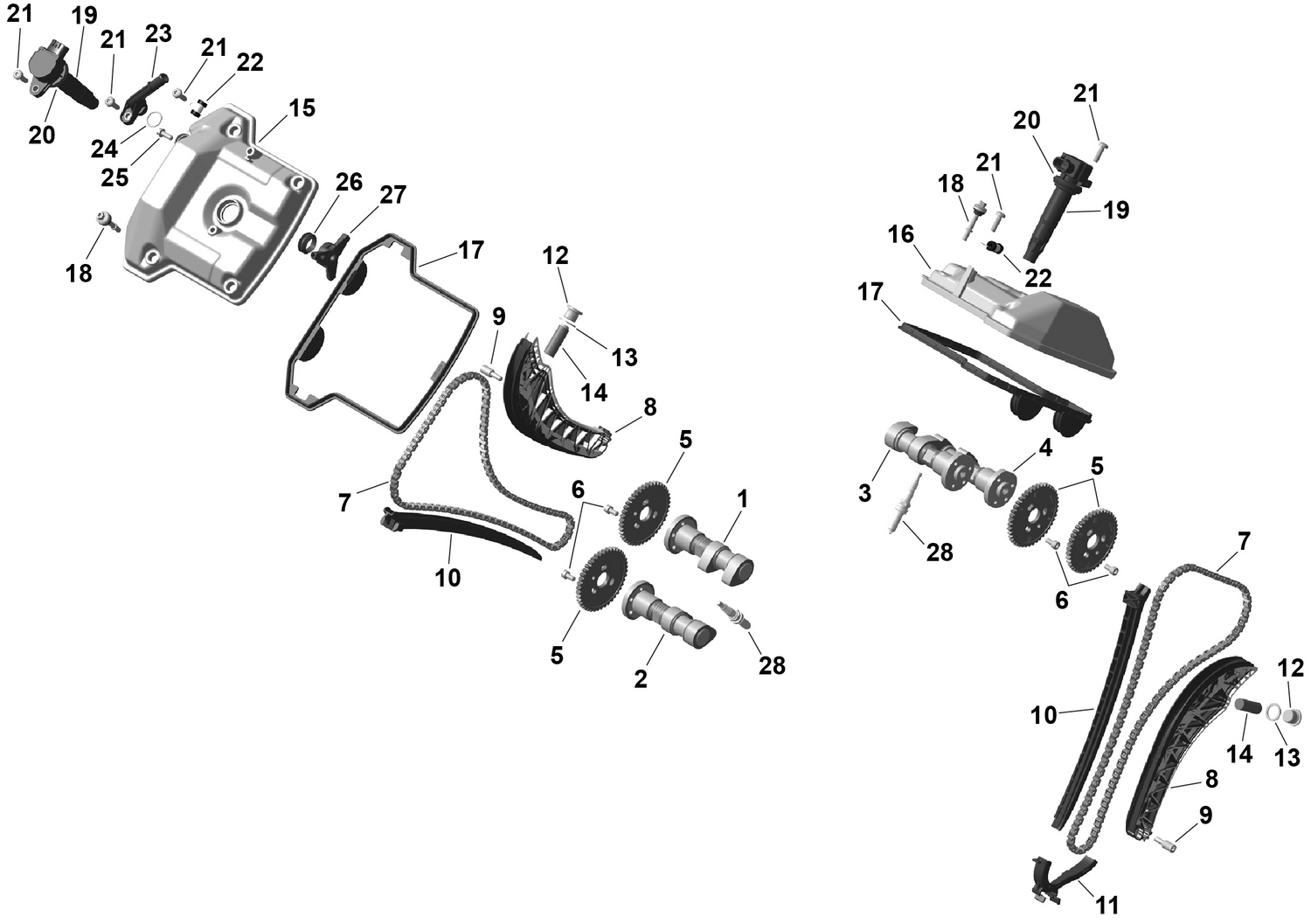

01- Rotax - Valve Train Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Front Camshaft Exhaust 55/0
420620206
|
$171.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Front Camshaft Exhaust 55/0
420620209
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Rear Camshaft Intake 5/55
420281651
|
$171.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Camshaft 55/0 Exhaust
420281652
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Timing Gear 42 Teeth
420254447
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Allen Screw M6 X 12
420840032
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Camshaft Chain
420297085
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Chain Tension Guide
420936531
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bearing Screw M6
420240943
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
Chain Guide
420936521
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
Chain Guide
420251342
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
Plug Screw M16 X 1.5
420240234
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Oil Pressure Regulator Gasket Ring
420430624
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
Chain Tensioner Ass'y
420236392
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Valve Cover
420610181
|
$73.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Valve Cover
420610182
|
$73.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Gasket
420630282
|
$29.49 | ||
|
Unavailable |
|||
|
#18
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ignition Coil Ass'y
420666148
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Protection Cap
420201430
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx Flange Screw M6 X 20
420441383
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
Clamp
420853414
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Blow By Connector
420210631
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-Ring
420631890
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
V-Ring 20S FPM Blow By Valve
420630125
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Separator Gear
420256721
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Spark Plug NGK LMAR8AI-8
420897096
Superseded by 715900785
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
