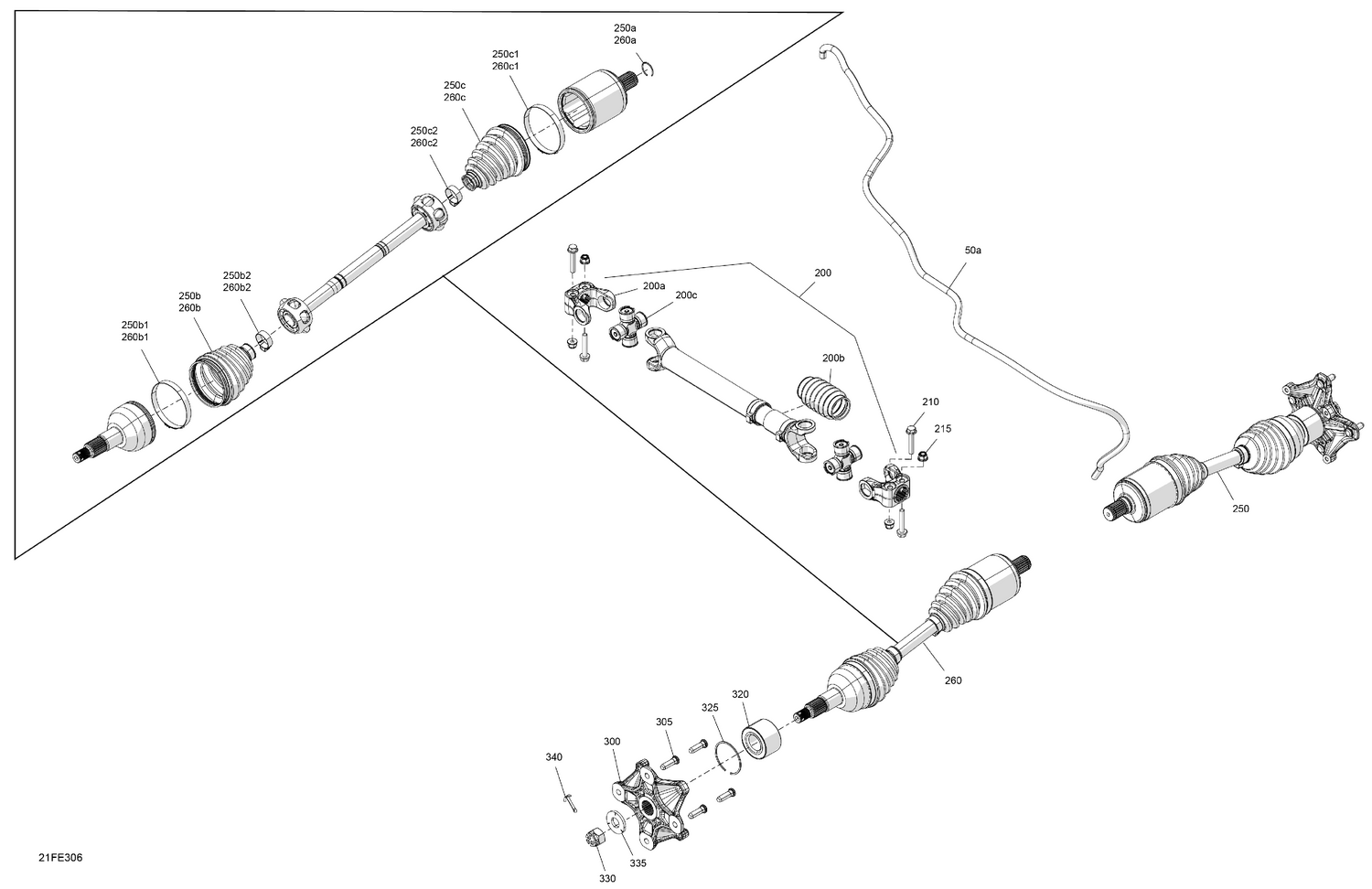

04- Drive - Rear - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#50a
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Rear Drive Axle
705503888
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#200a
Connecting Yoke 20Th
715900974
|
$38.99 | ||
|
Unavailable |
|||
|
#200b
Drive Shaft Boot Kit
715900975
|
$14.30 | ||
|
Unavailable |
|||
|
#200c
Universal Joint Ass'y
715900976
|
$46.49 | ||
|
Unavailable |
|||
|
#210
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#215
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
CV Joint
705503459
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#250a
Circlip Joint
715500463
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#250b
CV Joint Boot Kit
715500531
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#250b1
Clamp, Large
715500537
|
$5.29 | ||
|
Unavailable |
|||
|
#250b2
Small Clamp
715500533
|
$5.29 | ||
|
Unavailable |
|||
|
#250c
CV Joint Boot Kit
715500532
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#250c1
Clamp, Large
715500538
|
$5.29 | ||
|
Unavailable |
|||
|
#250c2
Small Clamp
715500533
|
$5.29 | ||
|
Unavailable |
|||
|
#260
CV Joint
705503459
|
$243.99 | ||
|
Unavailable |
|||
|
#260a
Circlip Joint
715500463
|
$5.35 | ||
|
Unavailable |
|||
|
#260b
CV Joint Boot Kit
715500531
|
$42.49 | ||
|
Unavailable |
|||
|
#260b1
Clamp, Large
715500537
|
$5.29 | ||
|
Unavailable |
|||
|
#260b2
Small Clamp
715500533
|
$5.29 | ||
|
Unavailable |
|||
|
#260c
CV Joint Boot Kit
715500532
|
$42.49 | ||
|
Unavailable |
|||
|
#260c1
Clamp, Large
715500538
|
$5.29 | ||
|
Unavailable |
|||
|
#260c2
Small Clamp
715500533
|
$5.29 | ||
|
Unavailable |
|||
|
#300
Wheel Hub
705503257
|
$101.49 | ||
|
Available to order. Add to View Price |
|||
|
#305
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#320
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#325
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#330
Hex. Flange Castellated Nut M18
232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#335
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#340
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
