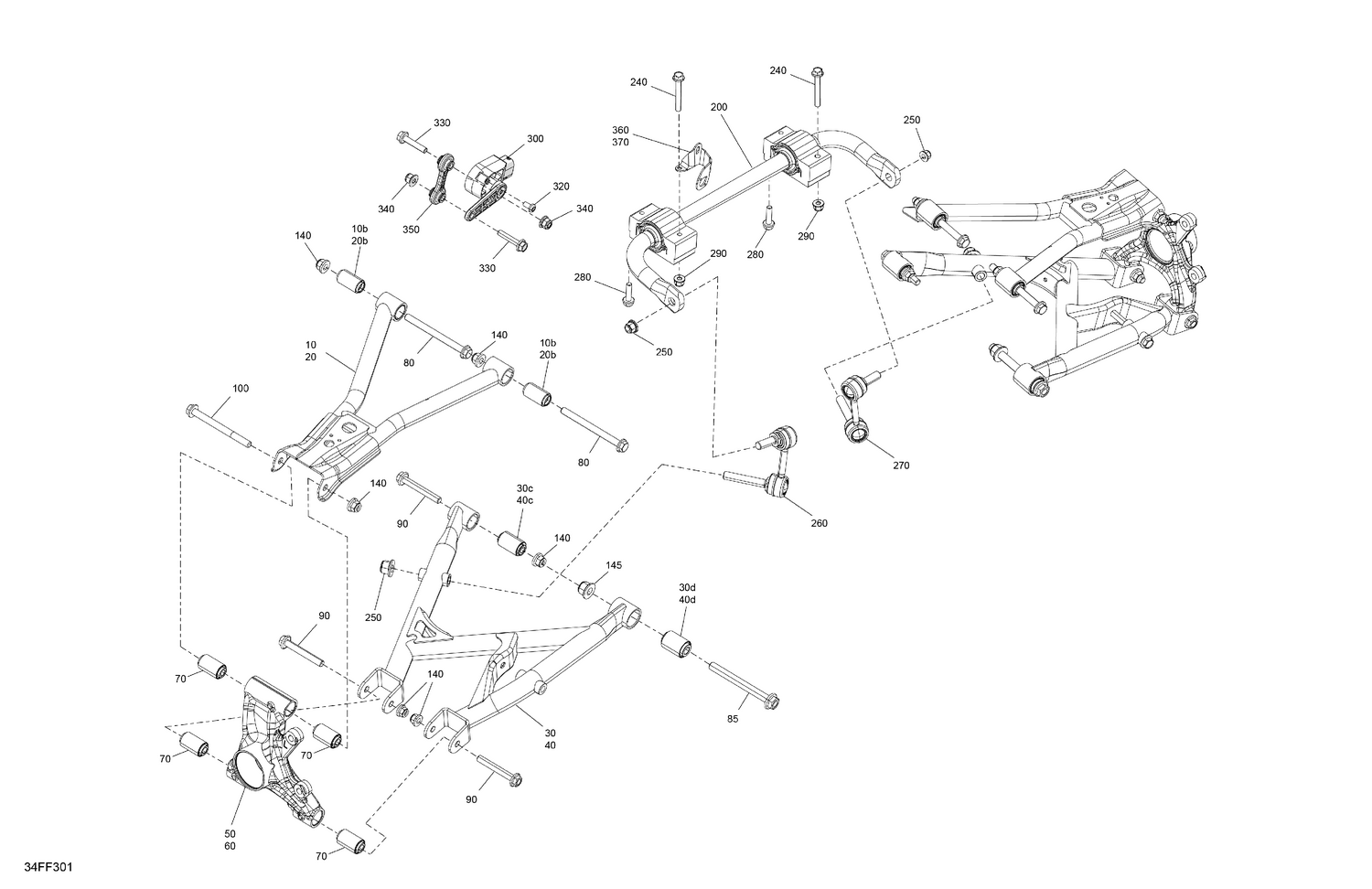

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
LH Upper Suspension Arm Ass'y
715010952
|
$158.99 | ||
|
Unavailable |
|||
|
#10b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RH Upper Suspension Arm Ass'y
715010953
|
$158.99 | ||
|
Unavailable |
|||
|
#20b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#30
LH Lower Suspension Arm Ass'y
715010407
|
$158.99 | ||
|
Unavailable |
|||
|
#30c
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#30d
Suspension Arm Bushing
706005631
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#40
RH Lower Suspension Arm Ass'y
715010408
|
$158.99 | ||
|
Unavailable |
|||
|
#40c
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#40d
Suspension Arm Bushing
706005631
|
$13.76 | ||
|
Unavailable |
|||
|
#50
LH Rear Knuckle
706004297
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
RH Rear Knuckle
706004298
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#80
Hex. Flange Screw Din.6921
230601546
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#85
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex Flange Screw DIN.6921
230601046
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#200
Stabilizer Bar Ass'y
706005303
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#240
Hex. Flange Screw M8 x 60
207686044
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Unavailable |
|||
|
#260
LH Rear Stabilizer Bar Link
706205989
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
RH Rear Stabilizer Bar Link
706205990
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Hex. Flange Screw M8 X 30 Scotch Grip
250001073
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#290
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Suspension Position Sensor
706206376
|
$159.99 | ||
|
Unavailable |
|||
|
#320
Socket Head Screw M5 X 10
205951046
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#330
Hex. Flange Screw M6 X 1.0 X 30
207663056
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#340
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Ball Joint
706005959
|
$19.99 | ||
|
Unavailable |
|||
|
#360
LH Chassis Reinforcement Kit
706206138
|
$35.99 | ||
|
Unavailable |
|||
|
#370
RH Chassis Reinforcement Kit
706206139
|
$35.99 | ||
|
Unavailable |
|||
