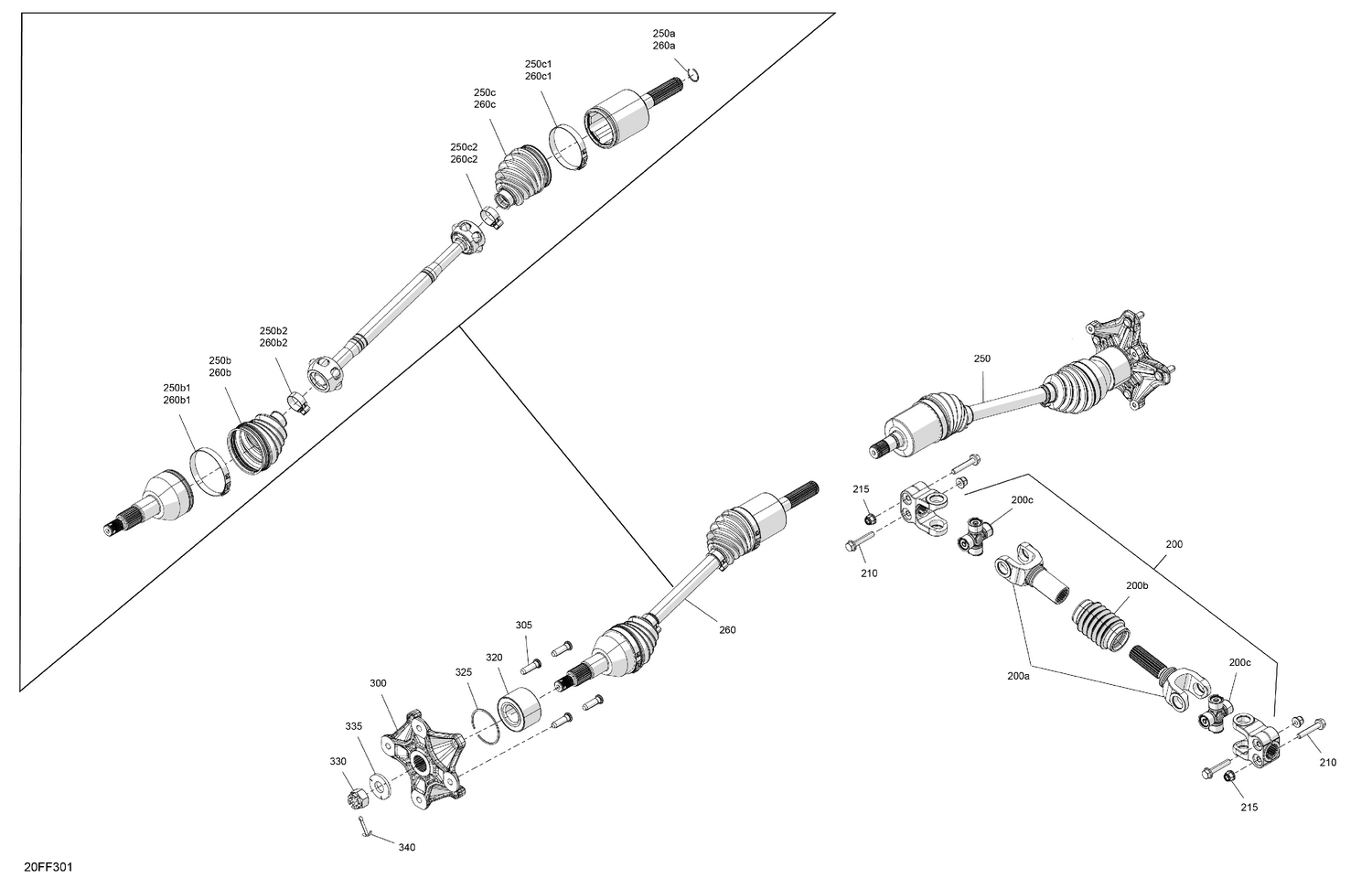

04- Drive - Front - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#200
Front Drive Axle
705403806
|
$190.49 | ||
|
Available to order. Add to View Price |
|||
|
#200a
Connecting Yoke
715900998
|
$38.99 | ||
|
Unavailable |
|||
|
#200b
Drive Shaft Boot Kit
715900999
|
$14.30 | ||
|
Unavailable |
|||
|
#200c
Universal Joint Ass'y
715901000
|
$46.49 | ||
|
Unavailable |
|||
|
#210
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#215
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
RH Front CV Joint
705403312
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#250a
Circlip Joint
715500455
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#250b
CV Boot Joint Kit
715500464
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#250b1
Clamp Small
715500475
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#250b2
Clamp Large
715500476
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#250c
CV Joint Boot Kit
715500528
|
$42.49 | ||
|
Unavailable |
|||
|
#250c1
Large Clamp
715500534
|
$23.49 | ||
|
Unavailable |
|||
|
#250c2
Clamp Small
715500475
|
$5.29 | ||
|
Unavailable |
|||
|
#260
LH Front CV Joint
705403313
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#260a
Circlip Joint
715500455
|
$5.35 | ||
|
Unavailable |
|||
|
#260b
CV Boot Joint Kit
715500464
|
$42.49 | ||
|
Unavailable |
|||
|
#260b1
Clamp Small
715500475
|
$5.29 | ||
|
Unavailable |
|||
|
#260b2
Clamp Large
715500476
|
$4.76 | ||
|
Unavailable |
|||
|
#260c
CV Joint Boot Kit
715500528
|
$42.49 | ||
|
Unavailable |
|||
|
#260c1
Large Clamp
715500534
|
$23.49 | ||
|
Unavailable |
|||
|
#260c2
Clamp Small
715500475
|
$5.29 | ||
|
Unavailable |
|||
|
#300
Wheel Hub
705503257
|
$101.49 | ||
|
Available to order. Add to View Price |
|||
|
#305
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#320
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#325
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#330
Hex. Flange Castellated Nut M18
232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#335
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#340
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
