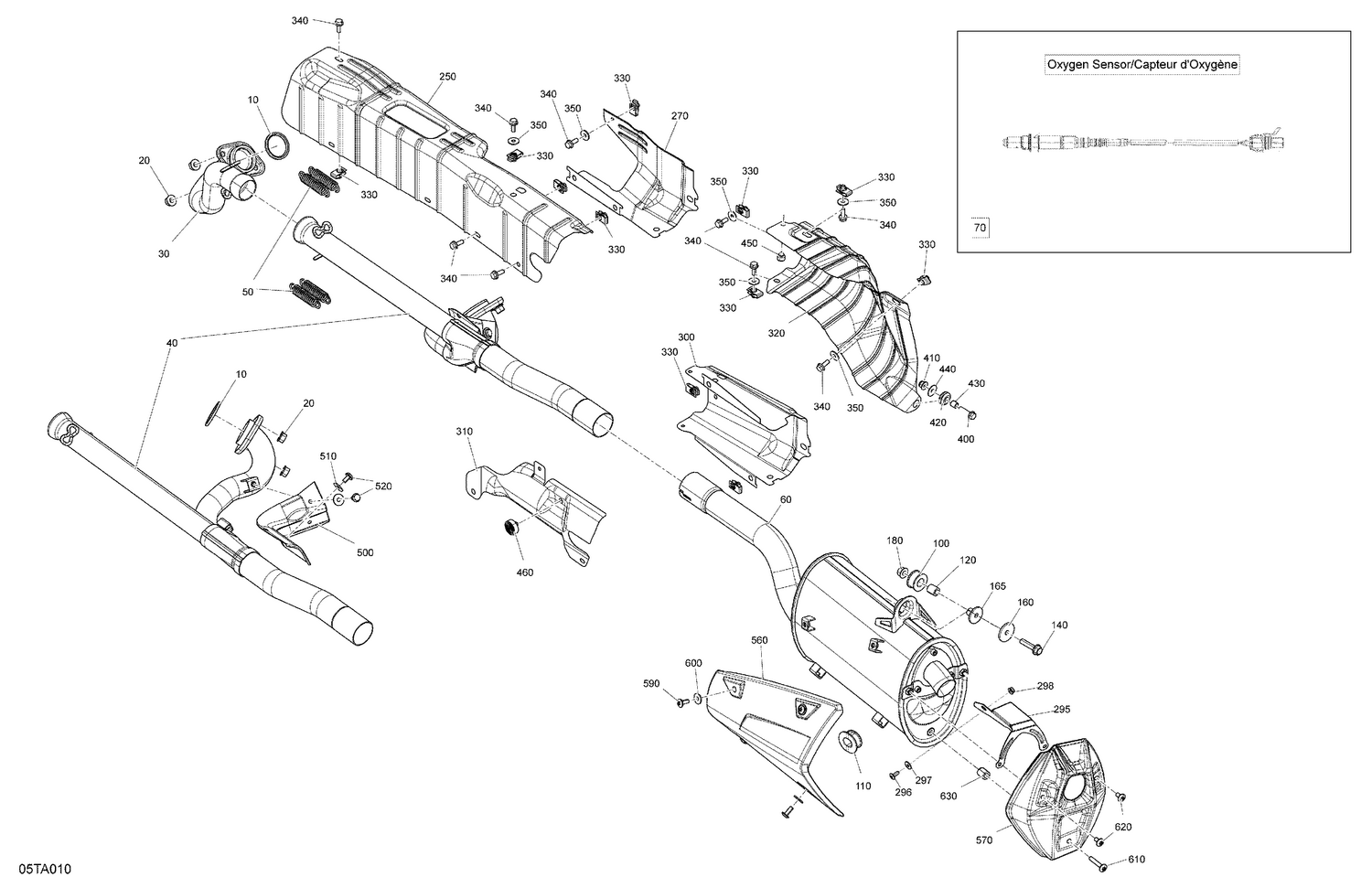

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Gasket
707600317
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Front Head Pipe
707600627
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Rear Head Pipe
707601456
|
$206.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spring
415107100
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Muffler
707603045
|
$847.49 | ||
|
Available to order. Add to View Price |
|||
|
#60a
Spark Arrester
707601803
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#60b
Gasket
707601799
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#60c
Socket Head Screw M6 X 20
205062060
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#60d
Muffler End Piece
715900143
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#60e
Support
715900147
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#70
Oxygen Sensor
707600872
|
$149.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Vibration Damper
707602775
Superseded by 707603323
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#110
Rubber
707600448
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#120
Spacer Bushing
293900116
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M8 X 35
207683544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#160
Flat Washer M8
250200158
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#165
Spacer Bushing
293900140
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#180
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#250
Heat Shield
707602862
Superseded by 707603724
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Protector
707601484
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#295
Heat Deflector
707002766
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#296
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#297
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#298
Hex. Flange Nut M6
233061414
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Protector
707601485
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#310
Heat Shield
707602604
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Protector
707601425
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#330
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#340
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#400
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#410
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Flat Washer
224060201
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#450
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#460
Rubber Stopper
708000506
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#500
Pipe Protector
707600932
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#510
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#520
Hex. Flange Screw M6 X 12 S.Grip
250001090
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Heat Deflector
707600710
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#570
Heat Shield End Cap
707601255
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#590
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
Unavailable |
|||
|
#600
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#610
Torx Screw M6 X 35
250000541
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#620
Torx Truss Screw M6 X 12
250000767
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#630
Bushing
293900106
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
