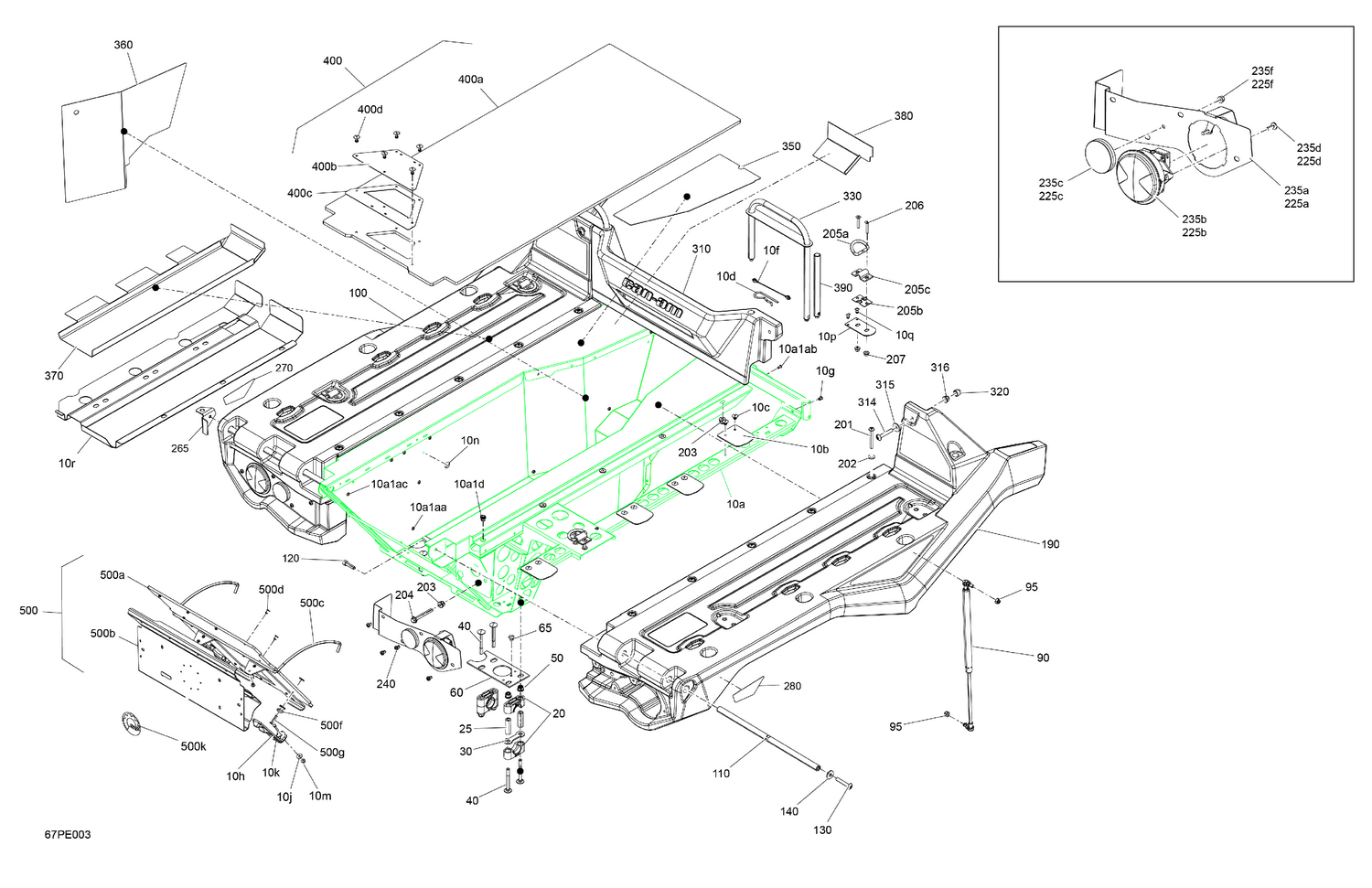

07- Body - Cargo Platform Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10a
Platform
708303452
|
|||
|
Unavailable |
|||
|
#10a1d
Clinch Nut Hexsert M8
605636002
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#10a1aa
Avex Rivet
390909200
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#10a1ab
Avex Rivet
390909100
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#10a1ac
Avex Rivet
390909200
|
$0.30 | ||
|
Unavailable |
|||
|
#10b
Linq Hole Filler
708301095
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10d
Cotter Spring
505073670
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#10f
Retainer Cable
293750069
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10g
Stavex Rivet
293150144
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#10h
Hood Latch
5342952
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#10j
Flat Washer
234052450
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10k
Hex.Flange Screw M5 X 20
207652044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10m
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10n
Black, Dart
414644300
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#10p
Lashing Rings Support
705203824
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#10q
Avex Rivet
390909100
|
$0.30 | ||
|
Unavailable |
|||
|
#10r
Upper Heat Shield Wide
707601725
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Housing Half
506150400
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
Housing Bushing
506150500
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Stopper Plate
506150600
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Carriage Bolt M8 X 70
207787044
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#50
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Cargo Box Hinges Reinforcement Plate
705203836
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
Unavailable |
|||
|
#90
Cargo Box Gas Shock
708301058
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Black, LH Side Platform
715005138
|
$679.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hinge Axis
708300935
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Socket Head Screw M8 X 30
205083044
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
Torx Truss Screw M8 X 50
250000761
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#140
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#190
Deep Black, RH Decal Kit
715007995
|
$559.99 | ||
|
Available to order. Add to View Price |
|||
|
#201
Torx Truss M/S M8 X 40
205484056
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#202
Washer
503192494
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#203
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#204
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#205a
D-Ring
708302990
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#205b
Tie-Down Ring Spring
708302991
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#205c
Tie-Down Ring Bracket
708302992
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#206
Socket Screw M6 X 35
250001078
|
|||
|
Unavailable |
|||
|
#207
Hex. Flange Nut M6
233061414
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#225a
LH Tail Light Plate
708301274
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#225b
Tail Light Ass'y
710001645
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#225c
Red, Reflector
705016982
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#225d
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#225f
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Unavailable |
|||
|
#235a
RH Tail Light Plate
708301275
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#235b
Tail Light Ass'y
710001645
|
$84.99 | ||
|
Unavailable |
|||
|
#235c
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#235d
Red, Reflector
705016982
|
$14.99 | ||
|
Unavailable |
|||
|
#235f
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Unavailable |
|||
|
#240
Torx Truss Screw M6 X 12
250000767
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#265
Flag Pole Bracket
708301639
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#270
Red. LH Reflector Decal
708301617
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#280
Red, RH Reflector Decal
708301618
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#310
Black, Front Panel Max
715006177
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#314
Torx Truss Screw M8 X 50
250000761
|
$7.69 | ||
|
Unavailable |
|||
|
#315
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Unavailable |
|||
|
#316
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#320
Cover
28056
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Locking Handle Weld
708300939
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Bed Heat Shield On Top
708301336
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#360
Bed Heat Shield On Side
708301337
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#370
Side Heat Shield
708301338
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#380
Heat Shield
708302168
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Transport Support
708302018
|
|||
|
Unavailable |
|||
|
#400
Middle Deck Ass'y
715002810
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#400a
Middle Deck
708300959
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#400b
Filler Plate
708301262
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#400c
Handle Plate
708301263
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#400d
Black, Ornit Rivet 3/16 X ,675
293150308
Superseded by 293150308
|
$1.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Deep Black, Lower Tailgate Panel Ass'y
715008584
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#500a
Lower Tailgate Inner
708303364
|
|||
|
Unavailable |
|||
|
#500b
Register Plate Support
708303416
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#500c
Limiter Rail
708301213
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#500d
Avex Rivet
390909100
|
$0.30 | ||
|
Unavailable |
|||
|
#500f
Counter Roller
605449087
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#500g
Rivet
293150212
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#500k
BRP Logo 68 mm
219902672
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
