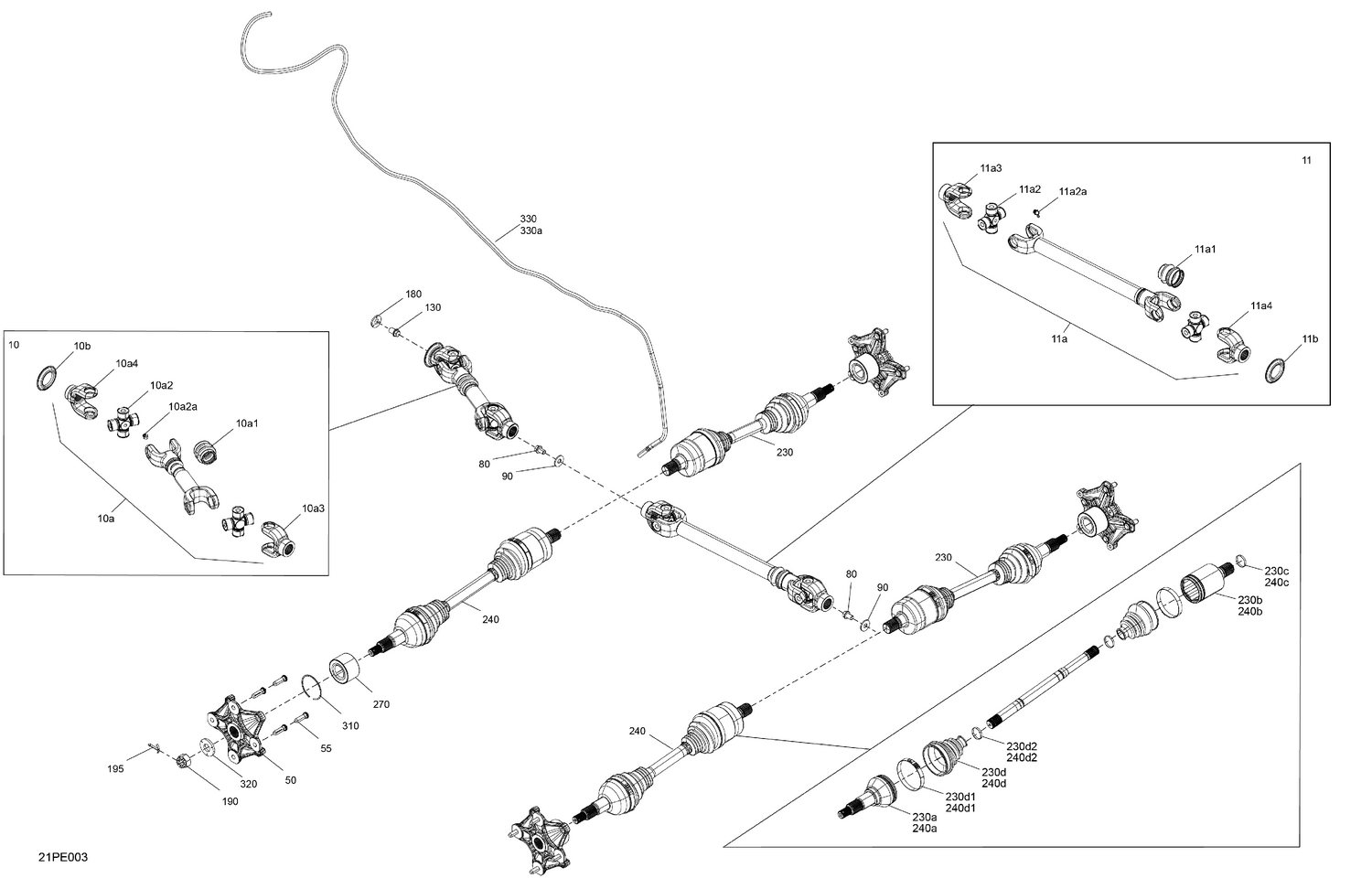

04- Drive - Rear - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Shaft Ass'y Kit
703500989
|
$206.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Shaft Ass'y Kit
703500989
|
$206.49 | ||
|
Unavailable |
|||
|
#10a1
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#10a2
Universal Joint Ass'y
703500846
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a2a
Grease Fitting
715900295
|
$5.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10a3
Yoke
715900499
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a4
Joint
715900436
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
Shaft Ass'y Kit
703501084
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#11a
Shaft Ass'y Kit
703501084
|
$259.49 | ||
|
Unavailable |
|||
|
#11a1
Rubber Boot
715900118
|
$14.30 | ||
|
Unavailable |
|||
|
#11a2
Universal Joint
715900326
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11a2a
Grease Fitting
715900295
|
$5.24 | ||
|
Unavailable |
|||
|
#11a3
Yoke
715900499
|
$24.99 | ||
|
Unavailable |
|||
|
#11a4
Yoke
715900500
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11b
Protector
705501123
|
$7.55 | ||
|
Unavailable |
|||
|
#50
Wheel Hub
705503257
|
$101.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
|
$2.19 | ||
|
Unavailable |
|||
|
#90
Flat Washer M10
250200014
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
Flat Washer M10
250200014
|
$1.49 | ||
|
Unavailable |
|||
|
#130
Hex Flange Screw M12 X 16
250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Castellated Nut M18
232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#195
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#230
RH CV Joint
705502711
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#230a
JOINT_CV EXT - Call your local BRP dealership
705501776
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#230b
PLUNGING JOINT - Call your local BRP dealership
705501780
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#230c
Circlip
705501781
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#230d
Boot Kit
705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#230d1
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#230d2
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
LH CV Joint
705502710
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#240a
JOINT_CV EXT - Call your local BRP dealership
705501776
|
$259.49 | ||
|
Unavailable |
|||
|
#240b
PLUNGING JOINT - Call your local BRP dealership
705501780
|
$114.99 | ||
|
Unavailable |
|||
|
#240c
Circlip
705501781
|
$6.50 | ||
|
Unavailable |
|||
|
#240d
Boot Kit
705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#240d1
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Unavailable |
|||
|
#240d2
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Unavailable |
|||
|
#270
Ball Bearing
293350150
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#320
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#330
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#330a
Polyurethane Hose
293830193
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
